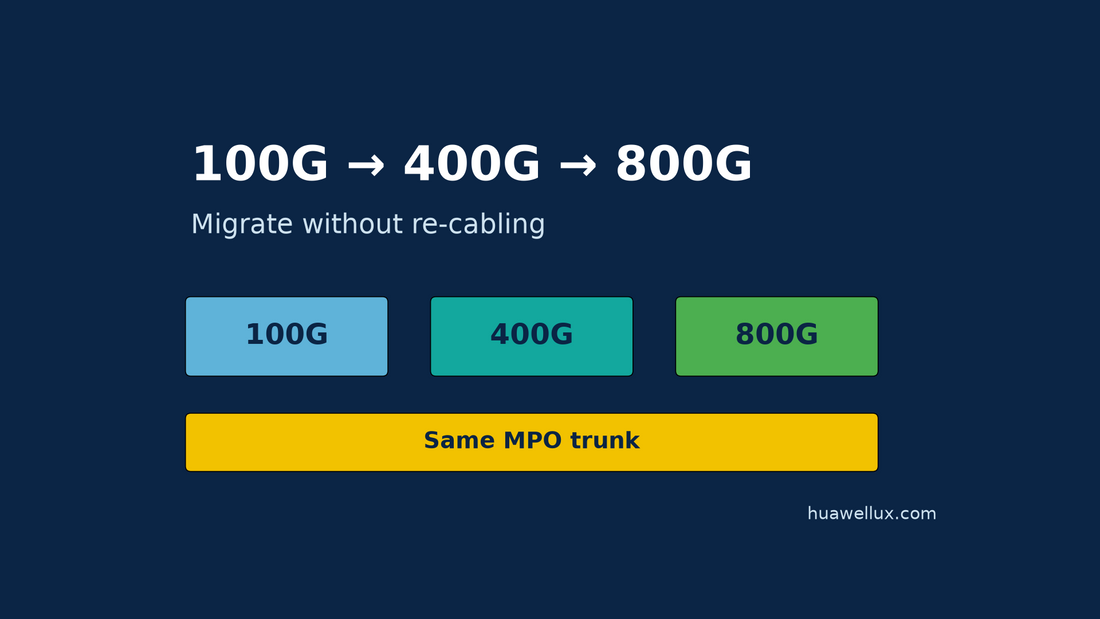

Migration roadmap from 100G to 400G and 800G on existing MPO trunk cabling

Migrating from 100G to 400G/800G Without Re-cabling: A Practical Roadmap

You can usually move from 100G to 400G and 800G without pulling new trunks, if the existing structured cabling uses parallel MPO links. Keep the trunks, panels and cassettes; change the optics, the patch cords and, where needed, a conversion or breakout harness. Before upgrading, check four things: the end face (many 400G and 800G MPO optics require APC), the fiber count per port (8 fibers or 16), the reach on your fiber type (shorter on OM3 at higher speeds), and the channel loss against the new optic's limit.

Re-cabling a data hall is slow, disruptive and expensive. A well-designed MPO backbone is meant to outlive several generations of optics. This roadmap shows what stays, what changes, and the checks that decide whether your plant is ready.

What Stays and What Changes

Layer Keep Change
MPO trunks between rows Yes, if fiber type, count and end face fit Only if APC is required on a UPC plant, or reach/loss fails
Panels and enclosures Yes Adapters or cassettes if the connector type changes
Cassettes (MPO to LC) For duplex optics Replace with MPO adapter panels for parallel optics
Patch cords and harnesses Rarely New cords for new connector, gender, polarity or end face
Optics No Upgrade to 400G or 800G modules

The principle: the trunk is the long-life asset; the equipment cords are the adapter between it and each generation of optics. See trunk vs patch cable.

Step 1: Audit the Existing Plant

Collect for every link:

  • Fiber type: OM3, OM4, OM5 or OS2. See OS2 vs OM3 vs OM4 vs OM5.
  • Trunk build: Base-8, Base-12 or Base-16, and fiber count. See Base-8 vs Base-12 vs Base-16.
  • End face: UPC or APC on every MPO.
  • Polarity method and gender at each end.
  • Length and measured loss of each channel, from the original test reports.

Step 2: Match Each Path to an Upgrade

Single-mode DR path: 100G → 400G → 800G

This is the easiest path to upgrade in place:

  • 100G today: 100GBASE-DR over a duplex LC pair, up to 500 m.
  • 400G: a 400G DR4 module uses an MPO-12 APC connector with 4 fiber pairs, up to 500 m. It can also run as 4×100G breakout to 100G DR modules, so new 400G spines can serve existing 100G leaves over an MPO-to-LC harness.
  • 800G: an 800G DR8 module with dual MPO-12 APC ports uses two 8-fiber MPO-12 links, up to 500 m. It also supports 2×400G DR4, 4×200G DR2 and 8×100G DR1 breakouts.

So a Base-8 or Base-12 single-mode APC trunk that carries 400G DR4 today can carry 800G DR8 tomorrow: one 800G port takes two of the 8-fiber links. A module with an MPO-16 APC port instead needs an MPO-16 to 2× MPO-12 cord. See 800G MPO-16 link design and 400G/800G breakout cabling.

Multimode SR path: 100G SR4 → 400G → 800G

  • 100G SR4 uses 8 fibers of an MPO-12, up to 100 m on OM4.
  • 400G: 400GBASE-SR4 runs 4 lanes over parallel OM4 for 100 m, and 400GBASE-VR4 for 50 m, both over 4 fiber pairs, the same 8-fiber layout as 100G SR4. 400G SR8 uses 16 fibers on an MPO-16.
  • 800G: 800G SR8 and VR8 use 16 fibers; some modules have one MPO-16 APC port, others dual MPO-12 APC.

The 4-lane 400G optics fit an existing 8-fiber SR4 plant. 8-lane optics need 16 fibers per port: on a Base-12 or Base-8 plant, use two 8-fiber links per port (dual MPO-12 modules) or a 2× MPO-12 to MPO-16 cord.

Migration timeline: 100G, 400G, 800G on the same trunk with changing cords and optics

Step 3: Check the End Face

This is the most common surprise. Many 400G and 800G MPO optics require APC: for example, one vendor's 800G VR8 and DR8 modules all require patch cords with APC MPO connectors, including the multimode VR8. 400G DR4 and 800G DR8 single-mode interfaces are MPO-12 APC or MPO-16 APC.

  • Single-mode plants with APC trunks are ready.
  • Multimode UPC plants (typical for 40G and 100G SR4) may need APC equipment cords and, where an APC optic must mate across the panel, APC trunks. Check the optic datasheet before ordering.

Never mate APC with UPC. See APC vs UPC MPO connectors.

Step 4: Check Reach and Loss

Higher speeds allow less loss and shorter reach on older fiber. IEEE channel insertion loss limits:

Application Fiber Max reach Max channel loss
100GBASE-SR4 OM4 100 m 1.9 dB
400GBASE-SR8 OM4 / OM3 100 m / 70 m 1.9 dB / 1.8 dB
800GBASE-SR8 OM4 / OM3 100 m / 60 m 1.8 dB / 1.7 dB
800GBASE-DR8 OS2 500 m 3.0 dB

What this means for migration:

  • OM3 links longer than 60 m that run 100G today will not support 800G SR8.
  • Multimode channels with several mated pairs that measured close to 1.9 dB may fail 800G SR8 at 1.8 dB.
  • Single-mode has more room: 3.0 dB for 800G DR8.

Compare each channel's measured loss with the new limit. See MPO insertion loss budget and the transceiver cabling map.

Step 5: Fix the Fiber Count Mismatch

Plant New optic Fix
Base-12 trunk, 8F ports 400G DR4 / SR4 None, or a conversion harness to light the 4 idle fibers per leg
Base-8 / Base-12, 8F legs 800G dual MPO-12 Two 8F links per 800G port
Base-8 / Base-12 800G MPO-16 port 2× MPO-12 to MPO-16 cord
Duplex LC cassettes Parallel MPO optics Swap cassettes for MPO adapter panels

See MTP-12 to 3x MTP-4 conversion harness, MPO fiber count guide and what is an MTP-LC cassette.

Step 6: Recheck Polarity and Gender

New cords can change the channel polarity. Every channel still needs transmit meeting receive. Module MPO ports are pinned, so the cord end at the module is female. When you replace cassettes with MPO adapter panels, the polarity of the cassette is removed from the channel and must be provided by the cords. See MPO polarity Type A, B, C and male vs female MPO.

A Worked Example

A pod runs 100G DR leaves to 100G spines over a single-mode Base-12 MPO-12 APC trunk with MPO-to-LC cassettes at each end.

  1. Phase 1 – 400G spines, 100G leaves: install 400G DR4 spine optics. At the spine end, replace the cassettes with MPO adapter panels; at the leaf end, keep the cassettes so the four 100G DR leaves are still served on duplex LC. Trunk untouched.
  2. Phase 2 – 400G leaves: replace the leaf-end cassettes with MPO panels and use MPO-12 APC cords to 400G DR4 leaves. Trunk untouched.
  3. Phase 3 – 800G spines: install dual MPO-12 800G DR8 optics; each takes two 8F links, or breaks out to 2×400G DR4 leaves. Trunk untouched.

Three generations, one trunk. Clean and inspect every MPO at each change.

Common Migration Mistakes

  • Assuming UPC multimode trunks accept APC optics. Check the datasheet; plan APC cords or trunks.
  • Skipping the loss check. A channel that passed at 1.9 dB may not pass at 1.8 dB.
  • Forgetting OM3 reach drops to 60 m at 800G SR8.
  • Leaving cassettes in parallel-optic paths. They add loss and convert to duplex LC.
  • Not re-documenting polarity after swapping cords and panels.

Huawellux Migration Assemblies

  • MPO-12/MTP-12 trunk cables in 48, 96 and 144 fibers, 5 m to 25 m, to extend or add capacity on the same standard.
  • MPO/MTP patch cables in 8, 12, 16 and 24 fibers, OS2, OM4 and OM5, UPC or APC, male or female, 1 m to 5 m.
  • MPO/MTP to LC harnesses and MTP-12 to 2×/3× MTP-4 harnesses for breakout and conversion.
  • Made to order: 2× MPO-12 to MPO-16 conversion cords, MPO-16 assemblies and custom polarity or length.

Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.

Frequently Asked Questions

Can I upgrade from 100G to 400G without new cabling?

Usually yes, on parallel MPO plants. 400G DR4 and 400G SR4/VR4 use 8 fibers, like 100G SR4. Check end face, reach and loss first.

Do 800G optics need new trunks?

Not if fiber type, end face and loss fit. Dual MPO-12 800G modules use two 8-fiber links; MPO-16 modules need a 2× MPO-12 to MPO-16 cord on Base-8/12 plants.

Why does my 400G or 800G optic need APC?

Many 400G and 800G MPO optics, including some multimode ones, require APC connectors. UPC plants need APC cords and possibly APC trunks.

Will my OM3 cabling support 800G?

Only up to 60 m for 800GBASE-SR8, with a 1.7 dB channel loss limit. Longer OM3 links need OM4, OM5 or single-mode.

Should I keep MPO-to-LC cassettes?

Keep them where duplex optics such as 100G DR remain. Replace them with MPO adapter panels for parallel 400G and 800G optics.

Plan Your Migration

Huawellux manufactures MPO and MTP® assemblies at our factory in Shenzhen, with genuine US Conec MTP® or standard MPO connectors, in OS2, OM3, OM4 and OM5. Browse trunk cables, MPO patch cables, breakout harness cables and fiber management enclosures.

Huawellux replies to inquiries within 24 hours. Custom orders typically take 1–5 business days to complete production, with final timing confirmed case by case in the quotation. For special/custom requirements, MOQ is 2 km of fiber length. Standard listed patch cords have no formal MOQ. The sample fee is credited against the bulk order.
