Male vs Female MPO Connectors: Pinned vs Unpinned Explained
A male MPO connector is "pinned": it has two metal guide pins on the ferrule face. A female MPO connector is "unpinned": it has two matching guide holes. Every MPO connection must be one male to one female. Transceiver ports are pinned, so equipment cords are female. Gender is separate from polarity, so always specify both, for each end.
That one rule causes a surprising number of failed installs: a trunk arrives, the cassette has the same gender, and nothing plugs in. This guide explains what the pins actually do, where each gender usually sits in a data center link, what goes wrong when two of the same gender meet, how gender can (and cannot) be changed, and how to write an order so every end arrives right. If you are new to multi-fiber connectors, start with our beginner's guide to MTP/MPO cables.
What "Male" and "Female" Mean on an MPO Connector
An MPO connector holds an MT ferrule: a small rectangular ferrule with 8, 12, 16, 24 or more fibers in a row (or rows), plus two precision holes, one on each side of the fiber array.

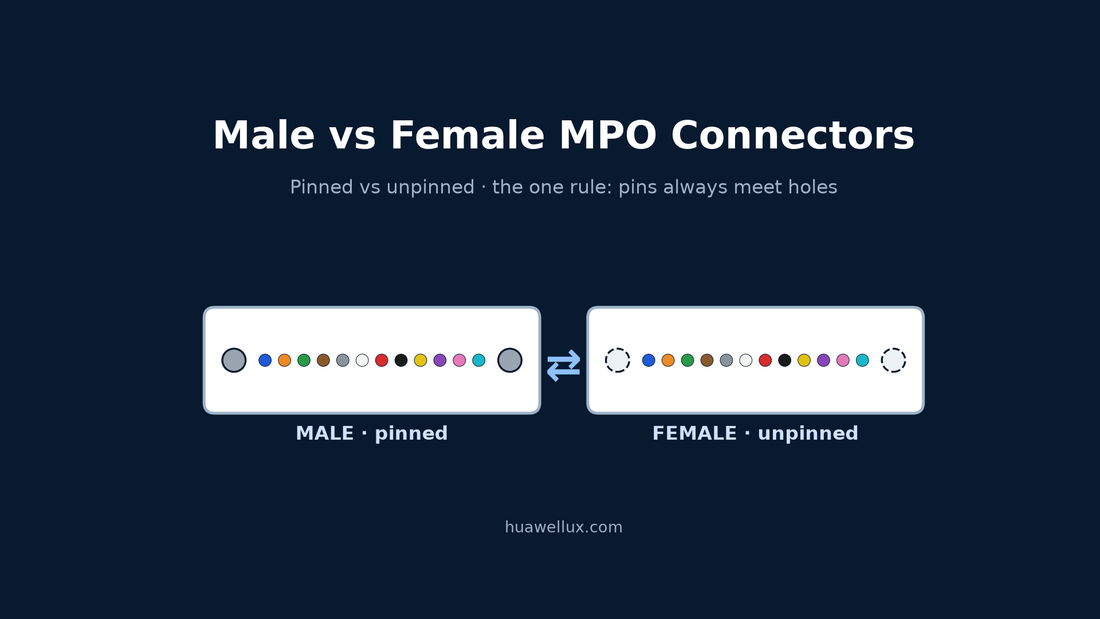

- A male (pinned) connector has two metal guide pins fitted into those holes, sticking out of the ferrule face.
- A female (unpinned) connector leaves the two guide holes open to receive another connector's pins.
The pins are not a cosmetic detail. As US Conec explains for the MT ferrule, fiber alignment depends on the precise position of the fibers relative to the pin holes, and alignment is dictated by the guide pins during mating. When a male connector meets a female one inside an adapter, the pins slide into the holes and bring dozens of fiber cores into line at once. The adapter and the connector's key take care of orientation; the pins take care of precision.
"Male/female" and "pinned/unpinned" mean exactly the same thing. Many engineers prefer pinned/unpinned on purchase orders, because nobody has to guess what "male" refers to.
The One Rule: Pinned Always Meets Unpinned
Every mated MPO pair must have exactly one pinned and one unpinned connector:
| Mating | Result |
|---|---|
| Male (pinned) + Female (unpinned) | ✅ Correct: pins guide the ferrules into alignment |
| Male + Male | ❌ Pin meets pin: the ferrules cannot come together, and forcing it risks damaging pins and end faces |
| Female + Female | ❌ No pins: nothing aligns the fiber arrays, so the link is not a valid connection |
This applies at every mating point in a link: the transceiver port, the patch panel or cassette adapter, and any adapter that joins two cables. A through adapter itself has no gender; it simply holds one connector from each side, so one of those two connectors must be pinned and the other unpinned.
The rule is identical for MTP® and generic MPO connectors, and for 8, 12, 16 and 24-fiber versions. (The difference between MTP® and MPO is about construction, not gender.)
Where Each Gender Usually Goes
Because pins must meet holes, a whole link is planned so the genders alternate. Two points are fixed by the equipment, and the rest follow.
Transceivers are pinned. The MPO receptacle on parallel-optic transceivers (for example 40G and 100G SR4, and 400G SR8, which uses MPO-16) has guide pins inside it. Equipment vendors therefore specify female (unpinned) cords to plug into them. Never plug a male cord into a transceiver: pin meets pin, and you risk damage to an expensive port.
Cassettes are commonly pinned at the rear. In the most common structured-cabling convention, MPO-to-LC cassettes and adapter panels carry pinned (male) rear connectors, and the trunk cables are unpinned (female) on both ends. That keeps every trunk the same and every cassette the same, which makes spares and moves simpler.
But conventions vary. Some manufacturers and some project designs reverse this, with pinned trunks and unpinned modules, or mixed-gender trunks for specific routes. There is no single answer for "what gender is a trunk": check the datasheet of the cassette, panel or transceiver your cable will plug into.
A typical layout, from switch to switch:
| Point in the link | Typical gender |
|---|---|
| Transceiver MPO port | Male (pinned) |
| Equipment / patch cord into the transceiver | Female (unpinned) |
| Cassette or panel rear connector | Male (pinned), in the common convention |
| MPO trunk cable (both ends) | Female (unpinned), in the common convention |
| Two trunks joined through an adapter | One male, one female |
If an MPO cord runs straight from a transceiver to a panel adapter, its two ends can need different genders, for example female at the switch and male at the panel. These female-to-male cords are normal. For how trunks and patch cords divide the work, see our guide to MTP/MPO trunk vs patch cables.
Gender Is Not Polarity (or Key, or Polish)
A frequent mistake is to treat gender as if it settled everything else. It does not. An MPO end is defined by several independent choices, and all of them must match:
- Gender: pinned or unpinned, per end.
- Polarity: Type A, B or C fiber mapping (TIA-568.3-D), which decides whether transmit reaches receive. See our MPO polarity guide with wiring diagrams.
- Key orientation and adapter: key-up/key-down or key-up/key-up adapters.
- Fiber count and format: MPO-12 and MPO-24 share an interface; MPO-16 (TIA-604-18) has an offset key and a different guide-pin design, so it does not mate with MPO-12/24.
- Polish: multimode is normally flat (PC); single-mode is normally APC 8°. Flat and angled connectors must never be mated.
A cord can have the right gender and still fail because of polarity, or have the right polarity and fail because both ends are pinned. Treat them as separate lines on every order.
Can You Change the Gender of an MPO Connector?
Sometimes, depending on the connector design.
- MTP® connectors (US Conec) have a removable housing. US Conec states this allows the gender to be changed after assembly or even in the field, by adding or removing pins.
- Some other connector designs on the market also offer gender change, in a few cases without tools.
- Many generic MPO connectors are not designed for it. Their pins are fixed during assembly and the connector is not meant to be opened in the field.
Even where it is possible, re-gendering in the field takes the right tool, clean conditions and an inspection afterwards. For a project, it is usually faster and safer to order the correct gender or keep a few spare cords of the opposite gender than to convert connectors on site.
Handling Male Connectors and Guide Holes
The pins and holes are precision parts, so a little care pays off:
- Keep dust caps on until the moment of mating. Exposed pins can be bent or contaminated, and open guide holes collect debris.
- Inspect and clean before every mating. US Conec notes that skipping this can cause fiber damage, ferrule damage and debris build-up inside the guide pin holes, all of which affect performance. Dry cleaning tools for MT ferrules are made for both male and female connectors.
- Never force a connection. If an MPO will not seat, check gender, key and fiber count before pushing harder.
- Match your test cords. Test equipment ports and reference cords also have a gender, so plan the reference cords to suit the port and the cable under test.
How to Specify MPO Gender When You Order
Write the gender for each end, next to the other parameters, so nothing is left to assumption:
| Field | Example |
|---|---|
| Connector / fiber count | MPO-12, 12F |
| End A gender | Female (unpinned) |
| End B gender | Female (unpinned) |
| Polarity | Type B |
| Fiber type and polish | OM4, flat (PC) |
| Length and labels | 30 m, label "A/B" each end |
Before ordering, a quick checklist:
- What will each end plug into: transceiver, cassette, panel adapter or another cable?
- What is the gender of that port or connector? Check its datasheet rather than assuming.
- Choose the opposite gender for the cable end.
- Confirm polarity, key, fiber count and polish separately.
- Use a cable estimator to work out lengths and quantities for the whole run.
Related reading: gender is one field of the MTP/MPO patch cable ordering checklist.
Troubleshooting: gender is step 2 of the field check in MPO polarity troubleshooting.
Frequently Asked Questions
What is the difference between male and female MPO connectors?
A male (pinned) MPO connector has two guide pins on the ferrule face; a female (unpinned) connector has two guide holes. The pins enter the holes during mating and align all the fibers. A link always mates one male with one female.
Can you connect two female MPO connectors?
No. With no guide pins, nothing aligns the two fiber arrays, so female-to-female is not a valid connection. Two male connectors cannot mate either, because the pins block each other. Use one pinned and one unpinned connector at every mating point.
What gender MPO cable goes into a transceiver?
Female (unpinned). Parallel-optic transceivers such as 40G/100G SR4 and 400G SR8 have guide pins in their MPO port, so the cord that plugs into them must be unpinned.
Are MPO trunk cables male or female?
In the most common convention, trunks are female (unpinned) on both ends and plug into pinned cassettes or panels. Some systems use the opposite, so check the gender of the cassette or panel your trunk will connect to before ordering.
Can I change an MPO connector from male to female?
Only if the connector is designed for it. MTP® connectors have a removable housing that allows gender change after assembly. Many generic MPO connectors have fixed pins, so ordering the correct gender is usually the safer option.
