APC vs UPC (and PC) Polish for MPO/MTP and LC/SC Connectors

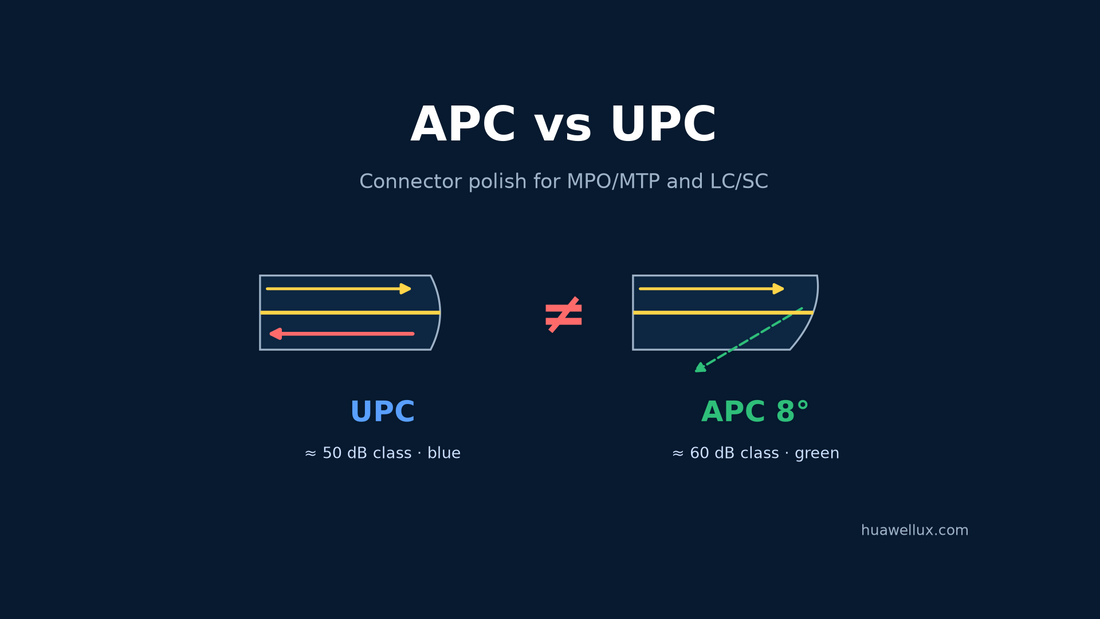

APC and UPC are two end-face polishes. UPC (and older PC) is domed but not angled, so a small part of the light reflects straight back. APC is angled at 8°, so reflections leave the core and return loss is much higher. Single-mode MPO is normally APC; multimode MPO is normally flat. Never mate APC with UPC.
Polish is one of the six or seven lines on every fiber connector specification, next to fiber type, gender, polarity and length. It is easy to overlook, and a mismatch is one of the few mistakes that can both fail a link and damage the connectors. This guide explains what PC, UPC and APC mean, what return loss is, why MPO/MTP connectors follow different rules from LC and SC, and how to specify the right polish. If you are new to MPO, start with what an MTP/MPO cable is.
What Connector "Polish" Means
When two connectors mate, the fiber cores have to touch. Any air gap between them creates a glass–air–glass boundary, and some light reflects back toward the transmitter. Connector polishing shapes the ferrule end face so the cores meet in physical contact (PC).
- PC (physical contact): the end face is polished to a slight dome so the cores touch at the top of the curve. It removed the air gap of early flat connectors.
- UPC (ultra physical contact): the same non-angled dome, finished with a finer polishing process for a smoother surface and lower back reflection. Today most non-angled connectors are sold as UPC.
- APC (angled physical contact): the dome is polished at an 8° angle. Light that still reflects at the joint hits an angled surface and leaves the core into the cladding instead of travelling back to the source.
The international standards describe the interfaces, not the marketing names. IEC 61755-3-1 covers non-angled PC single-mode interfaces on 2.5 mm and 1.25 mm ferrules (SC, LC and similar). IEC 61755-3-2 covers the 8° angled version of the same ferrules, and IEC 61755-3-31 covers 8° angled single-mode rectangular ferrules, the MT ferrule family used in MPO connectors. "UPC" is a quality class of a PC interface, not a separate standard.
Return Loss: The Number Behind the Polish
Return loss (RL) compares the light sent into a connection with the light reflected back from it, in decibels. A higher number means less reflection. Reflectance is the same quantity with a negative sign, so an RL of 50 dB equals a reflectance of −50 dB.
| Return loss | Light reflected back | Typical context |
|---|---|---|
| < 15 dB | about 3–4% | Air gap: dirty, damaged or mismatched end faces |
| 20 dB | 1% | TIA-568.3-D minimum for multimode |
| 35 dB | about 0.03% | TIA-568.3-D minimum for single-mode |
| 50 dB | 0.001% | Common datasheet class for single-mode UPC |
| 60 dB | 0.0001% | Common datasheet class for single-mode APC |
Why does reflected light matter? Single-mode lasers are sensitive to light coming back into the cavity, and reflections between two connectors can bounce back and forth and add noise. Modern 100G-per-lane optics use PAM4 signalling, which has smaller steps between signal levels and less tolerance for that noise. Analog RF video over fiber is the most sensitive of all, which is why TIA-568.3-D sets a separate 55 dB minimum for single-mode broadband analog video (CATV).
PC vs UPC vs APC at a Glance
| PC | UPC | APC | |
|---|---|---|---|
| End-face geometry | Domed, not angled | Domed, not angled, finer finish | Domed, angled 8° |
| Where reflected light goes | Back down the core | Back down the core (less of it) | Into the cladding |
| Typical datasheet RL, single-mode | Lower than UPC (legacy) | About 50 dB class | About 60 dB class |
| Typical connector colour | Blue (SM) / beige, aqua (MM) | Blue (SM) / aqua (MM) | Green |
| Mates with | PC, UPC | PC, UPC | APC only |
| Typical use | Legacy and multimode | Data-centre duplex SM, multimode | MPO single-mode, FTTH/PON, RF video, long-haul |
Datasheet values are typical classes, not standard requirements. Always compare the guaranteed minimum on the specific product datasheet with the standard and with your transceiver's reflectance limit.
LC and SC Connectors: Blue or Green
For duplex LC and SC, both polishes are common in single-mode:
- UPC (blue) is widely used for duplex single-mode links in data centres and enterprise networks, where transceivers tolerate the reflection of a clean UPC connection.
- APC (green) is the norm in FTTH and passive optical networks (PON), RF over fiber and video overlays, and many outside plant and test applications. Many single-mode optics accept either; the polish of the port and every cord in the channel must match.
TIA-568.3-D gives the colour convention: blue for single-mode, green for single-mode angled contact connectors, and aqua for OM3/OM4 laser-optimized multimode. Colour is a helpful check, but not a guarantee. Confirm the polish on the label or the order. Browse our standard fiber patch cords in UPC and APC.
MPO/MTP Connectors: Flat Multimode, APC 8° Single-Mode
MPO follows a stricter rule than LC and SC, because 8 to 24 fibers in one ferrule all have to make contact at the same time.
Single-mode MPO is APC 8°. Early single-mode MPO applications in telecom central offices needed very low reflection, so single-mode MPO connectors became an APC-only product by industry practice. Single-mode parallel optics such as 400G DR4 and 800G DR8 use APC MPO ports, and single-mode MPO trunks and cords are built to match.
Multimode MPO is normally flat polished (PC, often listed as UPC). For years a multimode return loss better than 20 dB was enough, and the flat MPO-12 became the standard for SR4 and multimode trunks. Multimode 8-lane optics are changing this: many MPO-16 ports for 400G and 800G SR8 call for APC multimode connectors. As covered in our Base-8 vs Base-12 vs Base-16 guide, always check the polish on the transceiver datasheet rather than assuming multimode means flat.
Two MPO details depend on polish:
- Adapters. An APC MPO angle points one way relative to the key. Two APC connectors only line up when they meet key-up to key-down, so APC MPO links use Type-A (key-up/key-down) adapters only. Key-up/key-up adapters cannot be used with APC.
- Polarity. Because the adapter cannot flip, polarity in an APC MPO channel is managed in the cords, trunks and cassettes, not by changing adapter type. See our MPO polarity guide.
Polish is independent of gender. Pins and polish are separate lines on the order; see male vs female MPO connectors. It is also independent of brand: MTP® and generic MPO connectors are both offered as flat and APC, as explained in MTP vs MPO.
Can APC and UPC Be Mated?
No. An 8° end face against a non-angled end face leaves the cores touching at an angle with an air gap. Expect high insertion loss and very poor return loss, often below 15 dB, the Fresnel reflection of an open glass surface. The uneven contact can also chip or scratch the end faces, which then damages the next connector they meet.
PC and UPC are both non-angled and do mate, but the connection performs at the level of the weaker end. In an MPO system the rule is the same: flat MPO to flat MPO, APC MPO to APC MPO, through the right adapter.
If a channel must join APC and UPC equipment, for example an APC patch panel and a UPC transceiver port, use a hybrid cord with APC on one end and UPC on the other, never a forced mating in an adapter. For MPO, we build hybrid flat-to-APC assemblies; match each end to the optic or panel it plugs into.
Standards and Testing for Return Loss
- TIA-568.3-D sets the minimum return loss for connections and splices: 20 dB multimode, 35 dB single-mode, 55 dB single-mode broadband analog video. The single-mode figure was raised from 26 dB in earlier editions. Good UPC and APC connectors exceed these minimums by a wide margin; the standard is a floor, not a target.
- IEC 61755-3-x defines the PC and APC optical interfaces (end-face geometry and fiber position) that make connectors from different suppliers intermateable.
- IEC 61300-3-35 defines visual inspection of connector end faces, with criteria for multimode and single-mode, PC and APC polished connectors. For MPO it requires the whole rectangular ferrule surface to be clean, not just the fibers. It also states that inspection does not replace measuring insertion loss and return loss.
In practice, ask for a per-assembly test report with insertion loss and return loss for every fiber, end-face interferometry for MPO ferrules, and inspect and clean before every mating. Dust is the most common reason a good APC connector measures like a bad one. For reference, Huawellux specifies insertion loss ≤0.35 dB and return loss >60 dB for single-mode MPO/MTP® APC and >30 dB for multimode; single-mode LC and SC patch cords are listed at ≥60 dB (APC) and ≥50 dB (UPC). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. A formal test report is provided on request; state it in your RFQ.
How to Specify the Right Polish
- Read the transceiver datasheet. It lists the connector and polish: LC UPC, LC APC, MPO-12 APC, MPO-16 APC and so on.
- Match every element. Patch cords, trunks, cassettes and adapters in one channel use the same polish.
- Single-mode MPO: order APC 8°, Type-A adapters, and plan polarity in the cords. Multimode MPO-12: normally flat. Multimode MPO-16: check, often APC.
- Duplex single-mode: follow the equipment and site standard. Use APC for PON, FTTH, RF and video; UPC is common for data-centre duplex links.
- Write it on the order: for example "MPO-12 female APC 8°, single-mode OS2" and "LC UPC duplex, OS2". Our MPO fiber count guide and trunk vs patch cable guide cover the other lines.
- Ask for RL and IL test data per assembly, and estimate lengths and quantities with our cable estimator.
Related reading: polish quality is measured on an interferometer; see MPO interferometer end-face geometry.
Frequently Asked Questions
What is the difference between APC and UPC?
UPC connectors have a domed end face with no angle, so a small amount of light reflects straight back to the source. APC connectors are polished at an 8° angle, which sends reflected light into the cladding. APC gives higher return loss and is usually green; UPC single-mode is usually blue.
Why is single-mode MPO APC?
Single-mode lasers and PAM4 optics are sensitive to back reflection, and early single-mode MPO applications in telecom needed very low reflection. Single-mode MPO connectors therefore became APC 8° by industry practice, and single-mode parallel optics such as 400G DR4 use APC MPO ports.
Is multimode MPO UPC or APC?
Multimode MPO-12 is normally flat polished (PC, often listed as UPC), because a return loss above 20 dB has been sufficient. Many multimode MPO-16 ports for 400G and 800G SR8 use APC, so check the transceiver datasheet.
Can I connect APC to UPC?
No. Mating an angled and a non-angled end face leaves an air gap, causing high loss, very poor return loss and possible end-face damage. Use matching polishes, or a hybrid APC-to-UPC cord where two pieces of equipment differ.
What return loss does TIA-568.3-D require?
TIA-568.3-D sets minimum return loss of 20 dB for multimode, 35 dB for single-mode and 55 dB for single-mode broadband analog video. Quality UPC and APC connectors are specified well above these minimums on their datasheets.
