MPO Insertion Loss Budget: How to Calculate Channel Loss
An MPO insertion loss budget is the sum of every loss in the channel: fiber length (km) × attenuation (dB/km), plus the number of mated connector pairs × loss per pair, plus splices × loss per splice. The total must be below the maximum channel insertion loss of the application, for example 1.9 dB for 100GBASE-SR4 on OM4 or 3.0 dB for 400GBASE-DR4 on single-mode.
Scope of this guide: calculating a full channel budget. Whether to pay for low-loss connectors is covered in low-loss vs standard MPO.
High-speed parallel optics have small budgets, and inside a data center the connectors, not the fiber length, use most of it. This guide gives the formula, the reference values from TIA-568.3 and IEEE 802.3, two worked examples with a three-connection MPO link, and the design choices that keep you inside the budget.

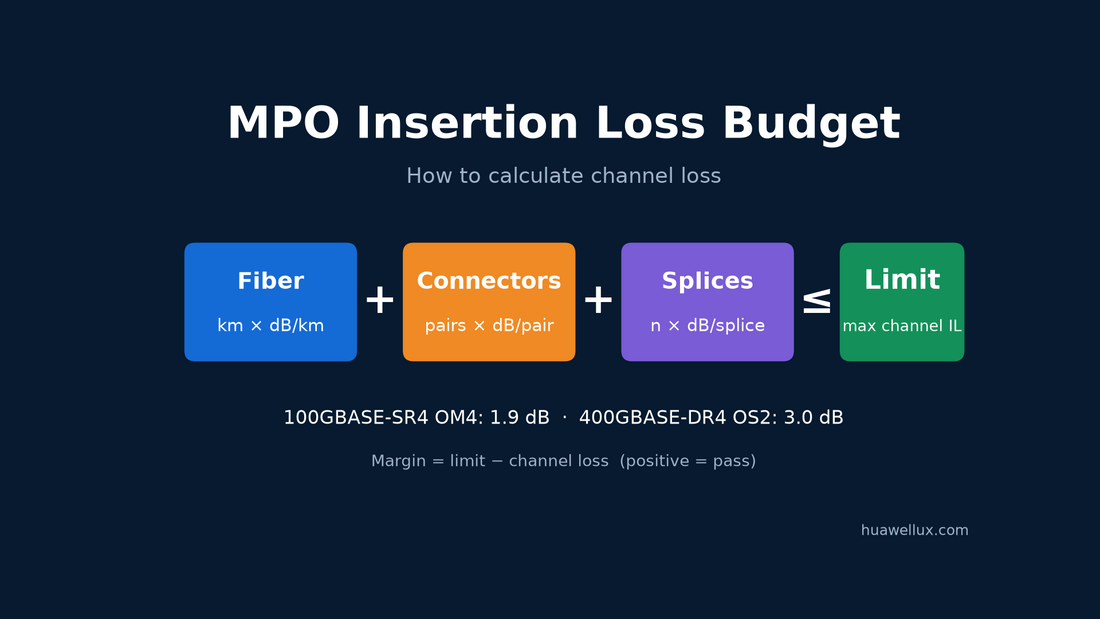

The Formula
Channel loss (dB) = (length km × fiber dB/km)
+ (mated connector pairs × dB per pair)
+ (splices × dB per splice)
Then compare it with the application limit:
Margin (dB) = application max channel IL − channel loss
A positive margin passes. Count the loss at the operating wavelength of the optics: 850 nm for SR multimode links and 1310 nm for DR single-mode links.
What counts as a "mated connector pair"
Every point where two connectors meet in an adapter is one mated pair. The connections into the transceivers at each end are not counted in the IEEE channel; the transmitter and receiver specifications already cover them. In a typical structured link:
- Patch cord → adapter panel → trunk → adapter panel → patch cord = 2 mated pairs.
- Add a cross-connect or a zone patch panel = 3 mated pairs.
- An MPO-LC cassette has two interfaces: the MPO at the back and the LC at the front. Count both.
Reference Values
ANSI/TIA-568.3-D and IEEE 802.3 set the maximum values used for a worst-case budget:
| Component | Maximum | Source |
|---|---|---|
| Mated connector pair | 0.75 dB | TIA-568.3-D |
| Splice (fusion or mechanical) | 0.3 dB | TIA-568.3-D |
| OM3/OM4/OM5 cable @ 850 nm, for IEEE channel calculations | 3.5 dB/km | IEEE 802.3 (e.g. Table 95–13) |
| OM3/OM4/OM5 cable @ 850 nm, cable specification | 3.0 dB/km | TIA-568.3-D |
| Multimode cable @ 1300 nm | 1.5 dB/km | TIA-568.3-D |
| Single-mode, inside plant @ 1310/1550 nm | 1.0 dB/km | TIA-568.3-D |
| Single-mode, indoor-outdoor @ 1310/1550 nm | 0.5 dB/km | TIA-568.3-D |
| Single-mode, outside plant @ 1310/1550 nm | 0.5 dB/km | TIA-568.3-D |
| OS2 cabled fiber @ 1310/1550 nm (for reference) | 0.4 dB/km | ISO/IEC 11801 (not a TIA-568.3-D value) |
The worked examples use the IEEE 3.5 dB/km value, the figure IEEE uses to derive its multimode channel limits, as the conservative case.
IEEE 802.3 sets the maximum channel insertion loss for each application:
| Application | Fiber | Reach | Max channel IL | Connection allocation |
|---|---|---|---|---|
| 100GBASE-SR4 | OM3 | 70 m | 1.8 dB | 1.5 dB |
| 100GBASE-SR4 | OM4 | 100 m | 1.9 dB | 1.5 dB |
| 400GBASE-DR4 | OS2 | 500 m | 3.0 dB | 2.75 dB |
The 1.5 dB allocation for SR4 was designed around two connections of 0.75 dB. A link with more connections than that only fits if each connection loses less, which is why low-loss MPO matters.
Worked Example 1: 100GBASE-SR4 on OM4, Three MPO Connections
A 60 m OM4 link: transceiver → patch cord → panel → trunk → cross-connect → trunk → panel → patch cord → transceiver. That is 3 mated MPO pairs, no splices.
| Item | Standard connectors (0.75 dB) | Low-loss connectors (0.35 dB) |
|---|---|---|
| Fiber: 0.06 km × 3.5 dB/km (IEEE) | 0.21 dB | 0.21 dB |
| Connectors: 3 × pair loss | 2.25 dB | 1.05 dB |
| Splices | 0 | 0 |
| Channel loss | 2.46 dB | 1.26 dB |
| 100GBASE-SR4 OM4 limit | 1.9 dB | 1.9 dB |
| Margin | −0.56 dB (fails) | +0.64 dB (passes) |
With TIA-maximum connectors, the same link fails by more than half a decibel. With connectors at 0.35 dB it passes with margin. The fiber itself is only 0.21 dB; the connectors decide the outcome.
Worked Example 2: 400GBASE-DR4 on OS2, Three MPO Connections
A 300 m single-mode link at 1310 nm with 3 mated APC MPO pairs, using the TIA inside-plant value of 1.0 dB/km for a worst case:
| Item | Standard (0.75 dB) | Low-loss (0.35 dB) |
|---|---|---|
| Fiber: 0.3 km × 1.0 dB/km | 0.30 dB | 0.30 dB |
| Connectors: 3 × pair loss | 2.25 dB | 1.05 dB |
| Channel loss | 2.55 dB | 1.35 dB |
| 400GBASE-DR4 limit | 3.0 dB | 3.0 dB |
| Margin | +0.45 dB | +1.65 dB |
Both pass, but the low-loss link leaves room for a later added patch point, or for a connector that gets dirty. Single-mode MPO for DR optics is normally APC; see APC vs UPC MPO connectors.
How to Stay Inside the Budget
- Count connections first. Inside a building, each mated pair costs far more than the fiber. Remove patch points you do not need.
- Specify connector loss, not just "MPO". Ask for the maximum insertion loss per connection and a test report.
- Use trunks for the permanent run and short patch cables at each end; see trunk vs patch cables.
- Choose the right fiber. OM4 and OM5 reach further than OM3 for SR optics; see OS2 vs OM3 vs OM4 vs OM5.
- Keep end faces clean. One dirty connection can use the whole margin; see how to clean MPO/MTP connectors.
- Test after installation and compare the measured loss with the budget. A result far above the calculated value usually means a dirty or damaged connection.
- Get polarity right, or the link will not work at any loss; see MPO polarity Type A, B and C.
Huawellux Loss Specification
Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.
Applied example: for how 0, 2 or 4 mated pairs change an 800G SR8 or DR8 budget, see MPO cassette vs direct trunk for 800G.
Frequently Asked Questions
How do you calculate an MPO insertion loss budget?
Multiply the fiber length in km by its attenuation in dB/km, add the number of mated connector pairs times the loss per pair, and add the splices times the loss per splice. Compare the total with the application's maximum channel insertion loss; the difference is your margin.
What is the maximum channel loss for 100GBASE-SR4?
IEEE 802.3 allows 1.8 dB on OM3 up to 70 m and 1.9 dB on OM4 up to 100 m, including 1.5 dB for connections and splices.
How much loss does an MPO connection add?
TIA-568.3 allows up to 0.75 dB per mated connector pair. Low-loss MPO and MTP® connectors are specified much lower; Huawellux specifies ≤0.35 dB.
Do the transceiver connections count in the budget?
No. The IEEE channel insertion loss covers the cabling between the two transceiver interfaces. Count every mated pair in patch panels, cassettes and cross-connects in between.
How many MPO connections can a 100G SR4 link have?
It depends on connector loss and length. With 0.75 dB connectors, two connections use the whole 1.5 dB allocation. With 0.35 dB connectors, a 60 m OM4 link with three connections still has about 0.6 dB margin.
