MTP-12 to 3x MTP-4 Conversion Harness: Achieving 100% Fiber Utilization
An MTP® conversion harness regroups the fibers of a 12-fiber trunk so that none are left dark. An 8-fiber parallel optic (SR4, DR4) plugged into a 12-fiber trunk uses 8 fibers and leaves 4 unused, so one third of the trunk is wasted. A conversion harness fixes this by matching fiber groups to ports: MTP-12 to 3× MTP-4 splits 12 fibers into three 4-fiber legs, MTP-12 to 2× MTP-4 splits an 8-fiber connector into two 4-fiber legs, and 2× MTP-12 to 3× MTP-8 turns 24 trunk fibers into three 8-fiber ports. Each design reaches 100% fiber utilization.
Fiber in a trunk is paid for whether it carries light or not. On large builds, a third of the trunk fiber sitting dark adds up to extra trunks, extra panel space and extra cost. This guide explains where the waste comes from, the three conversion designs, the math and how to order.
Where the Unused Fibers Come From
Most parallel optics use 4 lanes, and each lane needs a transmit and a receive fiber. That is 8 fibers, but the connector is a 12-fiber MPO:
- On a 400G DR4 MPO-12 interface, transmit lanes are on fibers 1–4 and receive lanes on fibers 9–12. Fibers 5–8 are unused.
- The same 8-of-12 layout applies to 40G SR4 and 100G SR4 multimode optics.
When a Base-12 trunk (built from 12-fiber MPO connectors) feeds 8-fiber ports one-to-one, 4 of every 12 fibers stay dark: 33% of the trunk is unused and utilization is 67%. See Base-8 vs Base-12 vs Base-16.
Three Conversion Designs
| Harness | Trunk side | Equipment side | Fibers used | Typical use |
|---|---|---|---|---|
| MTP-12 to 3× MTP-4 (12F) | 1× 12-fiber | 3× 4-fiber legs | 12 of 12 | Three 2-lane (4-fiber) interfaces from one Base-12 trunk leg |
| MTP-12 to 2× MTP-4 (8F) | 1× 8-fiber | 2× 4-fiber legs | 8 of 8 | Split one 8-fiber port into two 2-lane links |
| 2× MTP-12 to 3× MTP-8 (24F) | 2× 12-fiber | 3× 8-fiber | 24 of 24 | Three 4-lane SR4/DR4 ports from two Base-12 trunk legs |
A 4-fiber leg carries two lanes (2 transmit and 2 receive fibers). Two-lane interfaces appear in breakout modes: for example, an 800G DR8 module supports 4× 200G DR2 breakout, where each 200G DR2 link uses two fiber pairs, and 400G DR4 modules can interoperate as 200G DR2 links in that mode.
MTP-12 to 3× MTP-4: All 12 Fibers at Work

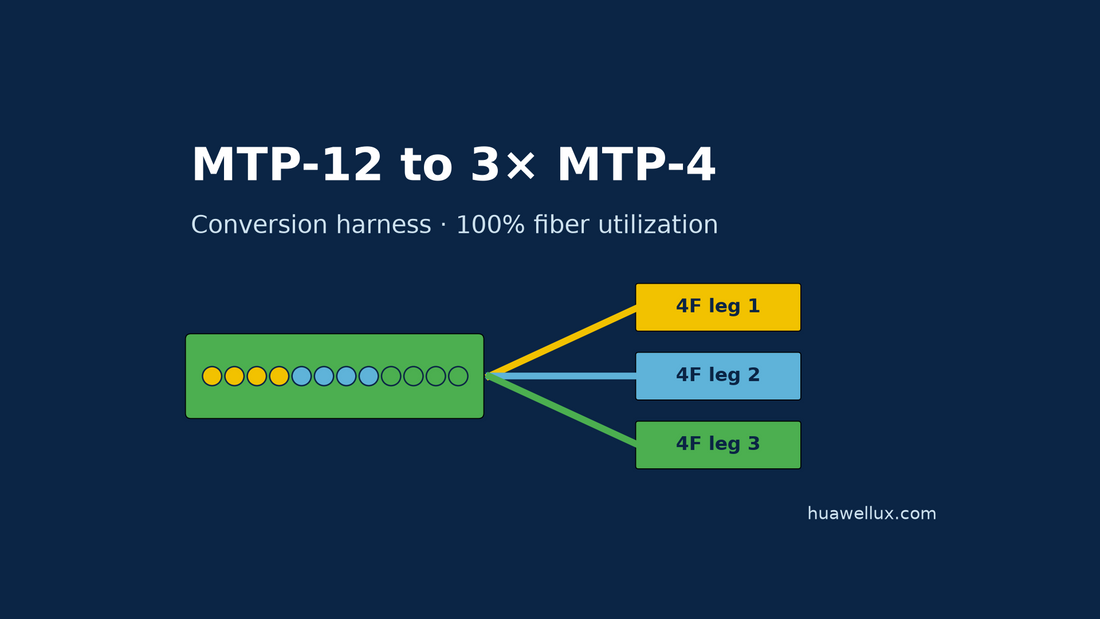

The 12-fiber harness takes one full Base-12 connector at the trunk side and splits it into three 4-fiber legs. Each leg gets two transmit and two receive fibers, so all 12 fibers carry traffic.
Use it when:
- The equipment has 2-lane parallel interfaces (4 fibers per port), or 8-fiber ports running in 2-lane breakout mode.
- You already have a Base-12 trunk backbone and want to stop wasting a third of every leg.
- You want fewer trunk fibers for the same number of 2-lane links: three links per 12 fibers instead of two.
MTP-12 to 2× MTP-4: Split One 8-Fiber Port
The 8-fiber version takes an 8-fiber connector (4 transmit, 4 receive) and splits it into two 4-fiber legs. It is the cable form of a 2-way breakout: one 4-lane port becomes two 2-lane links. Because only 8 fibers are loaded, nothing is wasted at either end.
2× MTP-12 to 3× MTP-8: 24 Fibers, Three 8-Fiber Ports
For 4-lane optics (SR4, DR4), the conversion runs the other way: two 12-fiber trunk connectors (24 fibers) feed three 8-fiber connectors. 24 / 8 = 3 ports, with no dark fibers. This is the classic "MTP-12 to MTP-8" conversion for Base-12 backbones that serve SR4 and DR4 ports.
Utilization Math on a 144-Fiber Trunk
A 144-fiber Base-12 trunk ends in 12 MPO-12 connectors.
| Design | 8-fiber ports served | Fibers used | Utilization |
|---|---|---|---|
| Direct, one 12F leg per 8F port | 12 | 96 of 144 | 67% |
| With 2× MTP-12 to 3× MTP-8 conversion | 18 | 144 of 144 | 100% |
The same trunk serves 6 more 8-fiber ports (18 instead of 12), or the same 12 ports need only 96 fibers: a 96-fiber trunk with conversion instead of 144. See the 144F trunk ordering checklist.
For 2-lane ports, a 144-fiber trunk with MTP-12 to 3× MTP-4 harnesses serves 12 × 3 = 36 four-fiber legs, all 144 fibers in use.
Conversion Harness or Base-8 Trunk?
For a new build, a Base-8 trunk (8-fiber connectors) also reaches 100% utilization on SR4/DR4 ports without conversion. A conversion harness makes sense when:
- You already own a Base-12 backbone and want to reuse it for 8-fiber or 4-fiber ports.
- You mix port types and want one trunk standard.
- You need 2-lane 4-fiber legs, which neither Base-8 nor Base-12 trunks provide directly.
Conversion harnesses add a mated pair or a fan-out in the channel, so check the insertion loss budget. For cassette-based alternatives see what is an MTP-LC cassette.
How to Order a Conversion Harness
Send these details and we will confirm the fiber grouping before production:
- Design: MTP-12 to 3× MTP-4 (12F), MTP-12 to 2× MTP-4 (8F), 2× MTP-12 to 3× MTP-8 or a custom grouping.
- Fiber type: OS2 (G.657.A1 or G.657.A2), OM4 or OM5. Match the trunk.
- Connector brand: genuine US Conec MTP® or standard MPO.
- End face per end: UPC or APC. Single-mode DR-type ports need APC.
- Gender per end: male (pinned) or female (unpinned), based on what each end mates with.
- Polarity and lane map: the trunk polarity method and which lanes each leg must carry.
- Length and leg lengths: overall length, plus any staggered legs to reach different ports.
- Labels: leg IDs and destination ports printed on each leg.
Where to place the harness
Conversion harnesses are usually installed at the equipment end of the trunk, in the rack, between the trunk's panel adapters and the switch ports. Keeping the conversion in one place, at the same position in every rack, makes the channel easier to document and troubleshoot. Leave service slack on the legs and respect bend radius at the fan-out.
Documenting fiber utilization
Record, for each trunk, how many fibers it has and how many are lit. A simple sheet with trunk ID, fiber count, ports served and fibers used shows where Base-12 legs are still running at 67% and where a conversion harness would add ports without a new trunk.
Polarity, Gender and End Face
- Polarity: the harness must keep each transmit fiber paired with its receive fiber across the channel. Specify the trunk polarity and the equipment lane map when ordering; see MPO polarity Type A, B, C.
- Gender: module MPO ports are pinned (male) and accept only female (unpinned) cable connectors. Choose the harness end gender to match the trunk or module it mates with; see male vs female MPO.
- End face: single-mode DR-type ports require APC. Do not mix APC and UPC in one channel; see APC vs UPC.
Common Mistakes
- Using a conversion harness where a Base-8 trunk would be simpler. On a new SR4/DR4 build, consider Base-8 first.
- Mixing up 8F and 12F versions. The 2× MTP-4 harness is 8-fiber; the 3× MTP-4 harness is 12-fiber.
- Ignoring the lane map. 4-fiber legs must line up with the lanes the equipment actually uses in its breakout mode.
- Forgetting the extra mated pair in the loss budget.
Huawellux Conversion Harnesses
- MPO-12 and MTP-12 to 2× MPO-4/MTP-4 (8F) and 3× MPO-4/MTP-4 (12F) harnesses, in stock in our breakout harness collection: OS2 G.657.A1 or G.657.A2, OM4 and OM5, UPC or APC, male or female on each end, 0.5 m to 3.5 m.
- Made to order: 2× MTP-12 to 3× MTP-8 conversion harnesses and other custom fiber groupings, plus MTP/MPO trunk cables to match.
Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss ≥60 dB APC; single-mode UPC ≥55 dB (MTP/MPO) or ≥50 dB (LC/SC); multimode >30 dB. LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is sample-checked in production; a geometry report is supplied only if you specify it. Dust caps are fitted on every connector, and an IL/RL test report ships with every order.
Frequently Asked Questions
What is an MTP conversion harness?
A cable that regroups fibers between connectors of different fiber counts, such as MTP-12 to 3× MTP-4 or 2× MTP-12 to 3× MTP-8, so every trunk fiber carries traffic.
Why does an 8-fiber optic waste fibers on a 12-fiber trunk?
SR4 and DR4 optics use fibers 1–4 and 9–12 of a 12-fiber MPO, leaving 5–8 dark. One-to-one on a Base-12 trunk, 4 of 12 fibers (33%) are unused.
What is MTP-12 to 3x MTP-4 used for?
Splitting one 12-fiber connector into three 4-fiber legs, each carrying two lanes, for 2-lane parallel interfaces or 2-lane breakout modes.
Is MTP-12 to MTP-8 the same as MTP-12 to 3x MTP-4?
No. "MTP-12 to MTP-8" usually means 2× MTP-12 to 3× MTP-8 (24 fibers to three 8-fiber ports) for SR4/DR4. MTP-12 to 3× MTP-4 makes three 4-fiber legs.
Do I need a conversion harness on a new build?
Not always. A Base-8 trunk gives 100% utilization on 8-fiber ports directly. Conversion harnesses are best for reusing Base-12 backbones or for 4-fiber legs.
Get Every Fiber Working
Huawellux manufactures MPO and MTP® assemblies at our factory in Shenzhen, with genuine US Conec MTP® or standard MPO connectors, in OS2, OM3, OM4 and OM5. Browse breakout harness cables, MPO patch cables, trunk cables and fiber management enclosures. Related: MPO fiber count guide and 400G/800G breakout cabling.
Huawellux replies to inquiries within 24 hours. Estimated preparation for all orders, including custom orders, is 1–5 business days after payment confirmation. Standard listed patch cords have no formal MOQ.
