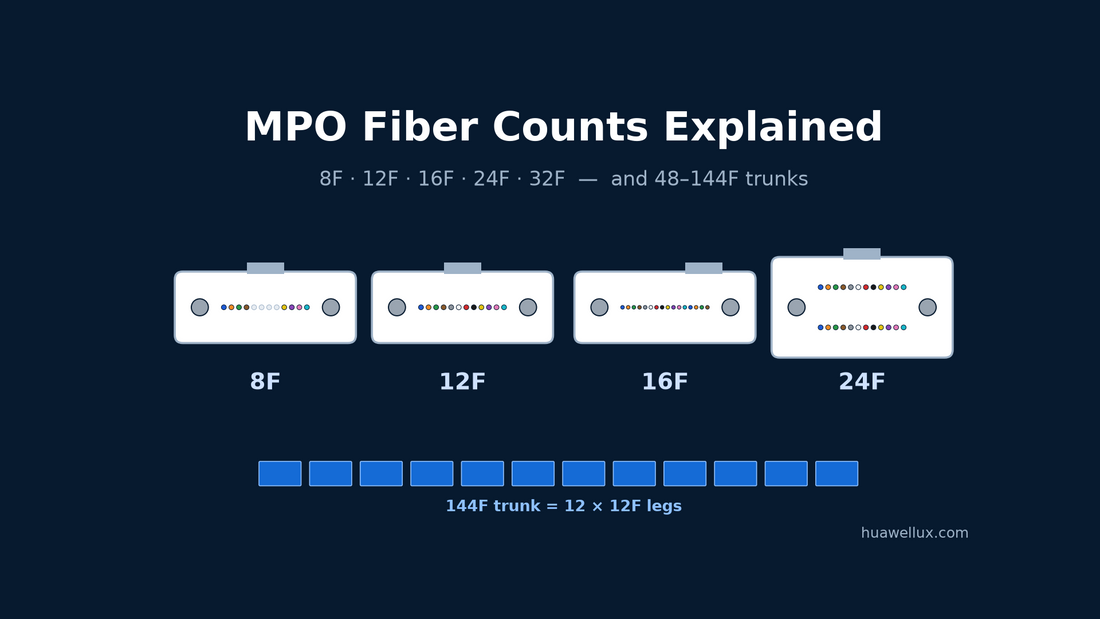

MPO/MTP Fiber Counts Explained: 8F, 12F, 16F, 24F, 32F and 48–144F Trunks

An MPO's fiber count is the number of fibers terminated in one connector. Match it to the optic: 8F or 12F (MPO-12 interface) for 4-lane SR4/DR4 optics, 16F (MPO-16) for 8-lane 400G/800G SR8 and DR8, 24F for legacy SR10 and dense trunking. Trunks of 48–144F simply bundle several of these connector legs.

"Which fiber count do I need?" is one of the most common questions behind an MPO order, and the answer is rarely "the highest one". The count of the connector has to match the interface of the transceiver or cassette it plugs into, and the count of a trunk has to match how many of those connectors you need at each end. This guide walks through each common count, the optics that use it, and how high-count trunks are put together. If MPO is new to you, start with our beginner's guide to MTP/MPO cables.

Fiber Count vs Connector Type vs Fibers Actually Used

Three numbers get mixed up all the time:

• Connector interface: the ferrule design, such as MPO-12 (one row of 12 positions), MPO-24 (two rows of 12) or MPO-16 (one row of 16, a different standard).
• Fiber count: how many fibers are actually loaded into that ferrule. An "8-fiber MPO" is usually a 12-position MPO-12 ferrule with only 8 fibers installed. Switch-vendor documentation points this out directly: the product may be called MPO-8, but the connector is still a 12-fiber connector.
• Fibers used by the optic: a 100G SR4 transceiver lights 8 fibers (4 transmit, 4 receive). Plugged into a 12F cord, 4 fibers in the middle stay dark.

So "8F vs 12F" is mostly about how many fibers are in the cable, not about a different plug. "12F vs 16F" is a different plug: MPO-16 will not mate with MPO-12.

MPO Fiber Count Quick Reference

Fiber count	Ferrule / interface	Typical optics and uses	Huawellux standard range
8F	MPO-12 position, 8 fibers loaded	40G/100G/200G SR4, 400G SR4.2, 400G DR4, 100G PSM4	Patch cords, breakouts
12F	MPO-12, one row of 12	Same 4-lane optics (4 fibers unused); 12F backbones and cassettes	Patch cords, breakouts
16F	MPO-16, one row of 16, offset key	400G SR8, 800G SR8, 800G DR8 (MPO-16 version)	Patch cords
24F	MPO-24, two rows of 12	Legacy 100G SR10 (20 of 24 used); dense trunking, 2×12F	Patch cords
32F	MPO-16 family, two rows of 16	Very high-density links and cassettes	On request
48–144F	Multiple MPO legs per end	Backbone trunks between rows, rooms and halls	Trunks 48F / 72F / 96F / 144F

8F and 12F: The MPO-12 Interface for 4-Lane Optics

Most parallel optics in service today use four lanes in each direction, so they need 8 fibers: 4 transmit and 4 receive. Their MPO port is an MPO-12 interface where the outer four positions on each side carry signals and the middle four are not used. That covers:

• Multimode: 40G SR4, 100G SR4, 200G SR4, and 400G SR4.2 (a BiDi design that still uses 8 fibers).
• Single-mode: 100G PSM4, 400G DR4 and 800G DR4, which use MPO-12 connectors with an APC (8° angled) polish.

Both an 8F and a 12F cord plug into these ports. The difference is what happens behind the connector:

• 8F carries only the fibers the optic uses. No glass is wasted, which matters in a long or high-count run, and it maps neatly onto 4-lane breakouts (one MPO to four duplex LC).
• 12F fills every position. It suits 12F cassettes and panels, 12-fiber backbones, and links where you want the extra fibers available for future use.

A common breakout use: a 400G DR4 port split into four 100G single-mode links with an MPO-12 to 4× LC duplex harness. See our breakout harness cables (8F and 12F).

16F (MPO-16): Built for 8-Lane 400G and 800G

8-lane optics need 16 fibers: 8 transmit and 8 receive. 400G SR8 and 800G SR8 use all 16 fibers of a single MPO-16 connector, so not one fiber is idle. 800G DR8 on single-mode uses a single-row 16-fiber lane layout as well, and modules are sold either with one MPO-16 APC port or with two MPO-12 APC ports, so check which one your optic has.

MPO-16 is a separate connector standard (TIA-604-18, also called FOCIS 18), not just a longer MPO-12:

• the key is offset from the center, so an MPO-16 cannot be inserted into an MPO-12 adapter or port, and the other way round;
• the guide pins and holes differ in diameter and spacing, so MPO-12 and MPO-16 cannot mate even if forced;
• adapters, cassettes and test reference cords must be MPO-16 versions too, and check that cleaning tools are rated for 16-fiber ferrules.

Many 8-lane multimode optics also call for APC MPO-16 connectors, unlike older multimode MPOs which are usually flat polished. Check the polish on the transceiver datasheet before ordering, along with gender and polarity.

24F: Two Rows of 12

A 24F MPO stacks two rows of 12 fibers in one ferrule, using the same centered-key family as MPO-12. Its original transceiver application was 100G SR10, which uses 20 of the 24 fibers (10 transmit, 10 receive). That optic is now legacy, so today 24F is mainly a density choice:

• one 24F connector can replace two 12F connectors on a trunk or cassette;
• 24F to 2× 12F conversion cords connect a 24F backbone to 12F equipment;
• a 24F to 12× LC duplex harness fans out to twelve duplex ports.

Note that a 24F cord does not plug into a 4-lane SR4 port. Use 24F where the panels and cassettes at both ends are designed for it.

32F: Two Rows of 16

The MPO-16 standard allows up to two rows, which gives a 32F (2×16) connector with the same offset key as MPO-16. It is used in very high-density cassettes and panels. Like MPO-16 it does not mate with the MPO-12/MPO-24 family. 32F is a niche format and not part of our standard range, so treat it as a custom assembly and confirm the matching hardware at both ends first.

High-Count Trunks: 48F, 72F, 96F and 144F

Above 32 fibers, a single connector is no longer the point. A high-count trunk is one cable carrying many fibers, terminated with several MPO legs at each end. The fiber count of the trunk equals the number of legs multiplied by the fiber count of each leg. For example:

Trunk	Built as 12F legs	Built as 8F legs	Built as 16F legs	Built as 24F legs
48F	4 × 12F	6 × 8F	3 × 16F	2 × 24F
72F	6 × 12F	9 × 8F	not a multiple	3 × 24F
96F	8 × 12F	12 × 8F	6 × 16F	4 × 24F
144F	12 × 12F	18 × 8F	9 × 16F	6 × 24F

High-count trunks are used for backbone links between rows, cages, rooms or halls, where one cable replaces a bundle of small ones and saves pathway space. When you specify one, the trunk count is only the start. You also need the connector count and type per leg, leg length and staggering (fan-out), pulling grip, outer jacket rating, and labels. Our MTP/MPO trunk vs patch cable guide explains the difference, and the 144F trunk ordering checklist lists every field to define.

The table shows why choosing the leg count matters: 72F works with 12F or 24F legs but not 16F legs, and 144F divides evenly by 8, 12, 16 and 24.

Base-8, Base-12 and Base-16 in One Paragraph

The leg size you build around is called the base of the cabling system: Base-8 uses 8F connectors, Base-12 uses 12F, and Base-16 uses 16F. The base decides how cleanly your trunks map onto the optics, and whether any fibers are left unused. We cover the trade-offs in detail in our upcoming guide to Base-8 vs Base-12 vs Base-16. For this article, one rule is enough: pick one base per channel and keep it consistent from end to end.

How to Choose the Right MPO Fiber Count

1. Start at the transceiver. Read the connector line on its datasheet: MPO-12 (8 fibers used), MPO-16, dual MPO-12 or MPO-24. That fixes the count of the cord that plugs into it.
2. Check the polish and fiber type. Single-mode MPOs are APC; multimode may be flat or APC depending on the optic.
3. Decide on a base for the backbone (8, 12 or 16) and use it for trunks, cassettes and patch cords alike.
4. Size the trunk by how many connectors each end needs, and add spare capacity if you expect growth.
5. Specify the rest per end: gender, polarity, key, length and labels. Compare MTP® vs MPO if a connector brand is required.
6. Plan lengths and quantities with our cable estimator.

Frequently Asked Questions

What is the difference between 12-fiber and 24-fiber MPO?

A 12-fiber MPO has one row of 12 fibers; a 24-fiber MPO has two rows of 12 in the same family. 4-lane optics such as 100G SR4 plug into 12F (or 8F) cords. 24F is mainly used for dense trunks and cassettes, or for legacy 100G SR10.

Is an 8-fiber MPO a different connector from a 12-fiber MPO?

Usually not. An 8F MPO is normally a 12-position MPO-12 connector with only the 8 fibers that a 4-lane optic uses. It plugs into the same ports as a 12F MPO; the difference is the fiber count inside the cable.

Can an MPO-16 connect to an MPO-12?

No. MPO-16 (TIA-604-18) has an offset key and different guide pins, so it cannot plug into an MPO-12 port or adapter. Moving between them needs a conversion cord or cassette designed for both, and a plan for how the fibers map.

Which MPO fiber count do 400G optics use?

It depends on the variant. 400G SR8 uses an MPO-16 with all 16 fibers. 400G DR4 and 400G SR4.2 use an MPO-12 interface with 8 fibers. Always check the connector listed on the transceiver datasheet, not just the speed.

How is a 144-fiber MPO trunk built?

A 144F trunk is one cable with several MPO legs at each end, for example twelve 12F legs, eighteen 8F legs or nine 16F legs. Choose the leg type that matches your cassettes and panels, then define leg lengths, polarity, gender and labels.

Order MPO Assemblies in the Fiber Count You Need

Huawellux builds MPO assemblies at our factory in Shenzhen: trunk cables in 48F, 72F, 96F and 144F, including 16-fiber (MPO-16) trunks and cassettes, MPO patch cords in 8F, 12F, 16F, 24F and 32F, and 8F and 12F breakout harnesses, all with genuine US Conec MTP® or standard MPO connectors. Tell us which transceivers or cassettes each end plugs into, and our engineers will check the count, polarity and gender plan before production.

Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.

Huawellux replies to inquiries within 24 hours. Custom orders typically take 1–5 business days to complete production, with final timing confirmed case by case in the quotation. For special/custom requirements, MOQ is 2 km of fiber length. Standard listed patch cords have no formal MOQ. The sample fee is credited against the bulk order.
