MPO Polarity Explained: Type A, B and C (with Wiring Diagrams)

In a duplex LC link, polarity is simple: transmit on one end must reach receive on the other, and an A-to-B patch cord handles it. With multi-fiber MPO/MTP connectors carrying 8, 12, 16 or 24 fibers in a single ferrule, the question becomes more structured: which fiber position at one end lands on which position at the other end? That mapping is what we call MPO polarity.

Getting polarity wrong rarely damages anything, but it does cause links that will not come up, rework on site, and re-orders that delay a project. This guide explains the three polarity types defined in ANSI/TIA-568.3-D (Type A, Type B and Type C), shows the 12-fiber position mapping for each, and outlines how to specify a consistent MTP polarity method for trunks, cassettes and patch cords when you request a quote.

What Is MPO Polarity?

MPO polarity describes the fiber position mapping between the two ends of an MPO cable, combined with the orientation of the connector keys. Two attributes define it:

• Fiber position mapping – whether fiber 1 at end 1 arrives at position 1, position 12, or position 2 at end 2.
• Key orientation – whether the cable is built key up to key down or key up to key up. This determines which adapter type (Type A or Type B adapter) the cable is used with.

A complete channel usually includes trunk cables, adapters, cassettes or fan-outs, and patch cords. Each component has its own polarity, and the channel only works if the combination results in Tx connecting to Rx end to end. This is why polarity should be designed at the channel level, not chosen per part.

Fiber position numbering and color code

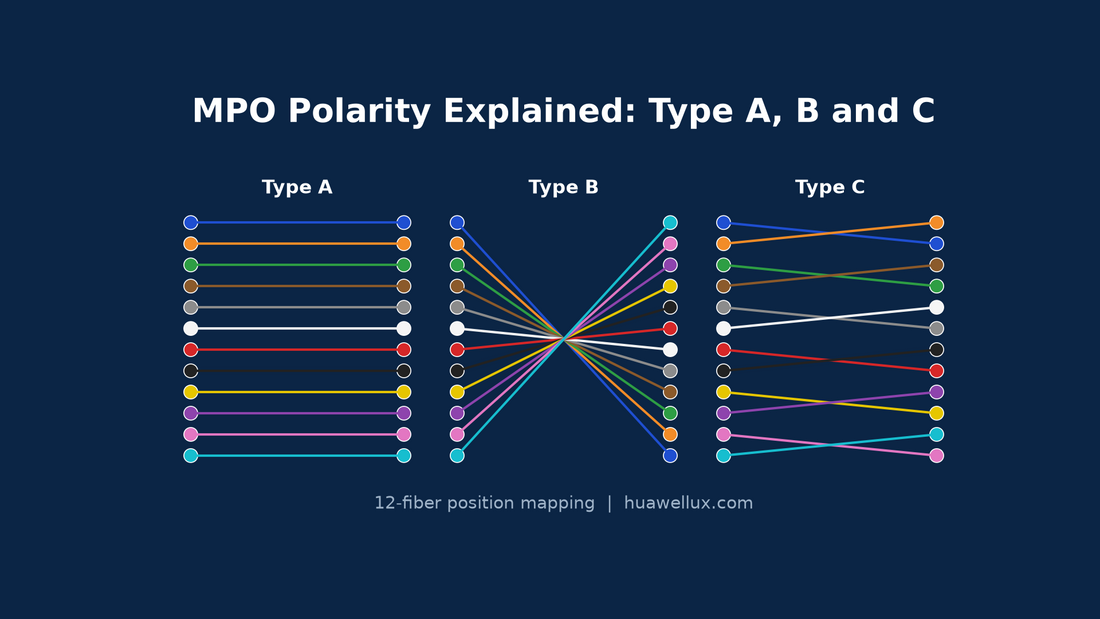

On a 12-fiber MPO connector, positions are numbered 1 to 12 from left to right when viewed from the end face with the key up. Fibers follow the standard TIA-598 color sequence: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua. The diagrams below use this color code: each line keeps its fiber color from end 1 to end 2, so you can check a physical cable against the drawing (for example, in a Type B cable the blue fiber sits in position 12 at end 2).

Key up vs. key down adapters

• Type A adapter (key up to key down): the two connectors mate with keys in opposite orientation.
• Type B adapter (key up to key up): both connectors mate with keys in the same orientation.

Note that "Type A/B adapter" and "Type A/B polarity cable" are related but separate terms. Specifications should state both.

Type A Polarity (Straight-Through)

Type A is a straight-through cable. Fiber position 1 at end 1 arrives at position 1 at end 2, position 2 at position 2, and so on up to 12. The connectors are built key up to key down.

End 1	1	2	3	4	5	6	7	8	9	10	11	12
End 2	1	2	3	4	5	6	7	8	9	10	11	12

Where Type A is used

• Common in structured cabling with MPO-LC cassettes for duplex applications.
• Because the trunk itself does not flip fibers, the polarity flip must happen somewhere else in the channel, typically by using one A-to-B duplex patch cord and one A-to-A duplex patch cord at the two ends (Method A in TIA-568.3-D). For array (MPO-to-MPO) connections, Method A uses a Type A array patch cord at one end and a Type B array patch cord at the other.

Practical notes

Type A is easy to trace and test, since position numbers are identical at both ends. The trade-off is that the two ends of the channel use different patch cord types, which installers need to manage carefully.

Type B Polarity (Reversed)

Type B polarity reverses the fiber order. Position 1 at end 1 arrives at position 12 at end 2, position 2 at position 11, and so on. The connectors are built key up to key up.

End 1	1	2	3	4	5	6	7	8	9	10	11	12
End 2	12	11	10	9	8	7	6	5	4	3	2	1

Where Type B is used

Type B is widely used for parallel optics, such as 40G/100G/400G SR4 and similar multi-lane transceivers with an MPO interface. In these modules, transmit lanes sit on one side of the ferrule (e.g., positions 1–4) and receive lanes on the other (positions 9–12). A Type B trunk maps transmit positions directly onto the far end's receive positions.

In cassette-based duplex systems (Method B), Type B trunks allow A-to-B duplex patch cords at both ends, which simplifies patch cord inventory. The cassettes at each end must be matched to this method.

Practical notes

• Type B connections between two MPO connectors with pins and without pins must still respect gender: one side male (pinned), the other female (unpinned). Polarity and gender are independent specifications.
• For angle-polished (APC) MPO connectors, the key-up to key-up mating of Type B affects the angled end face geometry, so APC components should be verified against the chosen method before ordering.

Type C Polarity (Pair-Flipped)

Type C flips each adjacent fiber pair. Position 1 arrives at position 2, position 2 at position 1, position 3 at position 4, and so on. The connectors are built key up to key down.

End 1	1	2	3	4	5	6	7	8	9	10	11	12
End 2	2	1	4	3	6	5	8	7	10	9	12	11

Where Type C is used

Type C is designed for duplex channels: the pair flip inside the trunk performs the Tx/Rx crossover, so the channel can use A-to-B duplex patch cords at both ends (Method C). It is less suited to parallel optics, because pair-flipping does not map a block of transmit lanes onto a block of receive lanes.

Practical notes

Type C is more complex to trace in the field, and it is less common in new parallel-optics-ready designs. If a data center is expected to migrate from duplex to parallel transceivers, a Type B-based design is often preferred for flexibility.

Comparing the Three MPO Polarity Types

Item	Type A	Type B	Type C
Fiber mapping	1→1 … 12→12	1→12 … 12→1	1↔2, 3↔4 … 11↔12
Key orientation	Key up – key down	Key up – key up	Key up – key down
Adapter used	Type A (key up–down)	Type B (key up–up)	Type A (key up–down)
Typical duplex patch cords	A-to-B + A-to-A	A-to-B both ends	A-to-B both ends
Parallel optics (SR4 etc.)	Possible with specific components	Commonly used	Generally not suited
Field tracing	Simple	Moderate	More complex

There is no single "best" polarity. The right choice depends on the transceivers, existing installed base, cassette types and the operator's documentation standard.

Choosing an MTP Polarity Method for Your Project

An MTP polarity method is a consistent rule set for the whole channel. To select one:

1. Start with the transceiver. Duplex LC optics (e.g., 10G/25G SR) and parallel MPO optics (e.g., 100G SR4, 400G SR8) have different needs.
2. Check the installed base. Mixing methods across a site increases the risk of errors. Align with what is already deployed whenever possible.
3. Define every component together. Trunk polarity, connector gender, adapter type, cassette polarity and patch cord type must be specified as a set.
4. Consider future migration. If duplex links may later move to parallel optics, Type B trunks with appropriate cassettes or conversion modules can reduce rework.
5. Document it. Label trunks with polarity and gender at both ends, and record the method in the as-built documentation.

Information to include in an RFQ

To avoid ambiguity, a procurement specification for MPO/MTP trunks or harnesses should state:

• Fiber count (8/12/16/24) and fiber type (OS2, OM3, OM4, OM5)
• Connector type and gender at each end (male/female)
• Polarity type (A, B or C) and polish (UPC/APC)
• Length and length tolerance
• Cable jacket rating (e.g., LSZH, OFNR, OFNP) and outer diameter
• Breakout or fan-out details for harness assemblies
• Insertion loss requirements and test report format

If you are still estimating quantities and lengths, our MPO cable estimator can help you structure the list before you submit it.

Testing and Verifying MPO Polarity

Even with a correct specification, verification on receipt and after installation is good practice:

• Factory test reports should include insertion loss per fiber and, where requested, polarity verification for each assembly. Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. A formal test report is provided on request; state it in your RFQ.
• Visual check: compare the fiber color sequence at each end with the expected mapping, using the diagrams above.
• Field test: MPO-capable test sets or visual fault locators can confirm position mapping before links are lit.
• End-face inspection: clean and inspect MPO end faces before mating; contamination causes more link failures than polarity errors.

Link not coming up? For a step-by-step field check of an installed channel, see MPO polarity troubleshooting in the field.

Frequently Asked Questions

What is MPO polarity?

MPO polarity is the fiber position mapping between the two ends of an MPO/MTP cable, together with its key orientation. It ensures that transmit fibers connect to receive fibers across the complete channel.

What is the difference between Type A and Type B polarity?

Type A is straight-through (position 1 to 1) with key up to key down connectors. Type B polarity is reversed (position 1 to 12) with key up to key up connectors. Type B is commonly used for parallel optics such as SR4 transceivers.

Which MPO polarity should I use for 100G SR4 or 400G SR8?

Parallel optics links are commonly built with Type B trunks between transceivers, using male/female connectors as required by the equipment. Always confirm with the transceiver and switch vendor documentation.

Can I mix Type A and Type B components in the same channel?

Yes, as long as the complete channel results in correct Tx-to-Rx mapping. Mixing methods is possible but increases the chance of error, so the full channel should be designed and documented as one MTP polarity method.

Is MTP polarity the same as MPO polarity?

Yes. MTP is a brand of high-performance MPO connector, and it follows the same polarity types (A, B and C) defined in TIA-568. The terms are used interchangeably in specifications.

Get Polarity-Correct MPO/MTP Assemblies

Huawellux manufactures custom MPO/MTP trunk cables, harnesses and patch cords in Shenzhen with genuine US Conec MTP® or standard MPO connectors, built to the polarity, gender, fiber type (OS2, OM3, OM4 or OM5) and length you specify, with per-assembly test reports. Send your channel design or bill of materials and our engineering team will review polarity and gender consistency before production.

Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Dust caps are fitted on every connector, and a formal test report is available on request.

Huawellux replies to inquiries within 24 hours. Custom orders typically take 1–5 business days to complete production, with final timing confirmed case by case in the quotation. For special/custom requirements, MOQ is 2 km of fiber length. Standard listed patch cords have no formal MOQ. The sample fee is credited against the bulk order.
