What Is an MTP-LC Cassette and How Does It Work?
An MTP-LC cassette is a small, enclosed module that converts one multi-fiber MTP® or MPO connection at the rear into several duplex LC ports at the front. Inside, a short factory-terminated harness routes each fiber from the MPO ferrule to its own LC connector. A 12-fiber cassette, for example, takes one MTP-12 trunk and delivers six LC duplex ports, ready for patch cords to switches and servers.
Cassettes are the bridge between high-density MPO trunk cabling and the duplex LC ports used by most 10G, 25G and many 100G transceivers. They let you install the backbone once, with pre-terminated trunks, and do all day-to-day patching at the LC front of a rack enclosure. This guide explains what is inside a cassette, how the fibers are mapped, how polarity works, how cassettes affect the loss budget and how to choose one.
What an MTP-LC Cassette Does
A data center trunk cable carries 8, 12, 16, 24 or more fibers terminated in one MPO connector. Most network equipment, however, uses duplex LC ports: one fiber to transmit and one to receive. Something has to break the trunk out into duplex channels.
There are two ways to do it:
- A breakout (fan-out) harness: an MPO connector on one end and loose LC legs on the other. It is simple and has only one connector interface, but the legs are exposed and harder to manage. See our breakout harness cables.
- A cassette: the same fan-out, but enclosed in a rigid module with an MPO adapter on the back and an LC adapter panel on the front. The fibers are protected, the front is labelled and organized, and the module slides into a rack enclosure.
Cassettes are preferred in structured cabling because they make the permanent link (trunk to cassette) separate from the patching layer (LC cords at the front). Moves, adds and changes happen at the front, and nobody touches the trunk.
What Is Inside the Cassette
Open a cassette and you will find four parts:
- Rear MPO/MTP adapter. The trunk plugs in here. The connector inside the cassette that mates with it is usually male (pinned), so the trunk arriving at the cassette is female (unpinned). See male vs female MPO connectors.
- Internal harness. A short MPO-to-LC fan-out, factory terminated and tested. The fibers are routed in a defined order, which sets the polarity of the cassette.
- Fiber routing and strain relief. Guides, bend-radius control and boots keep the fibers organized and protected. Bend-insensitive fiber helps keep loss low in a small housing.
- Front LC adapter panel. Duplex LC adapters, often with shutters or dust caps, and port labels.
The housing is a closed, plug-and-play unit. You do not re-terminate or splice inside it in the field.
How 12 Fibers Map to 6 LC Duplex Ports

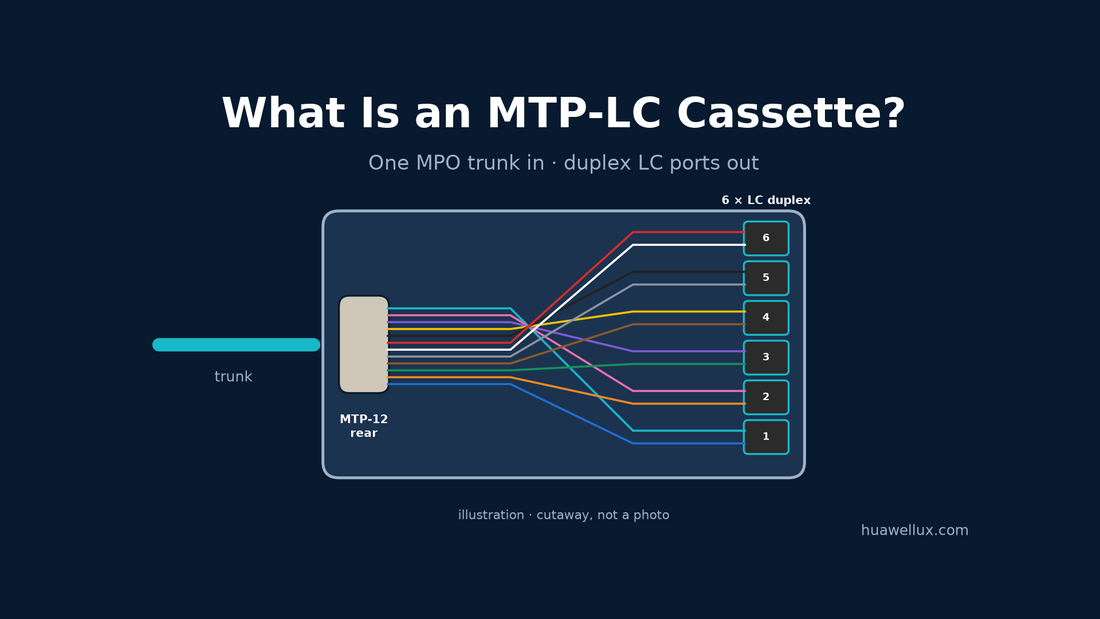

The most common cassette is MTP-12 to 6 × LC duplex. The 12 fibers in the MPO ferrule are numbered 1 to 12, with the key up. Inside the cassette, pairs of fibers are routed to each LC duplex port.
In a typical design, the pairs are taken from opposite ends of the ferrule, inward:
| LC duplex port | MPO fiber positions |
|---|---|
| Port 1 | 1 and 12 |
| Port 2 | 2 and 11 |
| Port 3 | 3 and 10 |
| Port 4 | 4 and 9 |
| Port 5 | 5 and 8 |
| Port 6 | 6 and 7 |
Other designs pair adjacent fibers (1-2, 3-4 and so on). Both work, as long as the cassette pairing, the trunk polarity and the patch cords are planned together. This is exactly why cassette polarity must be specified.
Other fiber counts follow the same idea:
| Rear connector | Front ports | Typical use |
|---|---|---|
| MPO-8 | 4 × LC duplex | Matches the 8 fibers used by SR4/DR4 lanes |
| MPO-12 | 6 × LC duplex | Most common, legacy and Base-12 systems |
| MPO-16 | 8 × LC duplex | Base-16 / 800G-era cabling |
| MPO-24 (or 2 × MPO-12) | 12 × LC duplex | Higher density per module |
For more on fiber counts and systems, see our MPO fiber count guide and Base-8 vs Base-12 vs Base-16.
Polarity: Making Transmit Meet Receive
Every duplex channel must connect a transmitter at one end to a receiver at the other. A cassette is one of three components that decide whether that happens; the others are the trunk and the patch cords. TIA-568 defines three methods, explained in detail in our MPO polarity guide.
| Method | Trunk | Cassettes | Patch cords |
|---|---|---|---|
| A | Type A (straight, key up to key down) | Same type both ends, or A + "AF" | One A-to-A (crossed) cord, one A-to-B |
| B | Type B (flipped, key up to key up) | B1 at one end, B2 at the other, or universal | A-to-B at both ends |
| C | Type C (pair-flipped) | Same type both ends | A-to-B at both ends |
Two practical points:
- Method B with universal cassettes uses the same cassette at both ends of a Type B trunk, with standard A-to-B cords. This keeps inventory simple, and it is common in new data centers.
- Single-mode APC and Method B. With APC connectors, the angled end faces must align. Key-up to key-up mating can cause the angles to mismatch unless the cassette and trunk are designed for it. Confirm APC compatibility when you choose a Method B system; see APC vs UPC MPO connectors.
The safest rule: specify the trunk type, the cassette type and the patch cord type together, from one supplier, as one system.
Cassettes and the Loss Budget
A cassette adds two connector interfaces to the channel: the MPO connection at the rear and the LC connection at the front. In a link with a cassette at each end, that is four mated pairs, plus anything in between.
Using the method from our MPO insertion loss budget guide:
| Example: 10GBASE-SR-style duplex link, 50 m OM4 | TIA max (0.75 dB/pair) | Low-loss (0.35 dB/pair) |
|---|---|---|
| Fiber 0.05 km × 3.5 dB/km | 0.18 dB | 0.18 dB |
| 2 cassettes × 2 interfaces = 4 pairs | 3.00 dB | 1.40 dB |
| Channel loss | 3.18 dB | 1.58 dB |
With TIA-maximum connections, two cassettes alone exceed the budgets of many high-speed applications; with low-loss connections, the same link has room to spare. This is why cassettes should always be specified with a maximum insertion loss per interface.
Cassette vs Breakout Harness
| Cassette | Breakout harness | |
|---|---|---|
| Connector interfaces | 2 (MPO + LC) | 1 (MPO) plus LC at equipment |
| Fiber protection | Enclosed | Exposed legs |
| Patching | Clean LC front panel | Legs routed to equipment |
| Loss | Slightly higher (extra interface) | Lower |
| Best for | Structured cabling, frequent changes | Direct connection, fixed setups, tight budgets |
If your loss budget is tight, for example with many patch points at high speed, a harness or a direct MPO connection may be the better choice. If manageability and frequent changes matter more, choose cassettes.
How to Choose an MTP-LC Cassette
- Fiber type: OS2 single-mode, or OM3, OM4 or OM5 multimode. Match the trunk.
- Fiber count and rear connector: MPO-8, 12, 16 or 24, matching your trunk system.
- Rear gender: usually a male connector inside the cassette, so you need female trunks.
- Polarity: Method A, B (B1/B2 or universal) or C, matching trunk and cords.
- Polish: UPC for multimode, APC for single-mode MPO in most designs.
- Insertion loss: a specified maximum per interface, with a test report.
- Form factor: the cassette must fit your enclosure; check modules per 1U, 2U or 4U.
- Front adapters: LC duplex, shuttered or capped, with color coding and labels.
Installing and Maintaining Cassettes
- Install the trunk first, then plug it into the rear of each cassette and slide the cassette into the enclosure.
- Inspect and clean both ends of every MPO and LC connection before mating. One dirty interface can use the whole margin; see how to clean MPO/MTP connectors.
- Keep dust caps on unused front ports.
- Label each cassette and port, and record the polarity method.
- Test the installed channel, cassette to cassette, and compare it with the loss budget.
Huawellux MTP/MPO Cassettes
Huawellux cassettes are offered as MTP-to-LC or MPO-to-LC, in 12F and 24F, with OS2, OM4 or OM5 fiber, for our modular rack enclosures (1U/144F, 2U/288F, 4U/576F). Polarity, connector gender, loss grade and enclosure loading are confirmed with you before production.
Huawellux Specification
Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.
Related reading: the front of most cassettes uses LC duplex ports; see LC vs SC fiber connectors for how LC compares with SC.
800G design: a cassette adds two mated pairs per end, so on 800G links it is not always the right choice; see MPO cassette vs direct trunk for 800G.
Frequently Asked Questions
What is an MTP-LC cassette?
It is an enclosed module with an MTP® or MPO adapter at the rear and duplex LC adapters at the front. An internal harness routes each fiber from the multi-fiber connector to an LC port, so one trunk can serve several duplex links.
How many LC ports does a 12-fiber MTP cassette have?
Six LC duplex ports, or 12 LC simplex positions. Each duplex port uses two of the 12 fibers, one to transmit and one to receive.
Is the MPO connector inside a cassette male or female?
Usually male (pinned). The trunk that plugs into the rear of the cassette is then female (unpinned). Always confirm the gender when ordering trunks.
What is a universal polarity cassette?
A cassette designed so the same part can be used at both ends of a Type B (Method B) trunk, with standard A-to-B LC patch cords. It avoids stocking separate B1 and B2 cassettes.
How much loss does a cassette add?
A cassette adds two interfaces: the MPO connection at the rear and the LC connection at the front. Count both as mated pairs in your loss budget, using the maximum insertion loss specified for each.
