Base-8 vs Base-12 vs Base-16 MPO Cabling: Which Base Fits Your Optics?

The "base" is the number of fibers per MPO connector that a cabling system is built around. Base-12 suits duplex links and existing 12-fiber plant. Base-8 uses every fiber with 4-lane SR4/DR4 optics. Base-16 (MPO-16) uses every fiber with 8-lane 400G/800G SR8 and DR8. Choose the base your optics need, then keep it end to end.

Base-8, Base-12 and Base-16 are not three different speeds or three grades of quality. They are three ways of grouping the same fibers. The choice decides how many fibers in your trunks carry traffic, how many MPO connectors you get per cable, which cassettes and patch cords you buy, and how easily the plant moves to the next generation of optics. This guide compares the three side by side and gives a simple way to choose. If you need a refresher on fiber counts first, read our MPO fiber count guide.

What "Base" Means in MPO Cabling

A structured MPO system is built from repeating building blocks: trunk legs, cassettes, MPO patch cords and breakout harnesses. The base is the fiber count of that block.

• Base-12: every MPO leg carries 12 fibers, and trunk counts are multiples of 12 (24F, 48F, 96F, 144F).
• Base-8: every MPO leg carries 8 fibers, and trunks are multiples of 8 (24F, 48F, 96F, 144F).
• Base-16: every MPO leg carries 16 fibers on an MPO-16 connector, and trunks are multiples of 16 (32F, 48F, 96F, 144F).

Base-8 and Base-12 normally share the same 12-position MPO-12 connector. In a Base-8 leg the middle four positions are simply left empty. Base-16 uses a different connector, the MPO-16 defined by TIA-604-18, which does not mate with MPO-12. New to MPO? Start with what an MTP/MPO cable is.

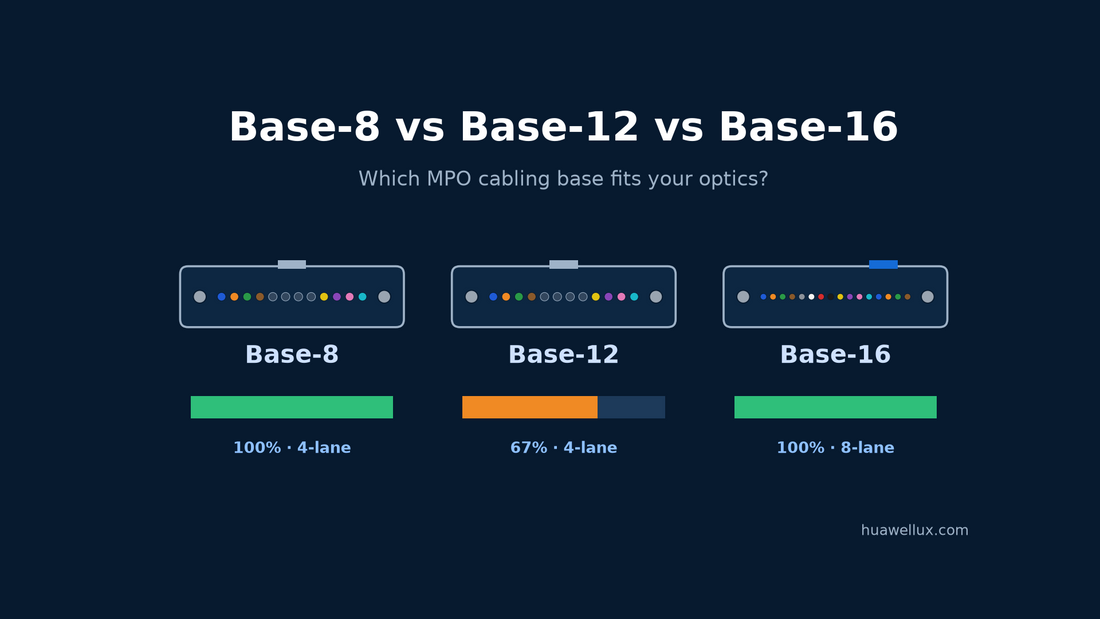

Base-8 vs Base-12 vs Base-16 at a Glance

	Base-8	Base-12	Base-16
Fibers per MPO leg	8	12	16
Connector	MPO-12 (8 positions loaded)	MPO-12	MPO-16, offset key
Duplex LC ports per leg	4	6	8
Natural parallel optic	4-lane: 40/100/200G SR4, 400G SR4.2, 400G/800G DR4, PSM4	none uses all 12	8-lane: 400G/800G SR8, 800G DR8
Fiber use with 4-lane optics	100%	67% (4 of 12 dark)	via conversion
Fiber use with 8-lane optics	100% (two legs per optic, via conversion)	67% or via conversion	100%
Fiber use with duplex optics	100%	100%	100%
Best fit	Parallel 100G–800G and breakouts	Duplex networks, existing 12F plant	New 400G/800G 8-lane builds

The pattern is simple: every base works perfectly for duplex links, because 8, 12 and 16 are all even. The difference appears with parallel optics, which use a fixed number of fibers per port.

Base-12: The Installed Standard for Duplex Links

Base-12 has been the most widely deployed MPO backbone for decades. Each 12F leg breaks out to six LC duplex ports, which suits duplex networks such as 10G, 25G and 100G single-pair links and Fibre Channel. If your plant is already Base-12 and your optics are duplex, there is no reason to change.

The weakness shows up with 4-lane parallel optics. An SR4 or DR4 transceiver uses 8 fibers: 4 transmit on one side, 4 receive on the other, and the middle 4 positions are unused. On a Base-12 link, those 4 fibers are installed, paid for and dark, so one third of the glass carries nothing.

There is a fix. Two 12F legs carry 24 fibers, exactly enough for three 8-fiber optics. A Base-12 to Base-8 conversion cord or cassette (for example 2× 12F MPO to 3× 8F MPO) re-maps those 24 fibers so that all of them are used. It works well for existing plant, but conversion parts add a mated connection and are less flexible to patch than separate MPO cords. We build 2× 12F to 3× 8F conversion assemblies; see our breakout harness cables for conversion and breakout options.

Base-8: Full Use of Every Fiber with 4-Lane Optics

Base-8 was created for 4-lane parallel optics. Each 8F leg carries exactly the fibers that an SR4, SR4.2, DR4 or PSM4 port uses, so nothing is left dark. The advantages:

• 100% fiber utilization with 4-lane optics, at 40G, 100G, 200G, 400G and 800G DR4.
• One more MPO for the same fibers. A 24-fiber Base-8 channel has three MPO connectors and can feed three parallel optics; a 24-fiber Base-12 channel has two.
• Clean 4:1 breakouts. One 8F MPO to four LC duplex matches the common split of one 400G DR4 port into 4× 100G, or one 100G SR4 into 4× 25G.
• Still fine for duplex. Each 8F leg gives four duplex ports.

Because Base-8 uses the same MPO-12 connector, Base-8 cords plug into the same transceiver ports and adapters as Base-12 cords. The difference is in the cable and the cassettes, so label Base-8 and Base-12 components clearly and do not mix cassettes from the two systems in one channel.

Base-16: Built for 8-Lane 400G and 800G

Base-16 matches 8-lane parallel optics: 400G SR8, 800G SR8 and 800G DR8 on MPO-16. Each 16F leg carries 8 transmit and 8 receive fibers, so the optic uses all 16. One Base-16 leg can also break out 8:1, for example one 400G SR8 port into eight 50G duplex links.

Base-16 is a different physical system, not just more fibers:

• Different connector. MPO-16 (TIA-604-18, FOCIS 18) has an offset key and different guide pin spacing. It cannot mate with MPO-12, so Base-16 trunks, cassettes, adapters, patch cords and test cords all have to be MPO-16.
• Usually APC. Many 8-lane optics, including multimode SR8, call for APC (angled) MPO-16 connectors. With APC connectors only key-up to key-down (Type A) adapters are used. Check the polish on the transceiver datasheet.
• Conversion is possible. Existing Base-8 or Base-12 plant can serve 8-lane optics through conversion cords or cassettes (two 8F legs make one 16-fiber channel), at the cost of extra connections.

Note that 800G DR8 modules are also sold with two MPO-12 APC ports instead of one MPO-16. A dual MPO-12 module fits a Base-8 plant, so check which version you are buying before you choose the base.

Same Fibers, Different Legs: Trunk Leg Counts by Base

The base does not change how many fibers a trunk carries, only how many legs they are split into. These figures match our fiber count guide:

Trunk	Base-8 legs	Base-12 legs	Base-16 legs
48F	6 × 8F	4 × 12F	3 × 16F
72F	9 × 8F	6 × 12F	not a multiple
96F	12 × 8F	8 × 12F	6 × 16F
144F	18 × 8F	12 × 12F	9 × 16F

Read the table as "how many optics can each end feed". A 144F Base-8 trunk feeds 18 four-lane optics; the same 144 fibers as Base-12 feed only 12 of them directly; as Base-16 they feed 9 eight-lane optics. More legs also means more connectors to clean and label, so plan panel space and fan-out lengths too. Our trunk vs patch cable guide covers the rest of the trunk specification.

Worked Example: 24 Fibers Between Two Racks

Suppose you run 24 fibers between a spine and a leaf rack:

• Base-12 (2 × 12F): two 100G SR4 links; 8 of the 24 fibers are dark. With a 2× 12F to 3× 8F conversion at each end, three links.
• Base-8 (3 × 8F): three 100G SR4 or 400G DR4 links, no dark fibers, no conversion parts.
• Duplex instead: 12 LC duplex links in either base.

Scale that to a 144F backbone and the difference is 18 links versus 12 on the same glass. For 8-lane 400G SR8 the comparison moves to Base-16: 9 links from 144 fibers on MPO-16, with nothing dark.

Mixing Bases and Migrating

Real data centres often hold more than one base. A few rules keep that manageable:

1. One base per channel. Within one link, trunk, cassettes and cords should share a base. Convert only at a defined point, with a conversion cord or cassette.
2. One polarity method. TIA-568.3 describes array polarity Methods A, B and C, and the same logic applies to Base-8 and Base-12. Pick one and keep it across the site. For 16-fiber assemblies, ask for the fiber map. See our MPO polarity guide.
3. Check gender and key at every mated pair, especially where MPO-12 meets MPO-16 conversion parts. Our male vs female MPO guide explains pins.
4. Label by base. Mark trunks, cassettes and cords with their base so a Base-12 cassette never ends up on a Base-8 trunk.

How to Choose Your Base

1. List the optics for today and the next upgrade, with the connector line from each datasheet: LC duplex, MPO-12 with 8 fibers used, dual MPO-12 or MPO-16.
2. Mostly duplex? Base-12 is fine, especially if you already have Base-12 plant.
3. Mostly 4-lane parallel or 4:1 breakouts (100G SR4, 400G DR4, 800G DR4)? Choose Base-8.
4. Mostly 8-lane (400G/800G SR8, MPO-16 DR8)? Choose Base-16 and buy MPO-16 hardware throughout.
5. Mixed or uncertain? Pick the base that fits most ports, size trunks in multiples that divide well (48F and 144F divide by 8, 12 and 16), and plan conversion points for the rest.
6. Estimate lengths and quantities with our Visual Cable Quote. If you need a specific connector brand, read MTP® vs MPO first.

Frequently Asked Questions

What is the difference between Base-8 and Base-12?

Base-8 builds trunks and cassettes from 8-fiber MPO legs; Base-12 uses 12-fiber legs. Both usually use the same MPO-12 connector. Base-8 uses every fiber with 4-lane optics such as 100G SR4 and 400G DR4, while Base-12 leaves 4 of 12 fibers dark with those optics.

Is Base-12 obsolete?

No. Base-12 still works very well for duplex links and remains the most common installed MPO plant. It is less efficient only for 4-lane and 8-lane parallel optics, where conversion cords or cassettes can recover the unused fibers.

What is Base-16 MPO cabling used for?

Base-16 is built for 8-lane parallel optics: 400G SR8, 800G SR8 and 800G DR8 with an MPO-16 port. It uses MPO-16 connectors (TIA-604-18) with an offset key, usually APC polished, so all Base-16 parts must be MPO-16.

Can I use Base-8 cords on a Base-12 system?

They plug into the same MPO-12 ports, but the channel must be planned. Mixing Base-8 and Base-12 cassettes or trunks in one link can leave signals on missing fibers. Use a Base-12 to Base-8 conversion cord or cassette at a defined point.

Which base should I choose for 400G?

It depends on the optic. 400G DR4 and 400G SR4.2 use 8 fibers on MPO-12, so Base-8 fits. 400G SR8 uses 16 fibers on MPO-16, so Base-16 fits. Check the connector on each transceiver datasheet before you decide.
