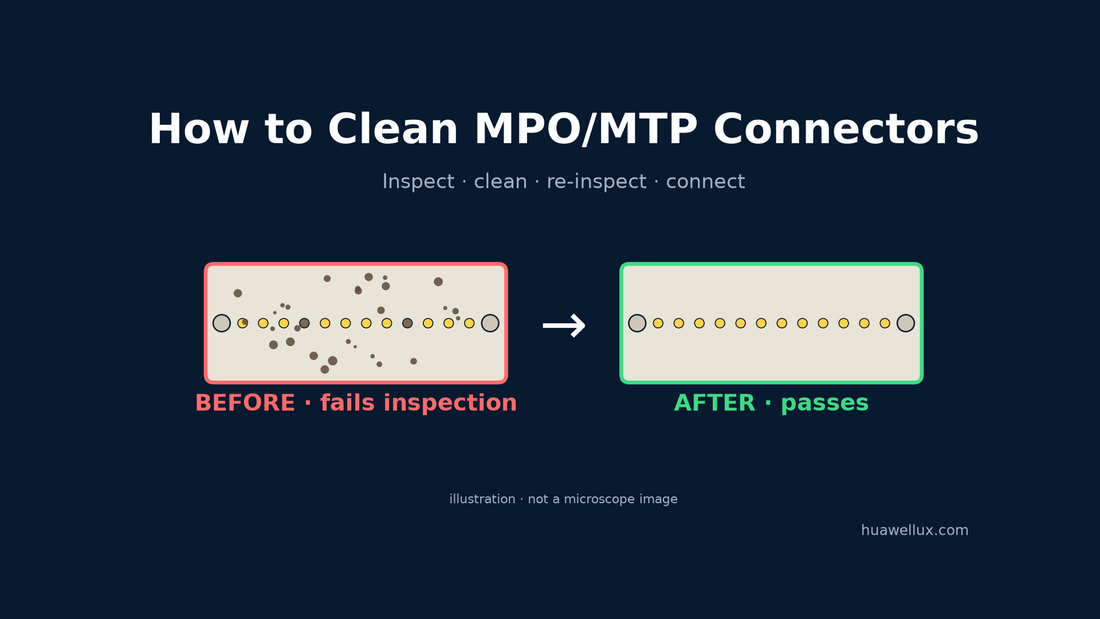

How to Clean MPO/MTP Connectors (Step-by-Step with Inspection)
To clean an MPO or MTP® connector: inspect the whole ferrule first, and if it is clean, connect it. If not, dry clean with a push-to-clean MPO cleaner, then inspect again. If contamination remains, wet clean with optical cleaning fluid, finish with a dry clean, and re-inspect. Check every fiber against IEC 61300-3-35.
Dirty end faces are the most common cause of high loss on MPO links. An MPO ferrule carries 8 to 24 fibers, or more, on a surface of about 6.4 × 2.5 mm, and a single particle can block one lane or migrate across the ferrule when it is mated. Because the fibers are so close together, and the connector is often hidden behind a panel or inside a transceiver, MPO needs a disciplined routine. This guide covers tools, the step-by-step process, the inspection criteria and the mistakes to avoid.
Why MPO Cleanliness Matters
Contamination on a fiber core causes back reflection, lowering return loss, and adds insertion loss. Loose dust that does not block a core can still move during mating, or hold the two ferrules apart so the fibers cannot make physical contact. Hard particles trapped between end faces can permanently pit or scratch the glass, and that damage cannot be cleaned away.
MPO makes this harder than single-fiber connectors:
- More fibers, one surface. If even one fiber is dirty, the whole connector needs cleaning.
- Particles migrate. Debris anywhere on the ferrule, including around the guide pins or holes, can move onto a fiber when mated.
- Static and humidity attract dust to the large flat ferrule.
- High-speed optics have small budgets. At 400G and 800G, one dirty connection can use most of the loss allowance; see our fiber type guide.
The rule used by every major cabling and test vendor is short: inspect before you connect.
Tools You Need
| Tool | Use |
|---|---|
| MPO inspection scope (video microscope with MPO tip) | See the whole ferrule and each fiber; ideally with automatic pass/fail analysis |
| Push-to-clean MPO cleaner | Dry clean connectors in hand and inside adapters; versions for pinned and unpinned ferrules |
| Lint-free MPO cleaning cassette or reel | Dry clean connectors in hand |
| Optical-grade cleaning fluid | Wet clean when dry cleaning is not enough |
| Lint-free wipes and swabs for the adapter | Clean adapters and bulkheads |
| Dust caps | Protect every unmated connector |
Push-to-clean cleaners are designed for MPO: for example, the US Conec IBC™ MPO II cleaner is rated for more than 525 cleans and works both on a cable in hand and on a connector behind a panel. Match the cleaner to the connector: pinned (male) ferrules need a cleaner that clears the guide pins, while unpinned (female) ferrules can use the standard version; see our male vs female guide.
Safety: never look into a connector or fiber end. It may carry invisible laser light. Use a video scope with a display, and switch off or disconnect the source where possible.
Step-by-Step: Inspect, Clean, Re-Inspect
Step 1: Inspect first. Remove the dust cap and inspect the entire ferrule with an MPO scope. Do not clean a connector that is already clean: every cleaning step can add static or residue. If every fiber and the whole ferrule pass, go straight to Step 6.
Step 2: Dry clean. Use a push-to-clean MPO cleaner, or an MPO cleaning cassette for a connector in hand. Align the cleaner with the connector key, push until it clicks (one full stroke), and withdraw it straight. Do not rotate or scrub the cleaner on the ferrule.
Step 3: Inspect again. Most dust comes off with a dry clean. If the ferrule now passes, connect it.
Step 4: Wet clean, if needed. Oils from fingers, films and stuck particles need a solvent. Apply a small amount of optical-grade cleaning fluid to a lint-free wipe or cleaning tip, not directly onto the connector, clean the end face, then immediately dry clean to remove any remaining fluid. Use fluid made for fiber optics: even high-purity isopropyl alcohol can leave residue, and ordinary "drug store" alcohol contains too much water.
Step 5: Inspect again. If contamination remains after two or three cycles, look for damage. A particle that does not move after repeated cleaning may be embedded or a pit, and should be judged against the defect criteria. Scratches or chips across a core mean the connector needs repolishing or replacement.
Step 6: Connect or cap. Mate the connector immediately, or put a clean dust cap on. A clean end face left open soon picks up dust again.
Inspecting to IEC 61300-3-35
IEC 61300-3-35 is the standard for visual inspection of fiber optic connector end faces. For rectangular ferrules such as MPO, it requires two checks:
- Ferrule cleanliness. The entire ferrule surface (6.4 × 2.5 mm) is inspected first, ideally with a large field of view (LFOV) microscope that shows the whole ferrule and detects debris of 10 µm. The recommended limit is no more than 10 particles between 10 and 25 µm, and none larger than 25 µm. For APC ferrules, only the angled area needs to be inspected.
- Each fiber end face. Each fiber's core and cladding zones are then inspected with a standard field of view, which detects 2 µm particles and 3 µm scratches. Acceptance limits differ for single-mode and multimode, and for PC and APC polish.
Automated analysis (Method C in the standard) compares the image to the acceptance criteria and gives a pass/fail result. It removes guesswork and creates a record for each port, which is useful for handover documentation.
| What you see | Likely cause | Action |
|---|---|---|
| Loose dust or lint | Exposure, dust caps off | Dry clean, re-inspect |
| Smear or film | Finger oils, residue | Wet clean, then dry clean |
| Particle that does not move | Embedded debris or pit | Judge against the defect criteria |
| Scratch across a core | Mating with dirt, damage | Repolish or replace |
| Contamination around pins/holes | Pinned mating debris | Clean the whole ferrule, including the pin area |
Pinned, Unpinned and In-Adapter Connectors
Unpinned (female) connectors have a flat surface and are the easiest to clean with cassettes or push-to-clean tools.
Pinned (male) connectors have two guide pins that trap debris at their base. Use a cleaner designed for pinned ferrules, and inspect the area around the pins, not only the fiber row.
Connectors inside adapters, such as cassette backs, panels and transceiver ports, cannot be seen directly. Use a scope tip and a push-to-clean cleaner made for bulkhead use, and clean both sides of the mated pair. For transceiver ports, follow the optic maker's cleaning guidance.
Dust caps reduce contamination but do not guarantee a clean connector, and the inside of a cap can itself be dirty. Factory assemblies and cassettes arrive clean, but still inspect before the first mating.
Common Mistakes
- Connecting without inspecting. Dirt is transferred to the mating ferrule and the transceiver, so one dirty connector can contaminate several.
- Cleaning without inspecting afterwards. Cleaning can move dust rather than remove it.
- Using a single-fiber method on MPO. Swabs made for 2.5 mm or 1.25 mm ferrules do not cover the MT surface.
- Too much fluid, or wet cleaning without a final dry clean, leaving residue that attracts dust.
- Blowing on connectors, which adds moisture and can spread particles.
- Leaving ports open. Cap every unused connector and adapter.
- Mismatched polish. Cleaning does not fix an APC connector mated to a flat one; see our APC vs UPC guide.
Cleanliness and Test Results
Insertion loss and return loss figures on a test report are only valid for clean connections. A Huawellux MPO or MTP® assembly is specified at insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB for single-mode (APC) and >30 dB for multimode. Field results close to these values depend on cleaning before every test and every mating. If a link fails, inspect and clean both ends before suspecting the cable. Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. A formal test report is provided on request.
For the basics of the connector itself, see What is an MTP/MPO cable?.
Frequently Asked Questions
How do you clean an MPO connector?
Inspect it first. If dirty, dry clean with a push-to-clean MPO cleaner or cleaning cassette and inspect again. If contamination remains, wet clean with optical cleaning fluid, finish with a dry clean, and re-inspect. Connect or cap it immediately once it passes.
Should MPO connectors be cleaned dry or wet?
Start dry. Dry cleaning removes most dust. Use wet cleaning only when a smear, oil or stuck particle remains, and always follow it with a dry clean so no fluid residue is left on the ferrule.
What does IEC 61300-3-35 require for MPO?
It requires inspection of the entire 6.4 × 2.5 mm ferrule for cleanliness, recommending no more than 10 particles of 10–25 µm and none above 25 µm, followed by inspection of each fiber's core and cladding zones against the acceptance criteria.
Can I clean an MPO connector with isopropyl alcohol?
Use optical-grade cleaning fluid made for fiber connectors. Even high-purity isopropyl alcohol can leave residue, and ordinary alcohol contains water. Never apply fluid without finishing with a dry clean.
How often should MPO connectors be cleaned?
Inspect every time before you connect, and clean only when the inspection shows contamination. New factory assemblies should also be inspected before their first mating, because dust caps do not guarantee a clean end face.
