Fiber Shuffle and Optical Breakout Boxes for Spine-Leaf AI Fabrics

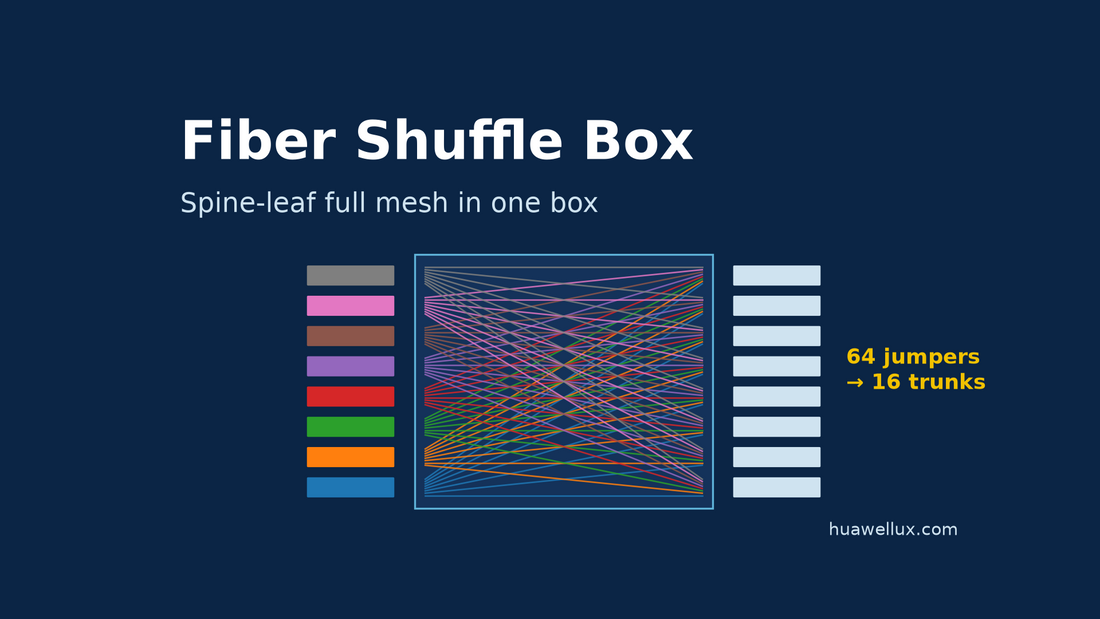

A fiber shuffle box connects every leaf switch to every spine switch through a fixed fiber mapping inside one box. Each leaf sends one multi-fiber trunk in, each spine takes one trunk out, and the box reorders the fibers so every leaf reaches every spine. For 8 leaves and 8 spines, that turns 64 separate jumpers into 16 trunks and one box (example). The fiber count does not change, but installation, labeling and changes become much simpler. The box adds connection loss, so include it in the link budget.
The Problem: Full Mesh Cabling
In a two-tier spine-leaf fabric, every leaf connects to every spine. The number of links is leaves × spines:
| Fabric (example) | Links | Duplex fibers | 8-fiber parallel links |
|---|---|---|---|
| 4 leaf × 4 spine | 16 | 32 | 128 |
| 8 leaf × 8 spine | 64 | 128 | 512 |
| 16 leaf × 16 spine | 256 | 512 | 2,048 |
All rows are derived: duplex = 2 fibers per link; parallel = 8 fibers per link, as in 400G DR4 (4 transmit, 4 receive). Point-to-point jumpers for 64 links cross every row in between. Each move, add or change means tracing one cord through the bundle.
See structured vs point-to-point cabling.
How a Shuffle Box Works
Take 8 leaves and 8 spines with duplex links:
- Each leaf has 8 duplex ports, one per spine. A leaf trunk (MPO-16, 16 fibers) carries all 8 links: fibers 1–2 to spine 1, 3–4 to spine 2, and so on.
- Inside the box, the fibers are reordered. Pair j from leaf i goes to pair i on the trunk for spine j.
- Each spine receives one spine trunk (MPO-16) with one link from each of the 8 leaves.
Result: 8 leaf trunks + 8 spine trunks + 1 shuffle box instead of 64 jumpers. The same idea works with MPO-12 or MPO-24, or with parallel links, where each "link" is a group of 8 fibers instead of 2 (example: 64 fibers per leaf trunk for 400G DR4).
The box can be a cassette for a standard enclosure or a 1RU–2RU box. Inside, the mapping is made with a fiber harness or a flexible fiber circuit. The mapping is fixed at the factory, so it must match the fabric design.
Design Checklist
- Fabric size and growth. A box is built for one leaf × spine count. Plan for the final size, or use one box per pod.
- Link type. Duplex (2 fibers) or parallel (8 or 16 fibers) per link. This sets the trunk fiber count. See the MPO fiber count guide.
- Polarity. The shuffle must keep Tx to Rx on every path. Specify the polarity method end to end, see MPO polarity.
- Loss budget. A box with MPO adapters on both sides adds two mated connections. At Huawellux's ≤0.35 dB per connection, that is up to 0.70 dB (example at the specification limit). Check the module's channel loss limit with the insertion loss budget guide.
- APC or UPC. Match the transceiver: single-mode parallel modules use APC. See APC vs UPC.
- Labels and map. Label every port with leaf or spine number and include the mapping table with the box. See fiber cable labeling.
- Space. Count trunks and boxes per rack with the enclosure sizing guide.
When a Shuffle Box Makes Sense
| Situation | Shuffle box? |
|---|---|
| Small fabric, few links, frequent changes | Usually not, use patch panels and cords |
| 8 × 8 or larger full mesh, built once per pod | Yes, it saves cords, time and errors |
| AI training pods built from a repeated design | Yes, the same box for every pod |
| Fabric size not decided | Wait, or design for the final size |
For the wider picture of AI cluster cabling, see AI cluster fiber cabling.
Related reading: shuffles fix a mesh in passive fiber; an optical circuit switch makes the same kind of mesh reconfigurable.
Frequently Asked Questions
What is a fiber shuffle box?
A passive box that reorders fibers between multi-fiber trunks, so every input trunk connects to every output trunk. It builds a full mesh, such as spine-leaf, without individual jumpers.
How many cables does a shuffle box save?
For 8 leaves and 8 spines, 64 duplex jumpers become 16 MPO-16 trunks and one box (example). The fiber count stays the same.
Does a shuffle box add loss?
Yes. A box with MPO adapters on both sides adds two mated connections. At Huawellux's ≤0.35 dB per connection, that is up to 0.70 dB at the specification limit.
Can a shuffle box be changed later?
The internal mapping is fixed. To change the fabric size, replace the box or add another box for the new pod.
Does a shuffle box work with parallel optics?
Yes. Each link is a group of fibers, for example 8 fibers for 400G DR4, and the box shuffles groups instead of pairs.
Huawellux Custom Shuffle Assemblies
Huawellux builds custom MPO harnesses and cassettes to a customer mapping drawing, including shuffle mappings for spine-leaf fabrics, and OEM labeling on request. Send the leaf and spine count, link type, connector type and polarity, and we confirm the mapping in the quotation. Huawellux can also supply bend-insensitive fiber.
Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.
Huawellux replies to inquiries within 24 hours. Custom orders typically take 1–5 business days to complete production, with final timing confirmed case by case in the quotation. For special/custom requirements, MOQ is 2 km of fiber length. Standard listed patch cords have no formal MOQ. The sample fee is credited against the bulk order.
