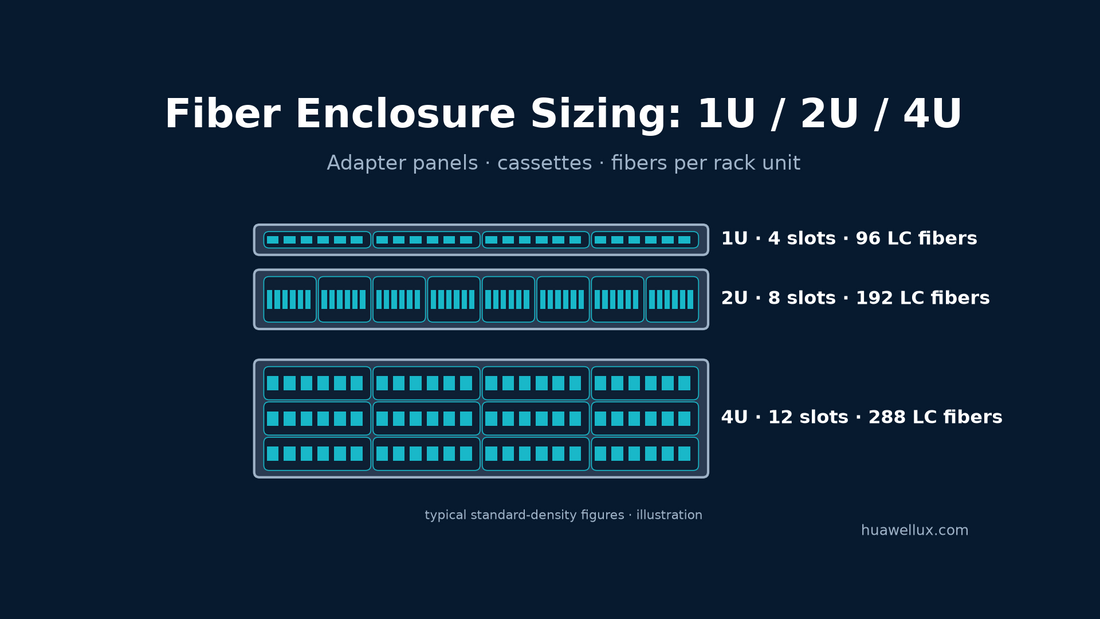

Front view of 1U, 2U and 4U fiber rack enclosures with adapter panel slots and typical LC fiber capacity for each

Fiber Adapter Panels and Rack Enclosures: 1U/2U/4U Sizing Guide

To size a fiber rack enclosure, count the fibers you need to terminate, divide by the fibers per adapter panel or cassette, and divide that by the slots per enclosure. In a standard design, each slot holds a panel of 12 LC duplex adapters (24 fibers), and a 1U enclosure holds 3 to 4 slots (72 to 96 fibers), a 2U holds 6 to 8 (144 to 192 fibers) and a 4U holds 12 (288 fibers). High-density systems fit more, and MPO adapter panels multiply the count again. Then add 25–50% for growth.

Rack space is expensive, and fiber counts in data centers keep rising. But the densest enclosure is not always the best one: you still have to reach every port, route the patch cords and keep bend radius under control. This guide explains rack units, how adapter panels and cassettes fill an enclosure, typical capacities for 1U, 2U and 4U, and a step-by-step sizing method with a worked example.

Rack Units: What 1U, 2U and 4U Mean

A rack unit (U or RU) is the standard height of equipment in a 19-inch rack: 1U = 1.75 in (44.45 mm). So:

Size Height Typical use
1U 44.45 mm (1.75 in) Top-of-rack and server cabinets, small fiber counts
2U 88.9 mm (3.5 in) Switch racks and zone distribution, medium counts
4U 177.8 mm (7.0 in) Main distribution and cross-connects, high counts

A fiber enclosure is a steel housing in one of these heights. It mounts in the rack, protects the connections, manages slack and gives a front patching field. Inside, it accepts modules: adapter panels, MPO-LC cassettes or splice trays. See our fiber management enclosures.

What Goes in an Enclosure

Fiber adapter panels (FAPs)

An adapter panel is a flat plate with a row of adapters. Connectors plug in from both sides: the trunk or harness at the back, patch cords at the front. Common versions:

Adapter panel Ports Fibers
6 × LC duplex 6 12
12 × LC duplex 12 24
6 × SC duplex 6 12
MPO adapter panel, 6 ports 6 MPO 72 (MPO-12) or 144 (MPO-24)
MPO adapter panel, 12 ports 12 MPO 144 (MPO-12) or 192 (MPO-16)

An MPO adapter panel passes multi-fiber connections straight through: an MPO trunk at the back and an MPO patch cable or harness at the front. It is the densest way to fill a slot, and is used for parallel optics such as 400G and 800G links. Because MPO adapters join connectors of opposite gender, plan pinned and unpinned ends; see male vs female MPO connectors.

MTP-LC cassettes

A cassette has an MPO connection at the rear and LC duplex ports at the front, with a factory harness inside. A 12-fiber cassette gives 6 LC duplex ports; a 24-fiber cassette gives 12. See what is an MTP-LC cassette.

Splice trays

For field-terminated or outside-plant cable, splice trays hold fusion splices to pigtails. They take a slot like a panel, typically 12 or 24 fibers each.

Typical Capacity per Enclosure Size

Capacities depend on the enclosure design. The table below shows typical industry figures for duplex LC patching.

Enclosure Standard slots Standard LC fibers High-density LC fibers
1U 3–4 72–96 up to 144
2U 6–8 144–192 up to 288
4U 12 288 up to 576

With MPO adapter panels, the same slots carry far more fibers, because each port carries 8 to 24 fibers instead of 2. For example, 4 slots × 12 MPO-12 ports = 576 fibers in 1U, before any growth allowance.

Bar chart of fibers per rack unit for standard LC, high-density LC and MPO adapter panels in 1U, 2U and 4U enclosures

Density is not the only goal

  • Finger access. At very high LC densities, removing one cord without disturbing the next becomes difficult. Push-pull tab boots help.
  • Patch cord management. A 1U enclosure with 144 fibers sends 72 duplex cords to the front. You need horizontal and vertical managers to route them.
  • Bend radius. Trunks entering at the rear need space to turn. Bend-insensitive fiber helps, but tight routing still adds risk.
  • Sliding trays. Drawers that slide forward or back make it possible to work on one module without removing the enclosure.

How to Size an Enclosure: Step by Step

  1. Count the fibers to terminate today. From the cabling design: trunks × fiber count.
  2. Choose the interface at the front. LC duplex (via cassettes or LC panels) for duplex optics, or MPO (via MPO adapter panels) for parallel optics and pass-through.
  3. Divide by the fibers per module to get the number of panels or cassettes.
  4. Divide by the slots per enclosure for each size, and round up.
  5. Add growth. Plan 25–50% spare slots, or leave rack space above for a second enclosure.
  6. Check cable management. Add horizontal managers, and confirm patch cord routing to the equipment.
  7. Match the fiber system. Base-8, Base-12 and Base-16 trunks fill cassettes and panels differently; see Base-8 vs Base-12 vs Base-16.

Fiber count by system

Trunk system Cassette LC ports per cassette Cassettes per 144 fibers
Base-8 8F 4 duplex 18
Base-12 12F 6 duplex 12
Base-12, 24F 24F 12 duplex 6
Base-16 16F 8 duplex 9

Worked Example: 144 Fibers to LC

A server row needs 144 fibers delivered as LC duplex ports, using a 144-fiber MTP® trunk broken out at the rack.

Option A: 12-fiber cassettes - 144 ÷ 12 = 12 cassettes, each with 6 LC duplex ports (72 duplex ports total). - 12 slots: a standard 4U enclosure (12 slots), full. - With 24-fiber cassettes: 144 ÷ 24 = 6 cassettes, which fit a standard 2U enclosure with 6 slots, full.

Option B: LC adapter panels with a breakout harness - 144 ÷ 24 = 6 panels of 12 LC duplex adapters, fed by MPO-LC harnesses at the back. - Fits a standard 2U enclosure (6 slots).

Add growth: with 50% growth, plan 216 fibers. That is 9 panels of 24 fibers: a 2U with 8 slots is not enough, so choose a 4U, or two 2U enclosures.

Patch cord space: 72 duplex patch cords leave the front. Add a 1U or 2U horizontal cable manager below the enclosure.

Assembly of a 2U fiber enclosure from empty to six modules and 144 fibers

Mixing Panels, Cassettes and Splices

Most enclosures accept panels, cassettes and splice trays in the same slots, so you can mix them:

  • Cassettes for MPO trunks that need LC ports.
  • MPO adapter panels for parallel optics and pass-through trunk connections.
  • LC or SC panels for single-fiber links; see LC vs SC fiber connectors.
  • Splice trays for outside-plant or field cable.

Label every slot with its content, fiber type and polarity method, so the mix stays readable; see the MPO polarity guide.

Loss Budget Reminder

Every adapter in an enclosure is a mated connector pair, and a cassette adds two. Before you add an extra patch point for flexibility, check the channel budget; see our MPO insertion loss budget guide. Keep dust caps on unused ports, and inspect and clean every connector before mating; see how to clean MPO/MTP connectors.

Huawellux Enclosures, Panels and Cassettes

Our rack-mount fiber enclosures come in fixed rack-mount and sliding versions, with these listed capacities:

Huawellux enclosure Listed fiber capacity
1U 144F
2U 288F
4U 576F

They take snap-in modules:

  • Fiber adapter panels: MTP® 6-port, MPO 6-port, LC duplex 12-port, and blank panels.
  • MTP/MPO fiber cassettes: MTP-to-LC or MPO-to-LC, in 12F and 24F, OS2, OM4 or OM5.

Confirm polarity, connector gender, loss grade and enclosure loading with us before production; custom cable entry, bend-radius routing and labels are available on request.

Huawellux Specification

Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.

Frequently Asked Questions

How many fibers fit in a 1U enclosure?

A standard 1U enclosure with 3 to 4 adapter panel slots holds 72 to 96 LC fibers. High-density designs reach up to 144 LC fibers in 1U, and MPO adapter panels carry several times more because each port has 8 to 24 fibers.

What is the difference between an adapter panel and a cassette?

An adapter panel is a plate of pass-through adapters; connectors plug in at both sides. A cassette contains an internal MPO-to-LC harness, so an MPO trunk at the rear becomes LC duplex ports at the front.

What is an MPO adapter panel?

A panel of MPO adapters that joins an MPO trunk at the rear to an MPO patch cable or harness at the front. It is used for parallel optics and for the highest fiber density per rack unit.

Should I choose 1U, 2U or 4U?

Choose by fiber count plus growth, and by access. 1U suits server cabinets and small counts; 2U suits most switch racks; 4U suits main distribution and cross-connects with several hundred fibers.

How much spare capacity should I plan?

Plan 25 to 50% spare slots, or reserve rack space for another enclosure. Adding a module to an existing enclosure is much easier than re-cabling into a new one.
