Insertion Loss vs Return Loss: What the dB Values Mean

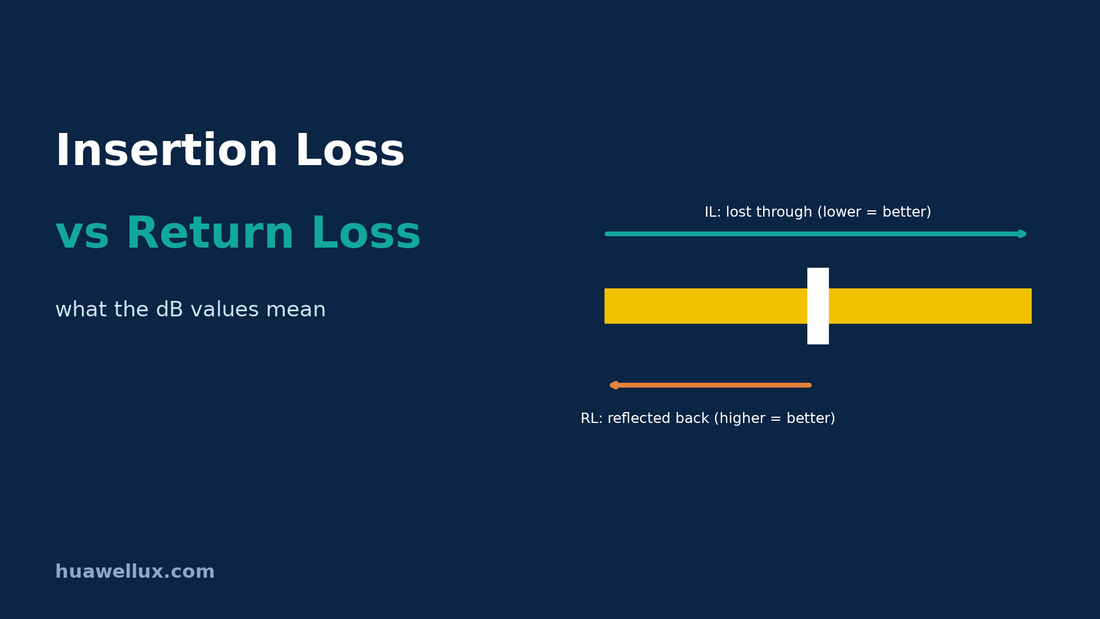

Insertion loss (IL) is the light lost through a connection; return loss (RL) is how strongly light is reflected back from it. Both are in dB, but they read in opposite directions: lower IL is better, higher RL is better. ANSI/TIA-568.3-D allows up to 0.75 dB IL per mated connector pair and requires RL of at least 20 dB (multimode) and 35 dB (single-mode). Good factory assemblies are much better: IL ≤0.35 dB, single-mode UPC ≥50 dB, APC ≥60 dB.
Scope of this guide: what IL and RL mean for any fiber connector, and what values to specify. For MPO loss grades see low-loss vs standard MPO; for channel totals see MPO insertion loss budget. Values checked against ANSI/TIA-568.3-D, IEC 61300-3-4 and IEC 61300-3-6 on 29 October 2026.
Definitions and Formulas
| Insertion loss (IL) | Return loss (RL) | |
|---|---|---|
| Measures | Power lost passing through | Power reflected back |
| Formula | IL = −10·log₁₀(P_out / P_in) | RL = −10·log₁₀(P_reflected / P_in) |
| Better is | Lower | Higher |
| Main causes | Core misalignment, gap, dirt, fiber mismatch | Air gap, polish, end-face damage, dirt |
| IEC test method | IEC 61300-3-4 | IEC 61300-3-6 |
| Field test | OLTS (Tier 1) | OTDR or RL meter |
Reflectance is the same quantity with the opposite sign: RL 50 dB = reflectance −50 dB.
What the Numbers Mean in Power
| Value | Light passed or reflected |
|---|---|
| IL 0.35 dB | 92.3% passes |
| IL 0.75 dB | 84.1% passes |
| RL 20 dB | 1% reflected |
| RL 35 dB | 0.03% reflected |
| RL 50 dB | 0.001% reflected |
| RL 60 dB | 0.0001% reflected |
Computed from the formulas above (10^(−dB/10)).
Standard Limits vs Typical Factory Values
| Parameter | TIA-568.3-D minimum requirement | Typical factory low-loss assembly |
|---|---|---|
| IL per mated pair | ≤0.75 dB | ≤0.35 dB |
| Splice IL | ≤0.3 dB | — |
| RL multimode | ≥20 dB | >30 dB |
| RL single-mode | ≥35 dB | ≥50 dB UPC, ≥60 dB APC |
| RL single-mode analog video | ≥55 dB | APC |
Why Each Matters
- IL eats the power budget. Every mated pair subtracts from the dB the optics can tolerate. 400G and 800G multimode budgets are under 2 dB for the whole channel (for example, 800GBASE-SR8 allows 1.8 dB on OM4), so three standard 0.75 dB pairs would not fit. See MPO cassette vs direct trunk.
- RL disturbs the laser. Reflections feed back into single-mode lasers and add noise, especially with PAM4 and analog signals. That is why single-mode parallel optics use APC MPO; see APC vs UPC.
- Dirt hurts both. A contaminated end face raises IL and lowers RL at once. Inspect before every mating; see how to clean MPO connectors.
How They Are Tested
- IL: a stable source and power meter with reference cords; set a 0 dB reference, insert the device and read the loss. Factory tests follow IEC 61300-3-4; field Tier 1 tests use an OLTS with encircled-flux launch for multimode. See Tier 1 vs Tier 2 testing.
- RL: an RL meter or OTDR measures reflected power at the connector (IEC 61300-3-6). The far end must be terminated (index-matched or wrapped) so its own reflection is not counted.
- Report: IL and RL per fiber, per end, at each wavelength (850/1300 nm multimode; 1310/1550 nm single-mode). See factory test reports explained.
Reading a Test Report
- Check the wavelength: single-mode should show 1310 and 1550 nm.
- Check maximum, not average: a 0.20 dB average can hide one 0.6 dB fiber.
- Check the reference method: one-cord reference includes both connectors.
- Check RL against polish: an APC connector reading 50 dB suggests damage or dirt.
Frequently Asked Questions
Is a higher or lower return loss better?
Higher. Return loss is the ratio of input to reflected power, so 60 dB means far less reflection than 40 dB.
What is a good insertion loss for a fiber connector?
TIA-568.3-D allows 0.75 dB per mated pair. Low-loss factory assemblies are typically ≤0.35 dB.
What is the minimum return loss for single-mode connectors?
TIA-568.3-D requires at least 35 dB for single-mode and 20 dB for multimode; 55 dB for single-mode analog video. UPC is typically ≥50 dB and APC ≥60 dB.
Are return loss and reflectance the same?
They describe the same reflection with opposite signs: RL 50 dB equals reflectance −50 dB.
Does cleaning improve insertion loss and return loss?
Yes. Dirt on the end face raises insertion loss and lowers return loss; inspect and clean before mating.
Huawellux IL and RL Specification
Huawellux's specification for MPO and MTP® assemblies is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥60 dB (single-mode APC), ≥50 dB (single-mode UPC) and >30 dB (multimode) on each product page. Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.
Huawellux replies to inquiries within 24 hours. Listed standard products are prepared in 1–7 business days. Custom orders typically take 1–5 business days to complete production, with final timing confirmed case by case in the quotation. For special/custom requirements, MOQ is 2 km of fiber length. Standard listed patch cords have no formal MOQ. Labels printed to your own numbering scheme are free. The sample fee is credited against the bulk order. Standard products carry a one-year limited warranty under the published returns and warranty policy.
