Low-Loss vs Standard MPO: Insertion Loss Grades and Why They Matter

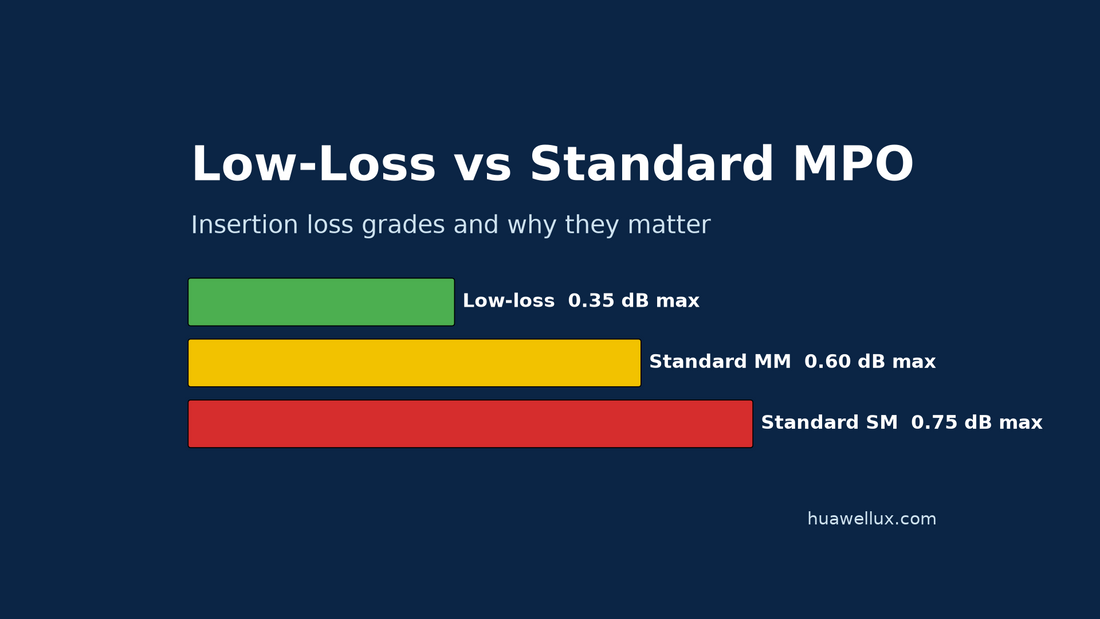

Low-loss MPO connectors are built to a tighter insertion loss limit than standard ones. US Conec's published ferrule data gives a maximum of 0.35 dB per mated pair for its low-loss MT ferrules, single-mode and multimode, against 0.75 dB maximum for standard single-mode and 0.60 dB maximum for standard multimode ferrules. The difference matters at 400G and 800G: an 800GBASE-SR8 channel allows only 1.8 dB on OM4, so at 100 m it fits two standard multimode mated pairs but four low-loss pairs.
Scope of this guide: choosing a connector grade. To add up a whole channel see the MPO insertion loss budget; for the ferrule geometry that makes low loss possible see MPO interferometer end-face geometry.
This guide explains what the loss grades mean, the difference between typical and maximum loss, how the IEC grades work, and how to turn a connector grade into a channel design.
Standard vs Low-Loss: The Numbers
US Conec, the maker of the MTP® connector and MT ferrule, publishes these mated-pair insertion loss values:
| Ferrule | Typical | Maximum (single fiber) | Return loss |
|---|---|---|---|
| Single-mode low-loss | 0.10 dB | 0.35 dB | >60 dB (8° angle polish) |
| Single-mode standard | 0.25 dB | 0.75 dB | >60 dB (8° angle polish) |
| Multimode low-loss | 0.10 dB | 0.35 dB | >20 dB |
| Multimode standard | 0.20 dB | 0.60 dB | >20 dB |
Multimode values are measured at 850 nm with an encircled flux launch. For comparison, the TIA-568.3-D cabling standard allows 0.75 dB per connector pair, so a standard single-mode MPO sits right at the TIA allowance while a low-loss one uses less than half of it.
Typical vs Maximum: Which One to Design With
Loss specifications come in two forms:
- Typical is the value most mated pairs achieve, averaged over all fibers. Low-loss and standard ferrules are close here: 0.10 dB vs 0.20–0.25 dB.
- Maximum is the worst single fiber you can get. This is where grades differ most: 0.35 dB vs 0.60–0.75 dB.
A parallel link fails if any single lane exceeds its budget, so design with the maximum, not the typical. Two cables that look the same on a typical number can be very different on a worst-case fiber.
IEC Grades and Random Mating
Factory test reports usually measure a cable against a reference-grade connector. In the field, connectors are mated randomly with other production connectors. IEC 61755-1 defines grades by the loss that at least 97% of random matings meet. US Conec's current catalog gives, for random mating:
| Ferrule | Random-mated loss (≥97%) | Mean random-mated loss |
|---|---|---|
| Single-mode low-loss | ≤0.25 dB | ≤0.12 dB |
| Single-mode standard | ≤0.50 dB | ≤0.25 dB |
| Multimode low-loss | ≤0.25 dB | ≤0.12 dB |
| Multimode standard | ≤0.45 dB | ≤0.20 dB |
The single-mode low-loss ferrule exceeds IEC Grade B; the standard single-mode ferrule meets Grade C. Note that the IEC single-mode MPO grade is defined for up to 12 fibers, APC only, and expected yield varies with fiber count.
Why Grades Matter at 400G and 800G
Each generation of parallel optics has a tight total channel loss. IEEE limits for common applications:
| Application | Reach | Max channel loss |
|---|---|---|
| 100GBASE-SR4 (OM4) | 100 m | 1.9 dB |
| 400GBASE-SR8 (OM4) | 100 m | 1.9 dB |
| 800GBASE-SR8 (OM4) | 100 m | 1.8 dB |
| 800GBASE-DR8 (OS2) | 500 m | 3.0 dB |
The channel loss is fiber attenuation plus every mated pair. With fewer dB to spend, the connector grade decides how many connections you can have.
Worked Budgets
800GBASE-SR8 on 100 m of OM4. Using the IEEE cabled-fiber value of 3.5 dB/km at 850 nm, the fiber takes 0.1 km × 3.5 = 0.35 dB. That leaves 1.8 − 0.35 = 1.45 dB for connections.
| Mated pairs | Standard MM (0.60 dB max) | Low-loss (0.35 dB max) |
|---|---|---|
| 2 | 1.20 + 0.35 = 1.55 dB ✓ | 0.70 + 0.35 = 1.05 dB ✓ |
| 3 | 1.80 + 0.35 = 2.15 dB ✗ | 1.05 + 0.35 = 1.40 dB ✓ |
| 4 | 2.40 + 0.35 = 2.75 dB ✗ | 1.40 + 0.35 = 1.75 dB ✓ |
Standard multimode allows 2 mated pairs; low-loss allows 4. That is the difference between a point-to-point link and a structured link with two patch panels plus a cross-connect.
800GBASE-DR8 on 500 m of OS2. Using 0.4 dB/km, the fiber takes 0.5 × 0.4 = 0.20 dB, leaving 2.80 dB.
| Mated pairs | Standard SM (0.75 dB max) | Low-loss (0.35 dB max) |
|---|---|---|
| 3 | 2.25 + 0.20 = 2.45 dB ✓ | 1.05 + 0.20 = 1.25 dB ✓ |
| 4 | 3.00 + 0.20 = 3.20 dB ✗ | 1.40 + 0.20 = 1.60 dB ✓ |
| 8 | — | 2.80 + 0.20 = 3.00 dB ✓ (at the limit) |
These examples use worst-case values for every pair, which is conservative. See MPO insertion loss budget and 800G MPO-16 link design.
What "Low-Loss" Should Mean on a Datasheet
"Low-loss" is a marketing word unless it comes with numbers. When comparing assemblies, ask for:
- Maximum insertion loss per mated pair, not just typical.
- The reference condition: against a reference connector, or random-mated.
- Wavelength and launch condition for multimode (850 nm, encircled flux).
- Return loss: for single-mode APC, >60 dB is the common benchmark.
- Per-fiber test results for every cable, not a sample.
- End-face inspection before shipment, because contamination adds loss to any grade.
When Standard Grade Is Enough
Low-loss is not always necessary. Standard grade can work when:
- The link is short and point-to-point with one or two mated pairs.
- The application has more budget, such as single-mode at moderate reach with few connections.
- The channel is temporary or for lab use.
For structured cabling with panels, cassettes or cross-connects at 400G and 800G, low-loss is the safer default. See trunk vs patch cable and the 400G/800G migration roadmap.
Reading an MPO Test Report
A useful MPO test report lists, for every cable:
- Insertion loss per fiber, at the stated wavelength (850 nm for multimode; the stated test wavelengths for single-mode). Check the worst fiber, not the average.
- Return loss per fiber for single-mode, and the polish type (APC or UPC).
- The test method and reference, so you know whether results are against a reference connector.
- Polarity verification and fiber mapping.
- End-face inspection result for both ends.
- The serial number printed on the cable label, so the report matches the cable in your rack.
Keep the reports. When you migrate to a faster optic later, they show at once which channels still fit the new budget.
Common Mistakes
- Comparing a typical figure with a maximum figure. A "0.20 dB" typical standard cable is not better than a "0.35 dB" maximum low-loss cable.
- Budgeting with typical values. The worst lane decides whether the link works.
- Adding panels without re-checking loss. Every new mated pair spends budget.
- Mixing grades in one channel without recalculating. One standard-grade cord can use the margin the low-loss trunk saved.
- Skipping inspection. A dirty low-loss connector performs worse than a clean standard one.
Keep Low Loss Low: Cleaning
A low-loss connector only performs when clean. Dust on one fiber can push that lane past its budget. Inspect and clean every MPO before mating, and keep dust caps on until the moment of connection. See how to clean MPO/MTP connectors.
Huawellux Assemblies and Loss
Huawellux's specification for MPO and MTP® assemblies (identical for both) is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥50 dB (single-mode UPC), ≥60 dB (single-mode APC) and >30 dB (multimode). Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.
Our ≤0.35 dB maximum equals the low-loss maximum in the table above, so the low-loss columns of the worked budgets apply to Huawellux MTP/MPO trunk cables, MPO patch cables and breakout harnesses.
Frequently Asked Questions
What is a low-loss MPO connector?
An MPO built to a tighter insertion loss limit, typically 0.35 dB maximum per mated pair, versus 0.60 dB (multimode) or 0.75 dB (single-mode) for standard grade per US Conec ferrule data.
What is a low-loss MT ferrule?
The low-loss MT ferrule grade. US Conec's low-loss MT ferrules specify 0.10 dB typical and 0.35 dB maximum insertion loss, for single-mode and multimode.
Should I design with typical or maximum loss?
Maximum. A parallel link fails if any single lane is over budget, and the maximum covers the worst fiber.
How many MPO connections fit an 800G SR8 link?
At 100 m of OM4 with a 1.8 dB limit, two standard multimode pairs (0.60 dB) or four low-loss pairs (0.35 dB), using worst-case values.
Does a low-loss connector need special cleaning?
No special method, but it must be clean: contamination adds loss to any grade. Inspect and clean before every mating.
