Single-Mode vs Multimode Fiber: Reach, Cost and When to Use Each
Single-mode fiber has a core of about 9 µm, runs at 1310/1550 nm with laser optics and reaches 500 m to 10 km and beyond at any modern speed. Multimode fiber has a 50 µm core, runs at 850 nm with low-cost VCSEL optics and reaches about 70–150 m at 100G to 800G (300–400 m at 10G). Choose multimode for short in-row and in-room links where optics cost dominates; choose single-mode (OS2) for anything longer, for campus and DCI, and for links you expect to upgrade to 1.6T.
Scope of this guide: the family-level choice between single-mode and multimode for any link, duplex or parallel. For grade-by-grade detail inside MPO links (OM3 vs OM4 vs OM5 vs OS2), see OS2 vs OM3 vs OM4 vs OM5. Values checked against IEEE 802.3, ANSI/TIA-568.3-D and ISO/IEC 11801 on 29 October 2026.

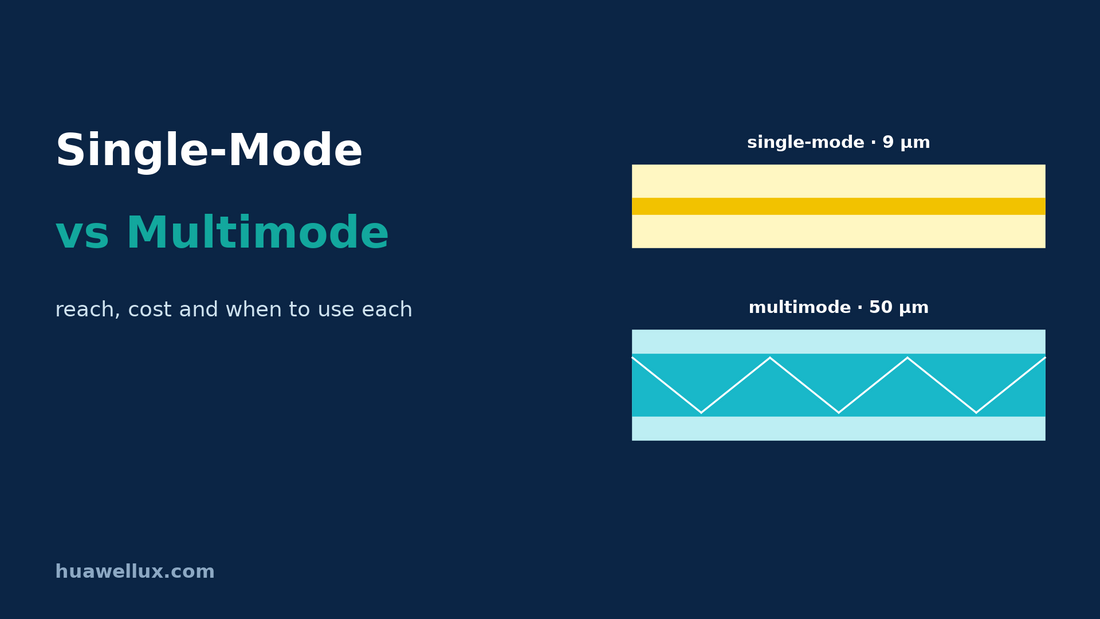

The Physical Difference
| Single-mode (OS2) | Multimode (OM3 / OM4 / OM5) | |
|---|---|---|
| Core / cladding | ~9 µm / 125 µm | 50 µm / 125 µm |
| Light paths | One mode | Many modes |
| Typical light source | Laser (DFB, EML, silicon photonics) | VCSEL |
| Operating wavelengths | 1310 nm, 1550 nm | 850 nm (OM5 also to 953 nm) |
| Cabled attenuation max | 0.4 dB/km (OS2, ISO/IEC 11801) | 3.0 dB/km at 850 nm (TIA-568.3-D) |
| What limits reach | Loss and dispersion | Modal bandwidth |
| Jacket colour (TIA-598) | Yellow | Aqua (OM3/OM4), lime green (OM5) |
| Connector colour | Blue (UPC), green (APC) | Aqua or beige |
Both families share a 125 µm cladding, so they fit the same LC, SC and MPO ferrules, but they must never be mixed in one link: a 50 µm core launching into a 9 µm core loses most of its light.
Reach at Common Ethernet Speeds
IEEE 802.3 reach for each physical layer (PMD):
| Speed | Multimode (OM3 / OM4) | Single-mode (OS2) |
|---|---|---|
| 10G | 10GBASE-SR: 300 m / 400 m | 10GBASE-LR: 10 km |
| 100G | 100GBASE-SR4: 70 m / 100 m | 100GBASE-DR: 500 m · LR4: 10 km |
| 400G | 400GBASE-SR8: 70 m / 100 m · SR4.2: 70 m / 100 m (150 m on OM5) | 400GBASE-DR4: 500 m · FR4: 2 km · LR4-6: 6 km |
| 800G | 800GBASE-SR8: 60 m / 100 m | 800GBASE-DR8: 500 m · DR8-2: 2 km |
Pattern: every multimode generation since 10G has shortened reach, while single-mode reach is set by the optics and stays at 500 m to 10 km. That is why new backbones are increasingly single-mode.
Cost: Cable vs Optics
- Cable and assemblies: single-mode and multimode patch cords and trunks are similar in price; OS2 glass is often not more expensive than OM4.
- Optics: multimode VCSEL transceivers have historically cost less than single-mode transceivers at the same speed, and that gap is the main reason multimode still exists. At 400G and 800G the gap has narrowed as DR4/DR8 single-mode modules became the volume parts in AI clusters (estimate, varies by vendor and volume).
- Lifetime: multimode may need re-cabling when a new speed's reach drops below your link length. Single-mode rarely does.
When to Choose Each
| Choose multimode when… | Choose single-mode when… |
|---|---|
| Links are within a row or room, under ~100 m | Any link may exceed 100–150 m |
| Existing equipment and cabling are multimode | Campus, building-to-building or DCI |
| You buy SR-class optics in volume | You plan DR4/DR8 at 400G–1.6T |
| You need BiDi/SWDM over existing duplex pairs (OM5 helps) | You want cabling that outlives several optics generations |
For 1.6T and the expected 3.2T, the parallel PMDs being standardized are single-mode; see IEEE 802.3dj and 1.6T and 3.2T outlook.
Common Mistakes
- Mixing fiber types in a link. A multimode patch cord in a single-mode link (or the reverse) adds many dB of loss; check jacket and connector colours.
- Mixing APC and UPC. Single-mode APC (green) must mate with APC; see APC vs UPC.
- Assuming 10G multimode reach at 400G. 300 m at 10G becomes 70–100 m at 400G.
- Ignoring the loss budget. Short multimode links still fail if there are too many mated pairs; see MPO insertion loss budget.
Frequently Asked Questions
Can I use single-mode fiber with multimode transceivers?
No. Multimode optics launch into a 50 µm core; coupling into a 9 µm core loses most of the light. Use matching fiber and optics.
How far can multimode fiber go?
At 10G, 300 m on OM3 and 400 m on OM4. At 100G to 800G, about 60–100 m on OM4 and up to 150 m on OM5 with 400GBASE-SR4.2 (IEEE 802.3).
Is single-mode fiber more expensive than multimode?
The cable and assemblies cost about the same; single-mode transceivers have historically cost more. The gap is smaller at 400G and 800G.
Which fiber should I install for 800G and 1.6T?
OS2 single-mode for anything beyond a short in-row link. 800G SR8 multimode works to about 100 m on OM4; 1.6T parallel optics are single-mode.
What colour is single-mode fiber?
Yellow jacket per TIA-598; blue UPC or green APC connectors. Multimode OM3/OM4 is aqua and OM5 lime green.
Huawellux Single-Mode and Multimode Assemblies
Huawellux builds LC/SC patch cords and MTP/MPO assemblies in OS2 (G.657.A1 or G.657.A2), OM4 and OM5 as listed options; OM3 and other grades are built to order.
Huawellux's specification for MPO and MTP® assemblies is insertion loss ≤0.35 dB for single-mode and multimode, with return loss >60 dB single-mode (OS2, APC) and >30 dB multimode (OM3/OM4/OM5). LC and SC patch cords are listed at insertion loss ≤0.35 dB and return loss ≥60 dB (single-mode APC), ≥50 dB (single-mode UPC) and >30 dB (multimode) on each product page. Every Huawellux product receives end-face visual inspection under a 400x video microscope and is tested for insertion loss (IL) and return loss (RL) before it ships. Interferometric end-face geometry (fiber height, coplanarity, end-face angle and radius) is checked by sample-based testing in standard production, and 100% interferometer testing of a batch is available on request. Dust caps are fitted on every connector, and a formal test report is available on request.
Huawellux replies to inquiries within 24 hours. Listed standard products are prepared in 1–7 business days. Custom orders typically take 1–5 business days to complete production, with final timing confirmed case by case in the quotation. For special/custom requirements, MOQ is 2 km of fiber length. Standard listed patch cords have no formal MOQ. Labels printed to your own numbering scheme are free. The sample fee is credited against the bulk order. Standard products carry a one-year limited warranty under the published returns and warranty policy.
