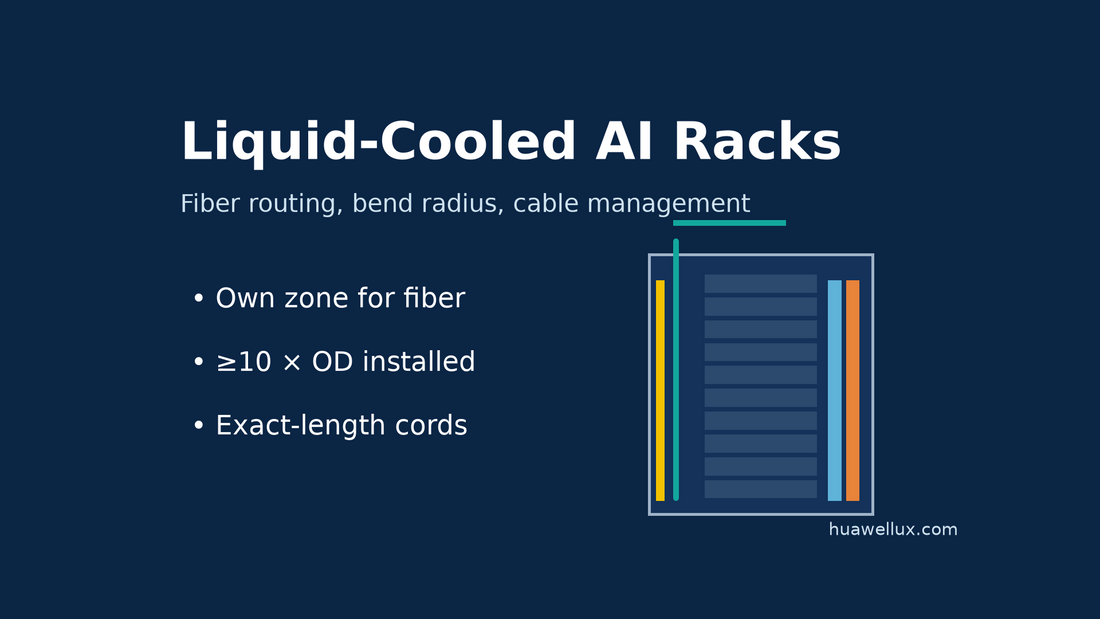

Liquid-Cooled AI Racks: Fiber Routing, Bend Radius and Cable Management

In a liquid-cooled AI rack, the rear is crowded: coolant manifolds with quick connectors, a power busbar and hoses take the space that cable managers used to have. Fiber has to be planned into its own zone, away from manifolds and service paths. Keep every cable at or above its minimum bend radius: 10 × the outside diameter installed and 20 × while pulling for cables with more than four fibers (TIA-568.3-D). Use shorter, exact-length cords, front or top routing where the design allows it, and bend-insensitive fiber for extra margin.

What Changes in a Liquid-Cooled Rack

	Air-cooled rack	Liquid-cooled AI rack
Rear space	Cable managers, PDUs	Coolant manifolds, quick connectors, hoses, busbar
Power per rack	Lower	One rack maker's design supports up to 120 kW per rack
Service action	Swap server, re-patch	Blind-mate server out: the manifold and power connect automatically
Fiber risk	Crowding	Crowding, pinching by moving servers, contact with hoses

The Open Compute Project's Open Rack V3 places blind-mate liquid manifolds at the rear of the rack. The quick connectors are dripless, and servers connect to coolant without manual hoses. That is good for service, but it means the rear vertical space belongs to cooling and power. Fiber should not be routed across manifold ports or in front of the busbar.

Routing Zones

1. Top of rack: trunks enter here. Bring MPO trunks in from an overhead tray, above the manifold inlets. Coolant supply lines often enter from below or the top corner, so keep fiber on the opposite side where possible.
2. Side channel: vertical runs. Use the side space not taken by the manifold for the vertical fiber path, in its own manager or duct.
3. Front: patching. Where the servers have front I/O, patch at the front and keep the rear for cooling.
4. Never: across quick connectors. A server sliding out on blind-mate rails can pinch a cord routed across its path.

Bend Radius: The Numbers

TIA-568.3-D sets the minimum bend radius for inside-plant cables with more than four fibers at 10 × the outside diameter (OD) installed with no load, and 20 × OD while pulling. Cables with two to four fibers: 25 mm installed, 50 mm under load.

Cable (example)	OD	Installed (10×)	Pulling (20×)
12-fiber MPO cord	3.0 mm	30 mm	60 mm
24-fiber MPO trunk	4.5 mm	45 mm	90 mm
144-fiber trunk	10 mm	100 mm	200 mm

ODs are examples; use the value on the cable datasheet. A tight radius in a crowded rack rear can also raise macrobend loss. Bend-insensitive fiber reduces that loss, but it does not change the cable's mechanical rating. See bend-insensitive fiber.

Cable Management Checklist

• Exact lengths. Measure each run and order cords to length. Slack loops behind a manifold block service. See how to specify trunk length.
• Small-diameter cords. Thinner cords bend tighter within the 10 × OD rule and take less space.
• Hook-and-loop, not tight ties. Tight ties pinch fibers and add loss.
• Separate from liquid. Keep connectors away from hoses and below-manifold areas. Fit dust caps on unused ports.
• Labels on both ends. Service crews in a liquid-cooled rack need to trace a cord quickly. See fiber cable labeling.
• Plan the enclosure. Count trunks and panels per rack with the enclosure sizing guide. For dense racks, see AI cluster fiber cabling.
• Test after install. A pinched cord shows as extra loss; see Tier 1 and Tier 2 testing.

Frequently Asked Questions

Where should fiber run in a liquid-cooled rack?

In its own zone: in from the top, down a side channel and patched at the front where possible. Keep it off manifold ports, quick connectors and the busbar.

What is the minimum bend radius for fiber cable?

For inside-plant cables with more than four fibers, TIA-568.3-D sets 10 × the outside diameter installed and 20 × while pulling. A 3.0 mm cord needs at least 30 mm installed.

Does bend-insensitive fiber remove the bend radius rule?

No. It lowers macrobend loss in tight bends, but the cable's mechanical bend radius still applies.

Can coolant damage fiber connectors?

Liquid and dust on an end face cause loss and damage. Open Rack V3 quick connectors are dripless, but keep connectors away from hoses and fit dust caps on unused ports.

Should I use shorter cords in liquid-cooled racks?

Yes. Exact-length cords avoid slack loops that block manifolds and server rails.
