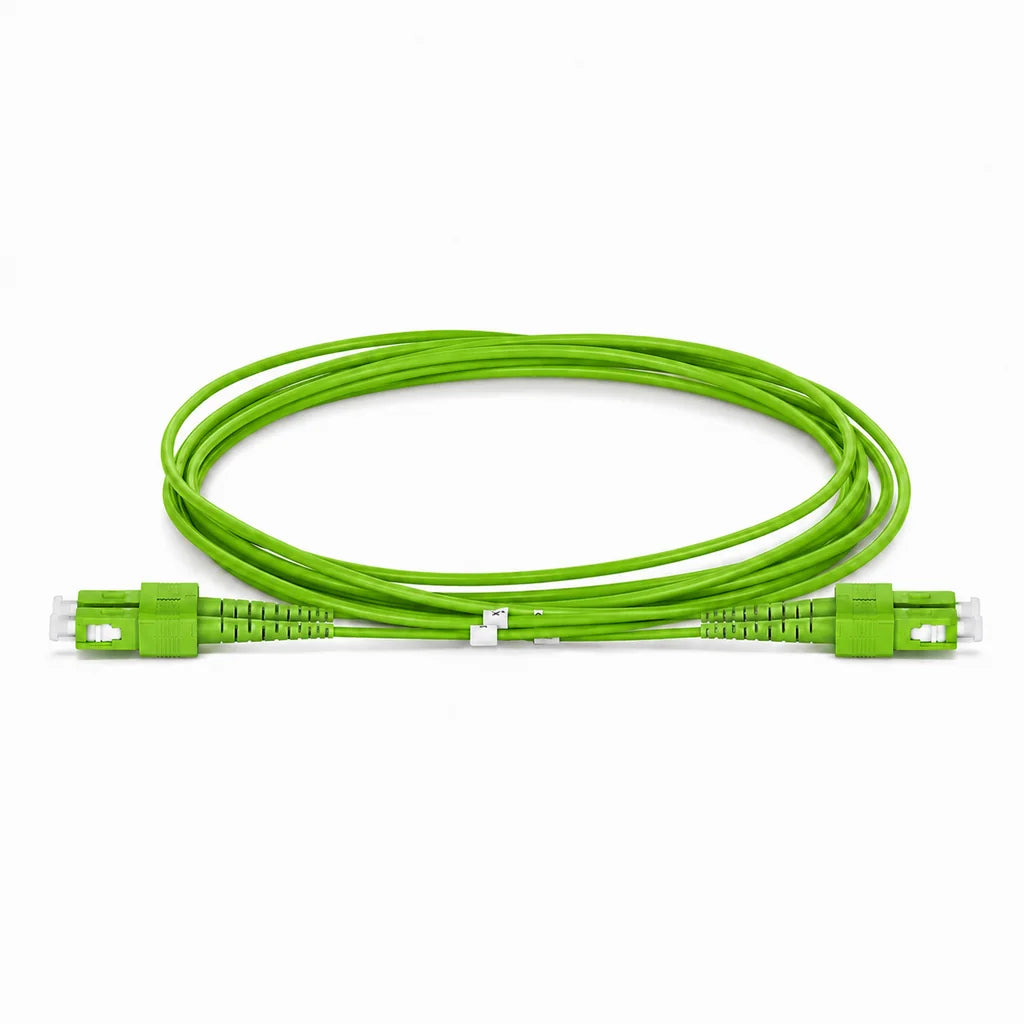

SC-SC Duplex OM5 Fiber Patch Cord
Standard options
Choose the standard SKU options, confirm the unit price, and add the product to cart when the requirement is clear.
Extra configuration
Select polarity, jacket, or order notes when required. RFQ-only options are confirmed before quotation or production.
OFNP and other project-specific jacket requirements are confirmed by RFQ before production or shipment.
$5.00 USD
- Delivery 4-12 business days after payment. Prep 1-7 days + transit 3-5 days.
- Shipping US$14.99 below US$249.90. Free standard shipping at US$249.90+.
- Direct checkout Up to US$2,000. Use RFQ for bulk, custom, or document-heavy orders.
Need a quote review?
- Custom options by RFQ
- Docs, BOM, samples, reports
- Bulk/project pricing
- Shipping route review
Product description
SC-SC Duplex OM5 Fiber Patch Cord is a duplex OM5 wideband multimode SC-SC patch cord for equipment patching, cross-connects, and structured cabling links. It keeps Connector A / Connector B, fiber count, and fiber type fixed while length, Connector A polish, and Connector B polish are selected on the product page.
Quality and performance specifications
| Connector A | SC | Connector B | SC |
|---|---|---|---|
| Fiber Mode | OM5 50/125um wideband multimode | Fiber Count | 2 fibers (Duplex) |
| Cable Weight | 14 kg/km | Wavelength | 850/953/1300nm |
| Fiber Grade | Bend-insensitive fiber | Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) | Insertion Loss | <=0.35dB |
| Return Loss | >30dB | Attenuation | 850nm <=3.5dB/km1300nm <=1.5dB/km |
| 10G Ethernet Link Length | <=550m | Tensile Strength | 100/200N |
| Connector Ferrule | Zirconia ceramic | Operating Temperature | -20 to 60C |
| Storage Temperature | -40 to 80C |
- Connector A
- SC
- Connector B
- SC
- Fiber Mode
- OM5 50/125um wideband multimode
- Fiber Count
- 2 fibers (Duplex)
- Cable Weight
- 14 kg/km
- Wavelength
- 850/953/1300nm
- Fiber Grade
- Bend-insensitive fiber
- Min. Bend Radius (Optical Fiber)
- 7.5mm
- Min. Bend Radius (Fiber Cable)
- 20/10D (Dynamic/Static)
- Insertion Loss
- <=0.35dB
- Return Loss
- >30dB
- Attenuation 850nm
- <=3.5dB/km
- Attenuation 1300nm
- <=1.5dB/km
- 10G Ethernet Link Length
- <=550m
- Tensile Strength
- 100/200N
- Connector Ferrule
- Zirconia ceramic
- Operating Temperature
- -20 to 60C
- Storage Temperature
- -40 to 80C
Compliance and document scope
REACH, UL, and IEC-related documents can be reviewed by selected product and order scope. Confirm any required document package during RFQ or order review.
