MTP-12 144F OS2 G.657.A2 Trunk Cable
Standard options
Choose the standard SKU options, confirm the unit price, and add the product to cart when the requirement is clear.
Extra configuration
Select polarity, jacket, or order notes when required. RFQ-only options are confirmed before quotation or production.
OFNP and other project-specific jacket requirements are confirmed by RFQ before production or shipment.
$981.00 USD
In stock for online checkout
- Delivery 4-14 business days after payment. Prep 1-7 days + transit 3-7 days.
- Online order Prices include applicable taxes and import duties handled by Huawellux. Shipping is US$14.99 below US$249.90 and free at US$249.90+. Contact us before ordering if your project needs Shenzhen or Taiwan dispatch confirmation.
- RFQ for bulk or custom orders Order standard SKUs online when options are clear. Bulk, custom, project, and document-required orders are quoted separately; final terms follow the confirmed quotation or contract.
Need a quote?
- Bulk / project quote
- Docs, BOM, samples, reports
- Custom requirements
- Shipping details
Product description

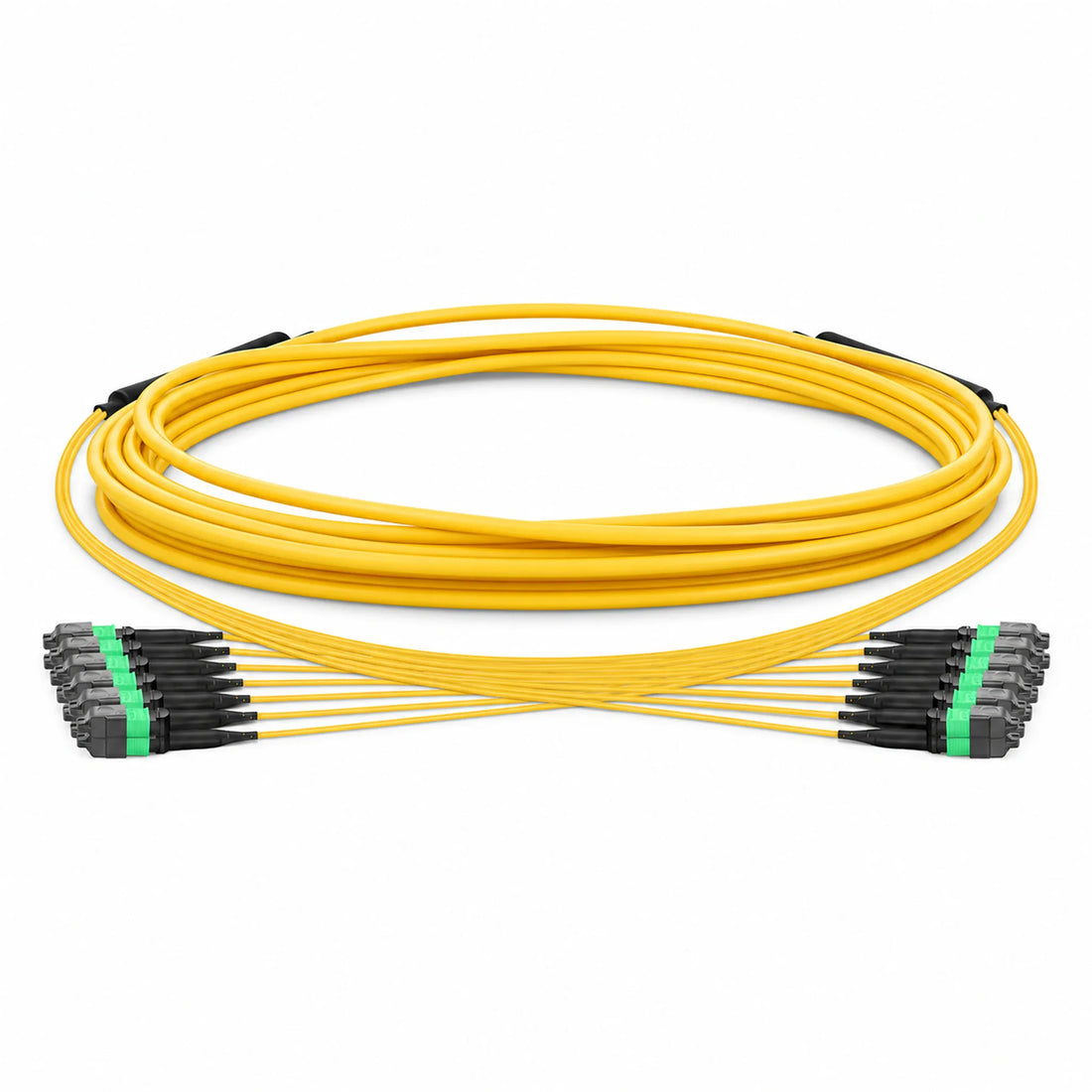

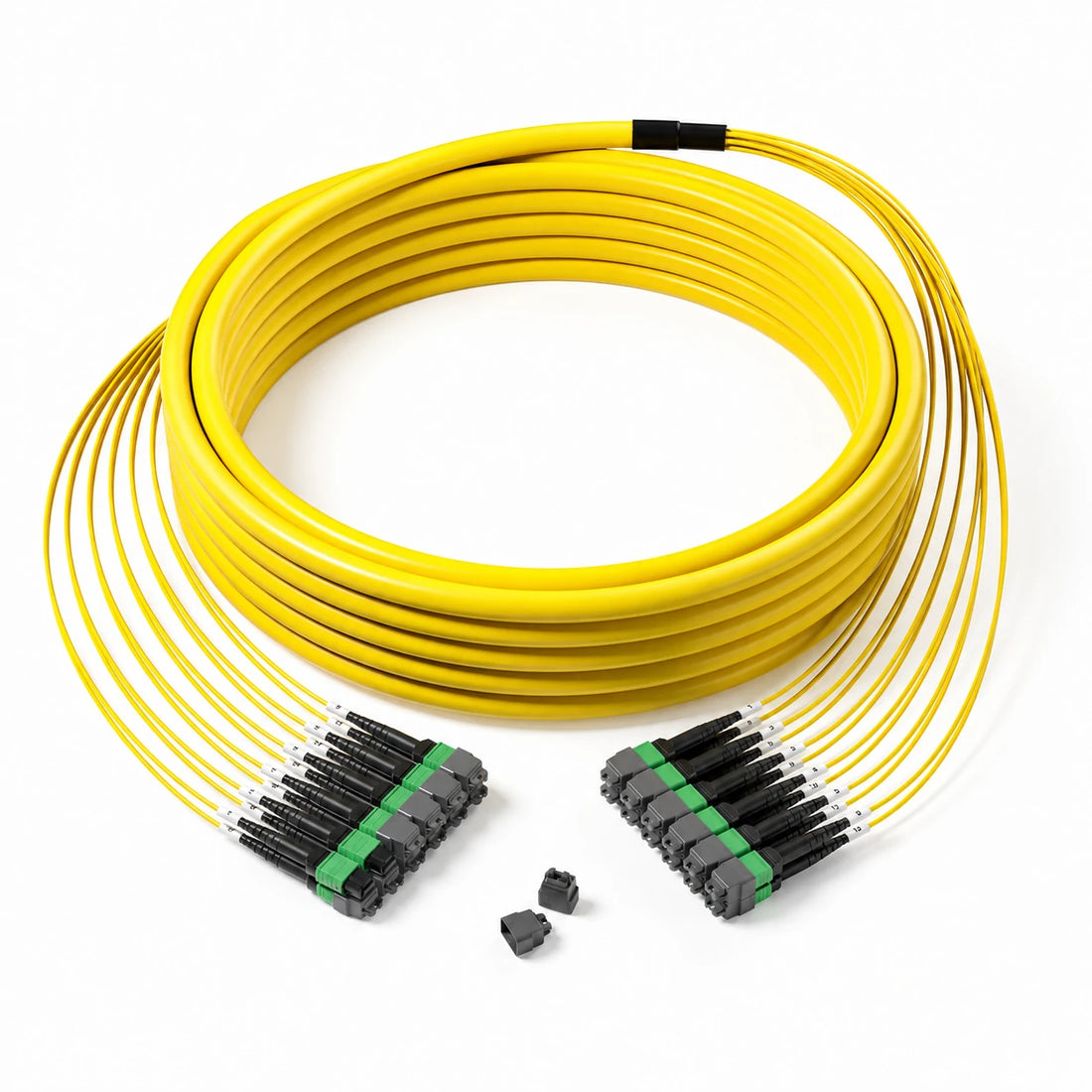

Huawellux MTP-12 144F OS2 G.657.A2 Trunk Cable is a 144-fiber OS2 G.657.A2 single-mode MTP trunk cable for rack-to-rack, zone, and backbone cabling. Standard length and A/B-end connector configuration are selected on the product page; polarity, jacket, breakout length, inspection, and test-report needs can be confirmed before order or RFQ.
Quality and performance specifications
| Trunk Interface | 12 x MTP-12 per end | Fiber Count | 144 fibers |
|---|---|---|---|
| Cable Weight | 138 kg/km | Fiber Mode | OS2 9/125um single-mode |
| Wavelength | 1310/1550nm | Glass Fiber | G.657.A2 |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Trunk Diameter | 11.0-11.2mm |
| Breakout Diameter | 2.0mm | Insertion Loss | <=0.35dB |
| Return Loss | >=65dB | Attenuation | 1310nm <=0.36dB/km1550nm <=0.22dB/km |
| Long-term Tensile Load | 300N | Short-term Tensile Load | 600N |
| Operating Temperature | OFNP: -20 to 60C | ||
| Storage Temperature | OFNP: -40 to 80C |
- Trunk Interface
- 12 x MTP-12 per end
- Fiber Count
- 144 fibers
- Cable Weight
- 138 kg/km
- Fiber Mode
- OS2 9/125um single-mode
- Wavelength
- 1310/1550nm
- Glass Fiber
- G.657.A2
- Min. Bend Radius (Optical Fiber)
- 7.5mm
- Trunk Diameter
- 11.0-11.2mm
- Breakout Diameter
- 2.0mm
- Insertion Loss
- <=0.35dB
- Return Loss
- >=65dB
- Attenuation 1310nm
- <=0.36dB/km
- Attenuation 1550nm
- <=0.22dB/km
- Long-term Tensile Load
- 300N
- Short-term Tensile Load
- 600N
- Operating Temperature
- OFNP: -20 to 60C
- Storage Temperature
- OFNP: -40 to 80C
Compliance and documents
REACH documents, UL reference materials, and applicable IEC product standards are available on request.
About HUAWELLUX
Huawellux supports standard, customized, and non-standard fiber cable assembly requirements from specification support and sample development to batch production, inspection, and delivery.
15 years OEM/ODM
Manufacturing experience since 2012, from sampling to batch production.
4 MTP/MPO lines
Daily capacity up to 5,000 connector terminations for project and repeat orders.
Project records
Production, inspection, packing, and shipment records for confirmed project orders.
Document support
Test reports, packing details, labels, drawings, and compliance references available when required.
