LC-LC Simplex OM4 Fiber Patch Cord
$2.00 USD / unit Selected options: 1 m / UPC / UPC Review configuration and ordering options
Standard configuration
Choose a configuration to order online or request a quote.
Complete the cable build
Select the options for your build.
Need OFNP or another jacket specification? Request a quote for your build.
$2.00 USD
Available for online order
Request a Quote
Worldwide inquiries for standard products, custom builds and quantity pricing.
- Express Shipping US$69.90 under US$699; free from US$699. Estimated preparation: 1–7 business days after payment confirmation; transit: 3–8 business days after dispatch. Timing varies by destination/address.
- Import charges Buyer pays import duties, import VAT/GST, destination clearance, brokerage and carrier tax-collection fees. Required sales tax or VAT/GST is shown before payment.
Product overview

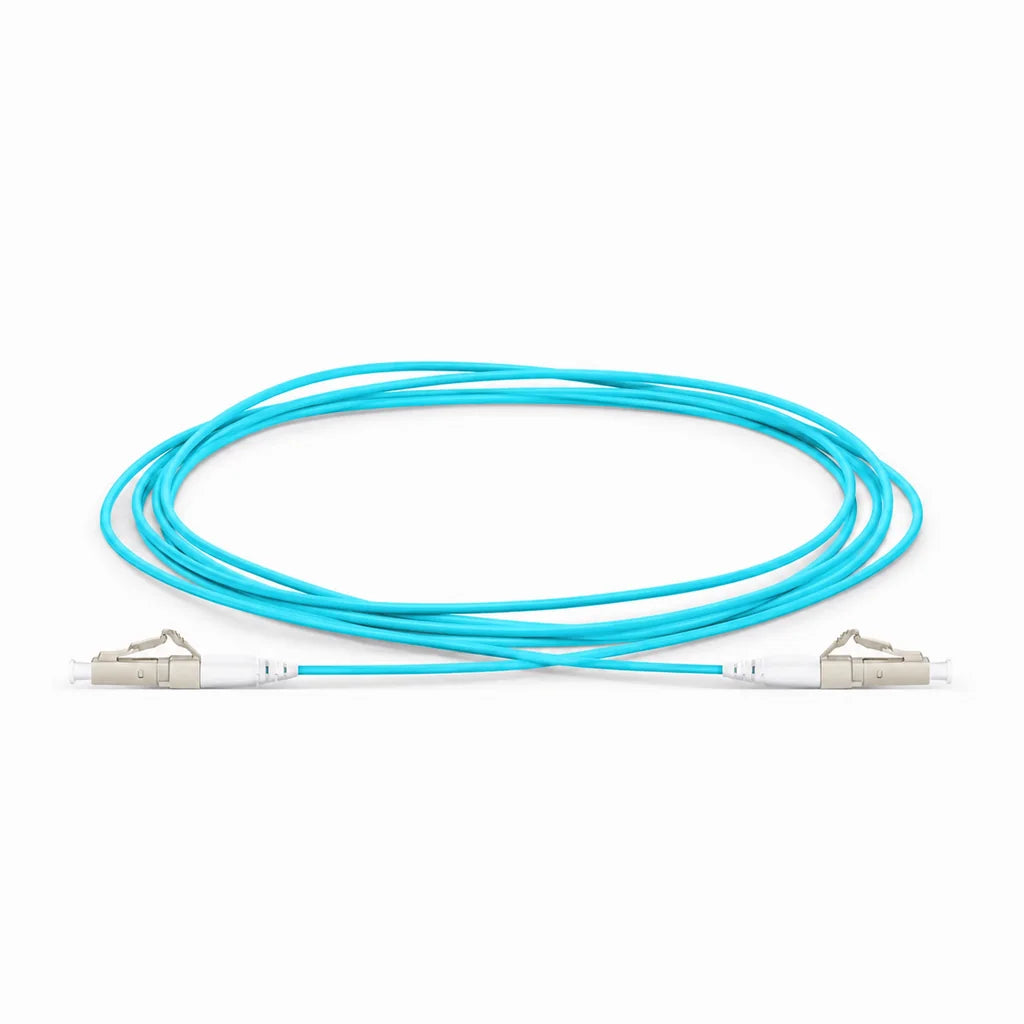

Huawellux LC-LC Simplex OM4 Fiber Patch Cord is a simplex OM4 multimode LC-LC fiber patch cord for equipment, panel, and rack patching. Standard length and A/B-end polish configuration are selected on the product page; jacket, inspection, and test-report needs can be confirmed before order or RFQ.
Product specifications
| Connector A | LC | Connector B | LC |
|---|---|---|---|
| Fiber Mode | OM4 50/125um multimode | Fiber Count | 1 fiber (Simplex) |
| Cable Weight | 6.5 kg/km | Wavelength | 850/1300nm |
| Fiber Grade | Bend-insensitive fiber | Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) | Insertion Loss | <=0.35dB |
| Return Loss | >30dB | Attenuation | 850nm <=3.5dB/km1300nm <=1.5dB/km |
| 10G Ethernet Link Length | <=550m | Tensile Strength | 100/200N |
| Connector Ferrule | Zirconia ceramic | Operating Temperature | -20 °C to 60 °C |
| Storage Temperature | -40 °C to 80 °C |
- Connector A
- LC
- Connector B
- LC
- Fiber Mode
- OM4 50/125um multimode
- Fiber Count
- 1 fiber (Simplex)
- Cable Weight
- 6.5 kg/km
- Wavelength
- 850/1300nm
- Fiber Grade
- Bend-insensitive fiber
- Min. Bend Radius (Optical Fiber)
- 7.5mm
- Min. Bend Radius (Fiber Cable)
- 20/10D (Dynamic/Static)
- Insertion Loss
- <=0.35dB
- Return Loss
- >30dB
- Attenuation 850nm
- <=3.5dB/km
- Attenuation 1300nm
- <=1.5dB/km
- 10G Ethernet Link Length
- <=550m
- Tensile Strength
- 100/200N
- Connector Ferrule
- Zirconia ceramic
- Operating Temperature
- -20 °C to 60 °C
- Storage Temperature
- -40 °C to 80 °C
Why buyers work with Huawellux
OEM/ODM manufacturing since 2012, with MTP®/MPO assemblies at the core. Our team supports cable design, sample development, production, inspection, and delivery.
- OEM/ODM Since 2012
- Cable-assembly manufacturing experience, from standard products to custom designs and repeat orders.
- Four Complete MTP®/MPO Production Lines
- Combined capacity up to 5,000 connector terminations per day. Actual output varies by connector type, fiber count, inspection scope, order mix, and production schedule.
- Cable Inspection and Test Reports
- End-face, optical-loss, polarity, and continuity testing, with 3D ferrule-geometry inspection for compatible connector builds. Your quotation specifies the tests and reports for your order.
