MTP/MPO Trunk Cable Planning for AI Clusters and Data Centers
Share
AI data-center trunk planning becomes difficult when the project team treats every fiber segment as “just an MPO cable.” The physical layer only stays serviceable when trunk, patch, and harness roles are separated early and the RFQ captures the parts of the route that are expensive to correct later.
This guide is for buyers and integrators who need a trunk review that sounds like a real project conversation rather than a generic overview of high-density fiber.
Use route layers, not just connector names
| Network area | Typical route job | Current Huawellux fit |
|---|---|---|
| Rack or cabinet local links | Nearby same-connector patching or local interface alignment | MTP/MPO Fiber Patch Cables |
| Row or pod backbone | Planned high-count transport between cabinets, rows, or patching zones | MTP/MPO Trunk Cables |
| Breakout or transition points | MTP/MPO side to LC branches or matching multiple MPO/MTP branch ends | MTP/MPO Harness Cables |
| Legacy or duplex equipment links | LC/SC patching paths | LC/SC Fiber Patch Cords |
This matters because a trunk article should not blur the role of the branch path. In the current Huawellux harness structure, the branch side is not a generic “LC or SC branch” bucket. It is LC branches or matching multiple MPO/MTP branch ends.
Why AI racks make trunk decisions harder to fix later
Dense AI racks compress more optics, more patching, and more future change into a smaller physical footprint. That raises the cost of getting the backbone wrong. An ordinary patching mistake can be replaced locally; a wrong trunk decision usually forces pathway, label, and turn-up rework.
The practical lesson is that trunk review should happen before the buyer finalizes labels, route lengths, branch assumptions, and front-end module choices.
Fiber mode should be reviewed with route role
| Fiber mode | Use when | What to confirm |
|---|---|---|
| OM4 | Mainstream multimode AI or data-center short-reach paths | Optics plan and actual route length |
| OM5 | Projects whose multimode design really calls for it | Whether the optics and upgrade plan benefit from OM5 specifically |
| OS2 | Single-mode or longer backbone routes | End-face treatment and full-path interface compatibility |
Use current trunk count logic, not a generic MPO ladder

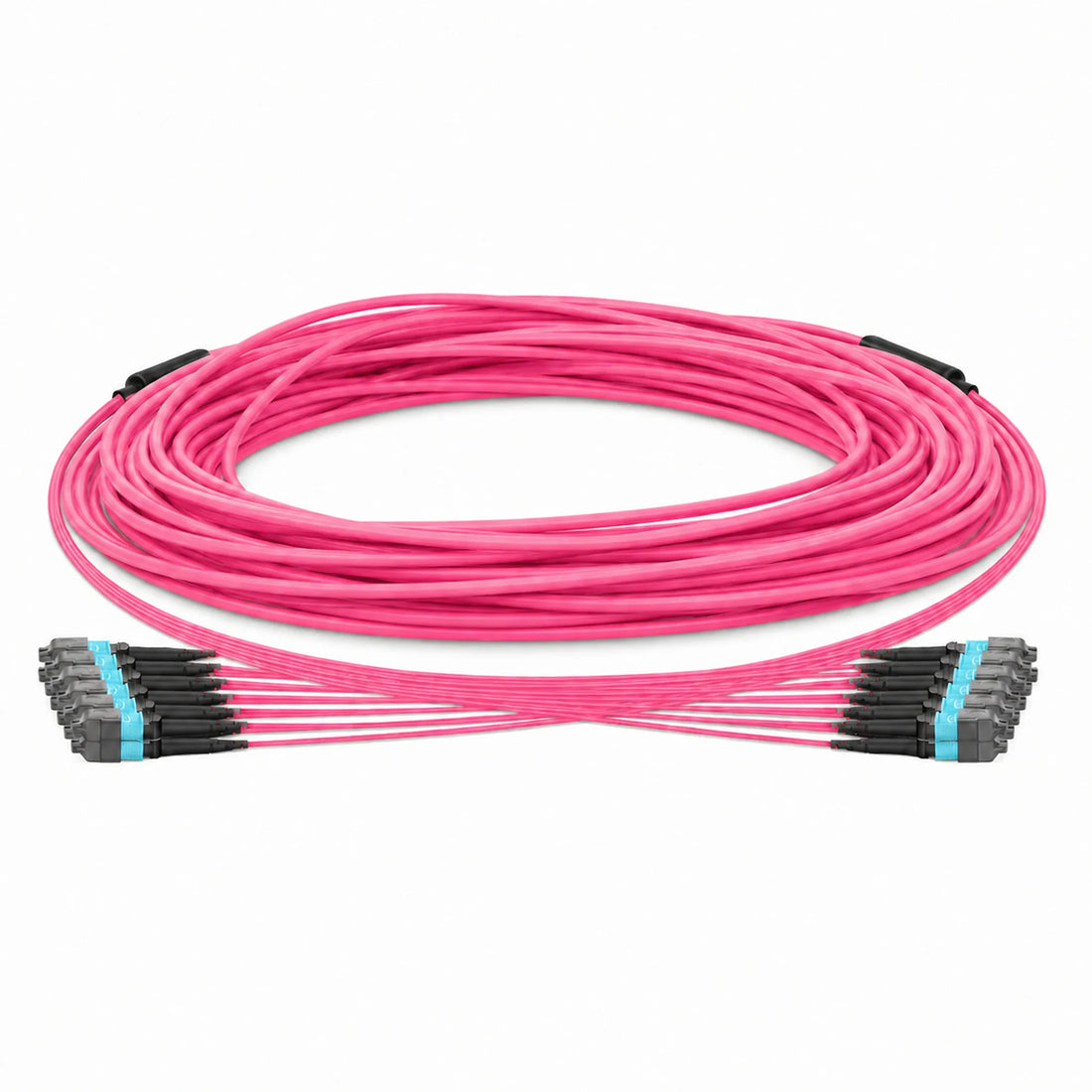

The current Huawellux trunk family is built around 48F, 96F, and 144F. Those are backbone counts, not just bigger patch-cable numbers. They should be reviewed together with cabinet density, panel population, and planned growth rather than as an isolated optics preference.
- 48F: structured backbone capacity without moving immediately to a larger aggregation step.
- 96F: more panel population or more future headroom in the same route family.
- 144F: high-density backbone planning where the route is stable enough to justify larger pre-terminated capacity.
What buyers usually under-specify in AI trunk RFQs
- Whether the route is pure trunk or includes harness transitions nearby.
- Whether front-end hardware uses direct adapter presentation or cassette-based conversion.
- Whether the trunk will be packed for pathway pull, staged rack turn-up, or grouped deployment.
- Whether labels need to follow cabinet, row, or port-map conventions from the drawings.
Stronger RFQ checklist
- Application and route role
- Fiber mode and trunk count
- MTP or MPO connector system
- A-end and B-end polish/gender
- Polarity or drawing-based channel map
- Length, tolerance, and installation sequence
- Whether cassette, direct panel, or harness transitions are part of the surrounding route
- Labels, packing, and test-record expectations
Related Huawellux paths: MTP/MPO Trunk Cables, MTP/MPO Fiber Patch Cables, MTP/MPO Breakout & Harness Cables, MTP/MPO Fiber Count Guide, and Custom MTP/MPO Cable Assemblies: RFQ Checklist.
