MTP/MPO Fiber Count Guide by Product Family: Patch, Trunk, and Harness Counts

Fiber count should not be discussed as one universal MTP/MPO number ladder. In the Huawellux catalog, patch cables, trunk cables, and harness cables use different fiber-count structures because they solve different routing tasks.

That means a professional buyer should choose the product family first and the count second. If the article jumps straight from 8F to 144F without separating patch, trunk, and harness logic, it becomes too generic to guide a real order.

Start with the live Huawellux count structure

Product family	Current live count logic	Main use
MTP/MPO Fiber Patch Cables	8F, 12F, 16F, 24F	Same-connector patching between MTP/MPO interfaces.
MTP/MPO Trunk Cables	48F, 96F, 144F	High-count planned backbone routes built from 12-fiber connection units.
MTP/MPO Harness Cables	8F, 12F	MTP/MPO A-end to LC branches or to matching multiple MPO/MTP branch ends.

So the right question is not “what is the biggest fiber count available?” The right question is “which count fits the cable family and route role?”

Patch cable counts: 8F, 12F, 16F, and 24F

Patch cable counts should be chosen from the interface and patching task. These products keep the same connector family at both ends, so the count needs to match the actual equipment or patch-panel path.

• 8F: useful when the interface and active-lane plan are built around 8 fibers.
• 12F: a common planning unit when the system standardizes around 12-fiber structures.
• 16F: use when the interface specifically requires 16-fiber alignment; do not choose it by assumption.
• 24F: use when the patching task benefits from higher same-connector density without stepping into trunk-cable territory.

The mistake here is buying a larger count just because it sounds more capable. If the installed path does not use those fibers cleanly, the count creates labeling and maintenance overhead instead of value.

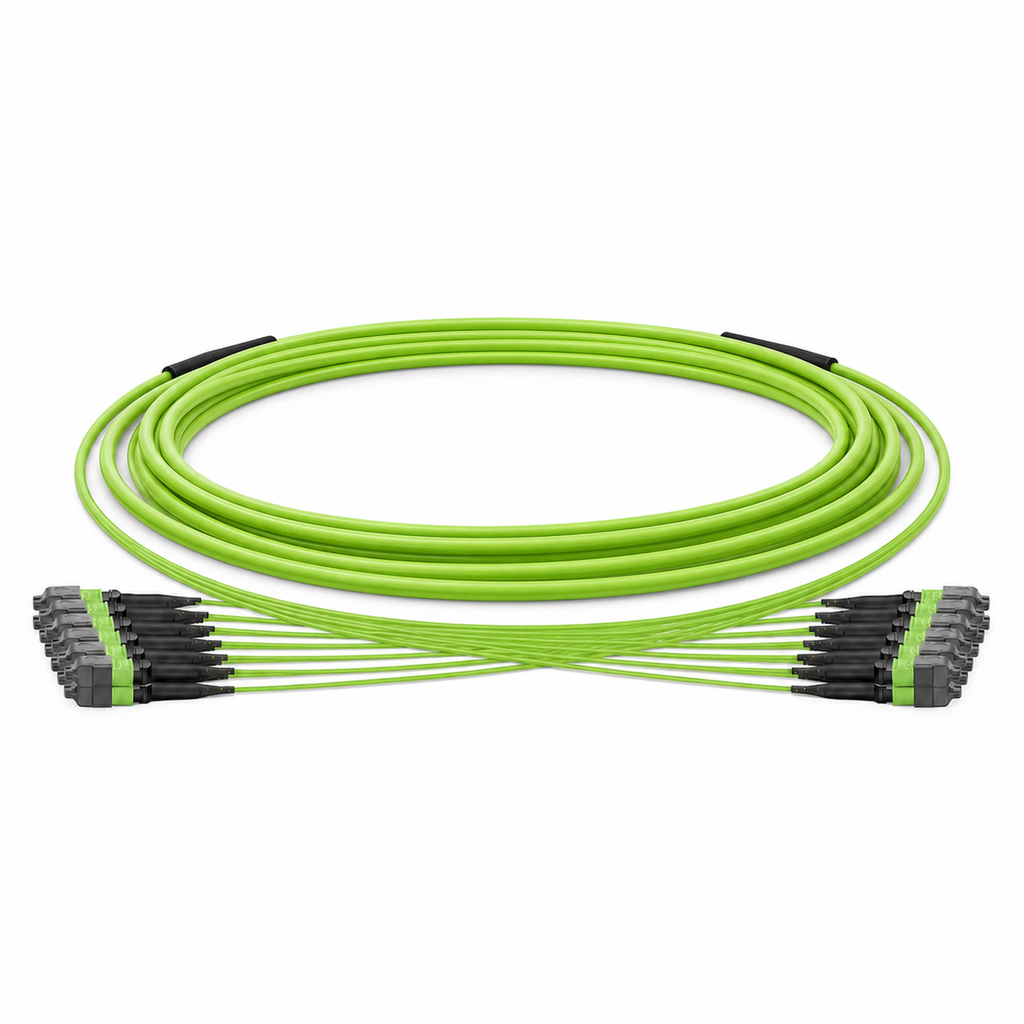

Trunk cable counts: 48F, 96F, and 144F

Trunk cable counts should be chosen from the route capacity, not from transceiver preference alone. The current Huawellux trunk family is built around 48F, 96F, and 144F backbone assemblies.

• 48F: a controlled high-density route where the backbone needs clear structure but not maximum aggregation.
• 96F: use when the route is serving more panel positions or more planned growth.
• 144F: use when the backbone is intentionally sized for larger distribution density and the path is stable enough to justify high-count pre-termination.

These are backbone decisions. They should be reviewed together with pathway capacity, cabinet layout, panel population, and future phase planning.

Harness cable counts: 8F and 12F only

The current Huawellux harness family does not follow the trunk-family count logic. It is built around 8F and 12F because the route role is different: one MTP/MPO side fans out into LC branches or into multiple matching MPO/MTP branch ends.

For harnesses, the count must be reviewed together with the branch structure. A count decision without the branch-end logic is incomplete.

Harness path	What the count affects	What else must be reviewed
MTP/MPO to LC harness	How many fibers are broken out toward LC-side patching or equipment.	Connector A polish and gender, Connector B polish, labels, and branch handling.
MTP/MPO to multiple MPO/MTP branch ends	How the multi-fiber route is divided into branch groups.	Connector-system matching, branch-end polish, branch-end gender, and map clarity.

Common mistakes

1. Talking about trunk counts and harness counts as if they belong to one product ladder.
2. Choosing a patch-cable count without checking the actual interface requirement.
3. Choosing a trunk count without checking route stability and growth headroom.
4. Choosing a harness count without reviewing the branch-end structure.

RFQ checklist

• Product family: patch, trunk, or harness
• Required fiber count within that family
• Fiber mode: OS2 G.657.A1, OS2 G.657.A2, OM4, or OM5 as applicable
• Connector system: MTP or MPO
• For patch and trunk: A-end/B-end polish and gender
• For harness: LC branch or matching multiple MPO/MTP branch ends
• Polarity or route map requirement
