MTP/MPO Breakout Harness vs Trunk Cables: Practical Selection and RFQ Guide

Choose a trunk cable for a backbone route between panels, cabinets or distribution zones. Choose a breakout harness when one MTP/MPO end needs to fan out into LC or multiple MTP/MPO branch ends. Start with the connection layout, then confirm the fiber path, connector details and lengths against the equipment documentation.

Harness or trunk: which fits the route?

Decision	Breakout harness	Trunk cable
Connection layout	One multi-fiber end divides into branch ends.	A multi-fiber route connects distribution points.
What to specify	Branch count, connector on each branch, fiber mapping, branch labels and individual lengths.	Total fiber count, termination layout at both ends, route length and destination labels.
What to check with adjacent hardware	Each branch must match its intended port or adapter.	Both ends must match the panel, cassette or equipment arrangement.

Length alone does not distinguish the two. A short cable can still be a trunk; the branching arrangement determines whether a harness is needed. If the cable is a direct patch connection, see the trunk vs patch cable guide.

Match the harness to the actual port plan

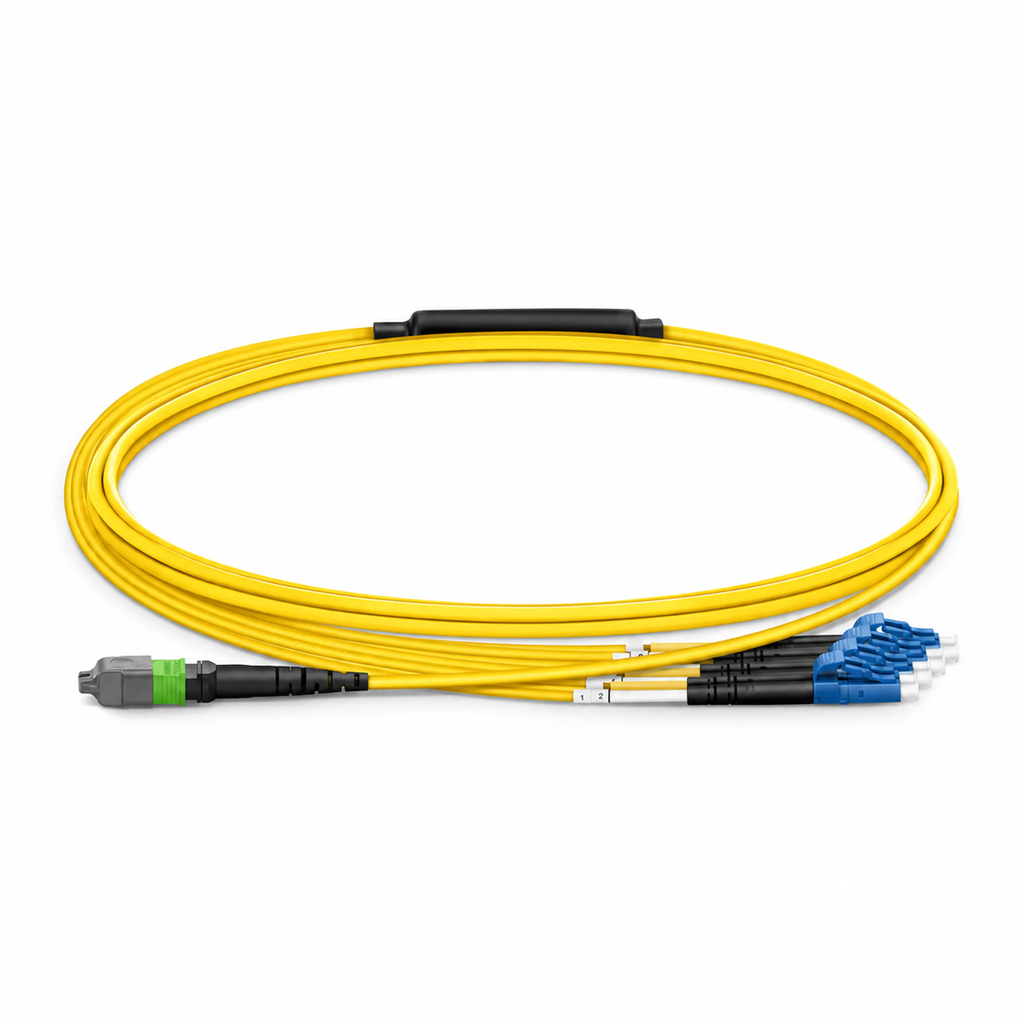

The Huawellux harness collection includes 8F and 12F assemblies with LC, MTP-4 or MPO-4 branch arrangements. Available configurations depend on the individual product; these connector and fiber choices are not interchangeable.

• Main connector: identify MTP or MPO, the specified fiber arrangement, pinned or unpinned construction, and end-face polish.
• Branch connectors: specify the connector, polish and any required pin configuration for every branch. For LC ends, state the required simplex or duplex presentation.
• Fiber type: match OS2, OM4 or OM5 to the selected product and the installed optical system. Record a specific fiber designation only when required by the project and supported by that configuration.
• Channel mapping: attach the equipment port plan and any intervening cassette or panel documentation. Confirm the path through the complete connection, rather than choosing a polarity letter from the cable name.

As Fluke Networks explains in its MPO polarity guide, correct polarity connects a transmitter to its corresponding receiver, and male MPO connectors have alignment pins while female connectors do not. Use the mating equipment specification to determine the required connector configuration; connector color or a product photograph is not a sufficient specification.

Attach a branch mapping table to the RFQ

Use one row per branch and attach a drawing revision. The table below is a blank planning template, not a recommended pinout. For a multi-fiber branch, provide a separate fiber-position map covering every occupied position.

Field	What to enter for each branch
Branch ID	Your label, matching the drawing and destination port list.
Main-end fiber positions	The positions assigned to this branch, with the connector viewing orientation defined.
Branch-end mapping	Branch fiber positions or LC terminal labels, including the intended Tx/Rx path where applicable.
Destination	Rack, panel or equipment reference and exact port identifier.
Branch length	Required length and measurement reference points, shown on the drawing.
Drawing reference	Document number and revision used for this request.

State the main cable length separately and mark both measurement reference points. If branches have unequal lengths, list each one. A single overall length does not show whether every branch can reach its assigned port.

Send a configuration that can be checked

An RFQ that only says “12F MPO cable” leaves the route, branch arrangement and connector configuration unresolved. Include the following with your port map:

• Selected product or required route role, total fiber count and fiber type.
• Connector details at both ends, branch count and complete fiber mapping.
• Main and branch lengths with measurement references, plus label text.
• Quantity, delivery destination and requested delivery date.
• Any required inspection records, packaging instructions or drawing approval before production.

For a repeat order, include the previous approved drawing or order reference and identify any changes. If a connector or mapping detail is unresolved, mark it for confirmation instead of copying a generic example. Requested documentation and delivery dates remain subject to quotation confirmation.

When the route needs a trunk

If the requirement is a backbone between cabinets or distribution points, review the Huawellux trunk cable collection. Specify both end arrangements, fiber count, mode, polarity, route length and labels. Include the cassette or panel details when these form part of the channel; a matching connector format alone does not establish compatibility.

Have a layout ready? Request project pricing with your BOM and branch map. If you are still comparing connection types, browse the MTP/MPO patch cable collection alongside the harness and trunk options.
