High-Density Fiber Cabling for Data Centers: Trunks, Patch Cables, Harnesses, and Rack Hardware
Share
High-density fiber cabling is a route system, not a single product family. Technical buyers do not need more generic talk about “higher density.” They need to know which product family belongs at which part of the route and how the front-end hardware should match the backbone plan.
For Huawellux, the current live structure already gives a workable decision model if the article follows it closely.
Build the route from backbone to front-end access
| Route layer | Current Huawellux fit | What the buyer should decide |
|---|---|---|
| Backbone route | MTP/MPO Trunk Cables | 48F, 96F, or 144F; fiber mode; A-end/B-end polish and gender; route length. |
| Same-connector patching | MTP/MPO Fiber Patch Cables | 8F, 12F, 16F, or 24F; patch-side interface count; polish and gender. |
| Breakout transition | MTP/MPO Harness Cables | 8F or 12F; LC branch path or matching multiple MPO/MTP branch ends. |
| Trunk-to-LC module conversion | MTP/MPO Fiber Cassettes | MTP to LC or MPO to LC; 12F or 24F; OS2/OM4/OM5. |
| Direct port presentation | Fiber Adapter Panels | MTP 6-port, MPO 6-port, LC duplex 12-port, or Blank panel. |

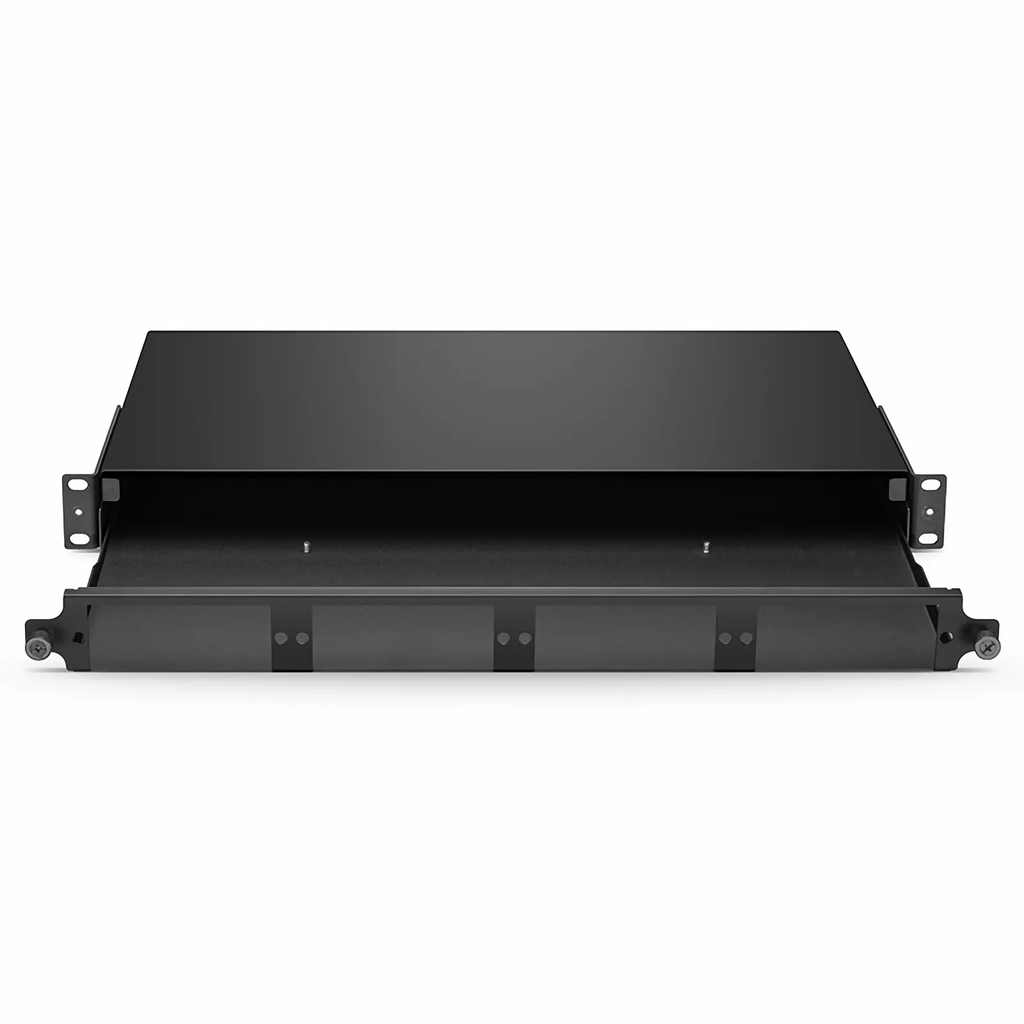

| Cabinet hardware frame | Rack Mount Fiber Enclosures | Fixed vs sliding access; 1U/144F, 2U/288F, or 4U/576F. |
If the route is planned in this order, the physical layer becomes much easier to quote and maintain.
Do not use one cable family for every job
Many weak data-center guides fail because they talk about trunks, patch cables, and harnesses as if they were only different lengths of the same idea. In practice:
- Trunk cables carry planned backbone density.
- Patch cables handle same-connector local patching.
- Harness cables solve branch presentation and fanout.
When a buyer tries to force one family to do another family’s job, the result is usually installation friction, labeling confusion, or later troubleshooting.
Use current cassette and panel logic, not generic front-hardware language
The live Huawellux front-end hardware is specific enough to support expert guidance:
- Cassettes perform MTP/MPO-to-LC conversion.
- Adapter panels present direct MTP, MPO, or LC duplex access, or reserve a blank position.
- Enclosures should be reviewed together with these module choices rather than as empty chassis.
This is more useful to a technical buyer than a broad article that lists every possible panel or enclosure type in the industry.
Where high-density projects usually fail
- The trunk count is chosen before the route role is clarified.
- The front-end hardware is chosen without checking whether the cabinet needs conversion or direct presentation.
- Harness paths are described too loosely, especially at the branch side.
- Polarity, gender, and inspection scope are left to later clarification instead of the original RFQ.
RFQ package for a high-density route
- Backbone segments: count, mode, connector system, polish, gender, length
- Patch segments: interface count, connector system, polish, gender
- Harness segments: 8F or 12F, LC branch or multiple MPO/MTP branch-end logic
- Front hardware: cassette type, panel type, blank positions, and enclosure type
- Labeling, test records, and packing sequence by route layer
Related Huawellux paths: MTP/MPO Trunk Cables, MTP/MPO Fiber Patch Cables, MTP/MPO Breakout & Harness Cables, MTP/MPO Fiber Cassettes, Fiber Adapter Panels, and Rack Mount Fiber Enclosures.
